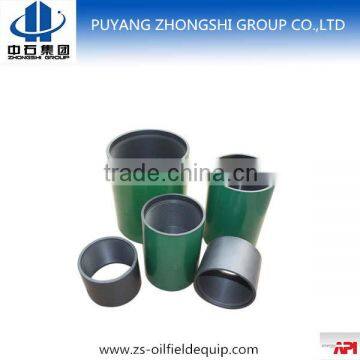

API 5CT Short Thread Casing Coupling, Long Thread Casing Coupling, Buttress Connection Casing Coupling
1) Material: Steel, Stainless Steel or Alloy
2) Connection: STC, LTC, BTC for casing coupling
3) Standard: API 5CT
4) API and ISO certified
5) Grade: J-55, C-75, L-80, N-80, C-95, P-110
6) Application
A short length of pipe used to connect two joints of casing. A casing coupling has internal threads (female threadform) machined to match the external threads (male threadform) of the long joints of casing. The two joints of casing are threaded into opposite ends of the casing coupling.
7) Parameter
| Descriptions and size | Type of Therad | O.D*L | Weight | |
| (mm) | (kg) | |||
| Tubing Coupling | 1.05 | NUE | 33.35*80.96 | 0.23 |
| 1.05 | EUE | 42.16*82.55 | 0.38 | |
| 1.315 | NUE | 42.16*82.55 | 0.38 | |
| 1.315 | EUE | 48.26*88.90 | 0.57 | |
| 1.66 | NUE | 52.17*88.90 | 0.59 | |
| 1.66 | EUE | 58.88*95.25 | 0.68 | |
| 1.9 | NUE | 55.88*95.25 | 0.56 | |
| 1.9 | EUE | 63.50*98.42 | 0.84 | |
| 2-3/8" | NUE | 73.02*107.95 | 1.28 | |
| 2-3/8" | EUE | 77.80*132.82 | 1.55 | |
| 2-7/8" | NUE | 88.90*130.18 | 2.34 | |
| 2-7/8" | EUE | 93.17*133.35 | 2.4 | |
| 3-1/2" | NUE | 107.95*142.88 | 3.71 | |
| 3-1/2" | EUE | 114.30*146.05 | 4.1 | |
| 4" | NUE | 120.65*146.05 | 4.35 | |
| 4" | EUE | 127.00*152.40 | 4.82 | |
| 4-1/2" | NUE | 132.08*155.58 | 4.89 | |
| 4-1/2" | EUE | 141.30*158.75 | 6.05 | |
| Casing Coupling | 4-1/2" | STC | 127.00*158.75 | 5.23 |
| 4-1/2" | LTC | 127.00*177.80 | 4.15 | |
| 4-1/2" | BTC | 127.00*225.42 | 4.55 | |
| 5" | STC | 141.30*165.10 | 4.66 | |
| 5" | LTC | 141.30*196.85 | 5.75 | |
| 5" | BTC | 141.30*231.78 | 5.85 | |
| 5-1/2" | STC | 153.67*171.45 | 5.23 | |
| 5-1/2" | LTC | 153.67*203.20 | 6.42 | |
| 5-1/2" | BTC | 153.67*234.95 | 6.36 | |
| 6-5/8" | STC | 187.71*184.15 | 9.12 | |
| 6-5/8" | LTC | 187.71*222.25 | 11.34 | |
| 6-5/8" | BTC | 187.71*244.48 | 11.01 | |
| 7" | STC | 194.46*184.15 | 8.39 | |
| 7" | LTC | 194.46*228.60 | 10.83 | |
| 7" | BTC | 194.46*254.00 | 10.54 | |
| 7-5/8" | STC | 215.90*190.50 | 12.3 | |
| 7-5/8" | LTC | 215.90*234.95 | 15.63 | |
| 7-5/8" | BTC | 215.90*263.52 | 15.82 | |
| 8-5/8" | STC | 244.48*196.85 | 16.23 | |
| 8-5/8" | LTC | 244.48*254.00 | 21.67 | |
| 8-5/8" | BTC | 244.48*269.88 | 20.86 | |
| 9-5/8" | STC | 269.88*196.85 | 18.03 | |
| 9-5/8" | LTC | 269.88*266.70 | 25.45 | |
| 9-5/8" | BTC | 269.88*269.88 | 23.16 | |
| 10-3/4" | STC | 298.45*203.20 | 20.78 | |
| 10-3/4" | BTC | 298.45*269.88 | 25.74 | |
| 11-3/4' | STC | 323.85*203.20 | 22.64 | |
| 11-3/4' | BTC | 323.85*269.88 | 28.03 | |
| 13-3/8" | STC | 365.12*203.20 | 25.66 | |
| 13-3/8" | BTC | 365.12*269.88 | 31.77 | |
| 16" | STC | 431.80*228.6 | 34.91 | |
| 16" | BTC | 431.80*269.88 | 40.28 | |
| 18-5/8" | STC | 508.00*228.60 | 51.01 | |
| 18-5/8" | BTC | 508.00*269.88 | 62.68 | |
| 20" | STC | 533.40*228.6 | 43.42 | |
| 20" | LTC | 533.4*292.10 | 57.04 | |
| 20" | BTC | 533.40*269.88 | 50.1 | |
Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.
We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..
Our products mainly include:
1. Casing Centralizer 2. Float Collar & Float Shoe
3. Cementing Plug 4. Cementing Head
5. Cement Basket 6. Tubing Pump / Rod Pump
7. Valve Ball & seat 8. Casing / Tubing Pipe and Coupling
9. Stage Collar 10. Pumping Unit
11. Air Blaster 12. Sucker Rod
Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
