API Certificated Spiral Glider Centralizer
- China main port
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Henan, China | Brand Name | Zhongshi | |
| Model Number | Rigid/Nylon/Cast Aluminum/Idler Wheel | Type | Stabilizer | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Other, Carbon Steel, Cast Aluminum | Processing Type | Casting | |
| Use | Well Drilling |
Product Description
API Certificated spiral glider centralizer
Product name: casing centralizer
Product classification: Bow spring centralizer, Rigid centralizer, Cast aluminum centralizer
Product overview:
Casing centralizer is one of the necessary conventional casing accessories, upon well operations completion, the rational use of casing centralizer can play the role of:
Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;
Making casing centralizer centered within the well;
Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;
Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.
Bow spring centralizer
1. These Centralizers are designed for High Restoring Force and Low Starting Force for centralizing the casing pipe in a Vertical, Horizontal and Deviated well
2. Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over
3. Spec and performance index of bow spring casing centralizer meet API Spec 10D. The woven centralizer is connected by pin when in use, the unfolded centralizer can be stacked flatly for convenient storage and transportation.
Rigid centralizer
Rigid casing centralizer is used in deviated wells and horizontal wells. There are several blades on the rigid centralizer that can keep casing from contacting the wellbore wall
Roller rigid centralizer which is most suitable for highly deviated wells and horizontal wells has two or three rollers in each blade. It can change slipping friction to rolling friction, so the Roller rigid centralizer greatly reduces the friction between casing and wellbore wall and let casing go to desired position smoothly

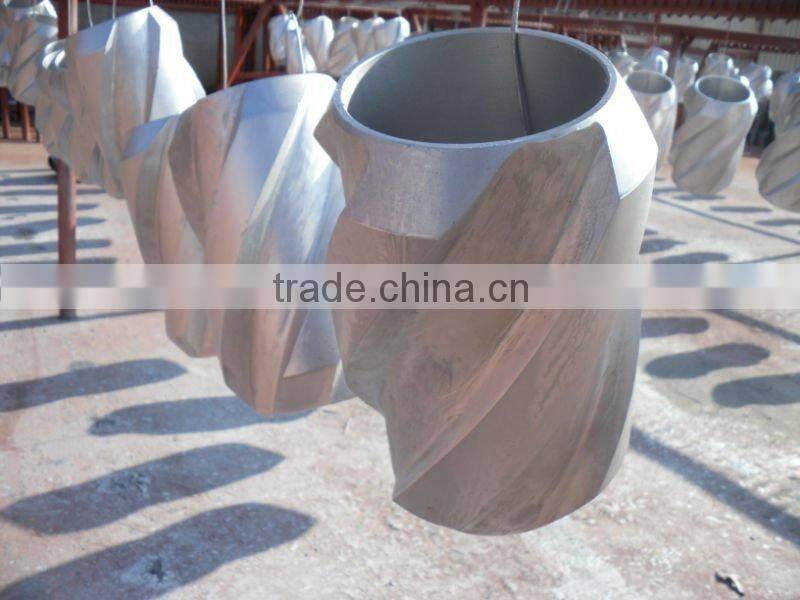

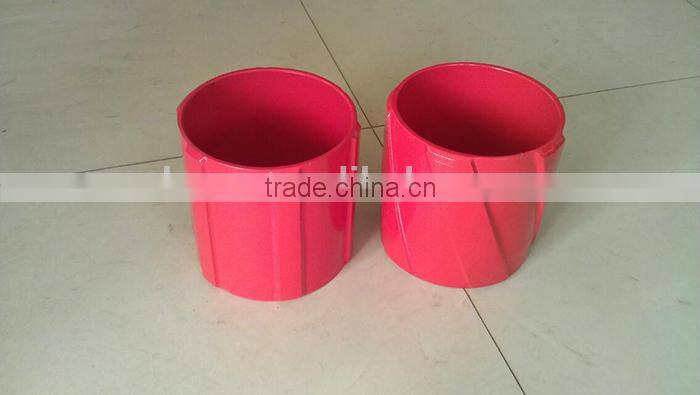

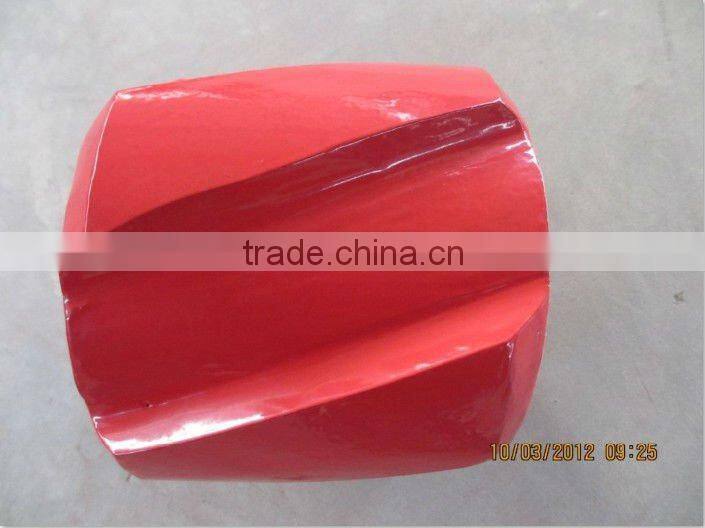

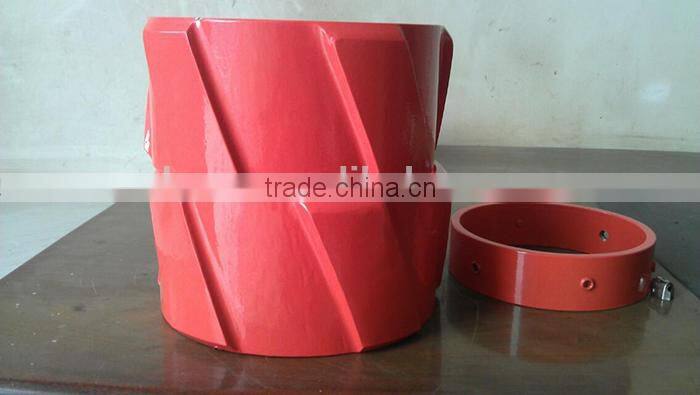

The smooth spiral 360 overlap solid vane design of centralizers provide max wall contact will not damage wellhead equipment, has high impact and shock resistance comand fluid swirl. The 30slope from the body to the height of the vane will eliminate scraping, or digging into the formation.
The solid cast aluminum centralizers bine with high tensile and yield strengths
Casing Centralizer Technical Parameters:
No. | Type | Inside diameter (mm) | Height (mm) | Total height (mm) | Largest diameter (mm) |
1 | 5“*12-1/4” | 128-131 | 105 | 690 | 330 |
2 | 5”*20” | 128-131 | 105 | 720 | 535 |
3 | 5-1/2”*7” | 142-148 | 55 | 650 | 215 |
4 | 5-1/2”*8-1/2” | 142-148 | 55 | 650 | 225 |
5 | 6”*8-1/2” | 156-158 | 55 | 650 | 235 |
6 | 7”*8-1/2” | 181-186 | 55 | 650 | 235 |
7 | 7”*9-5/8” | 181-186 | 55 | 650 | 255 |
8 | 7-5/8”*9-5/8” | 197-201 | 55 | 650 | 275 |
9 | 9-5/8”*12-1/4” | 250-255 | 55 | 650 | 330 |
10 | 13-3/8”*17-1/2” | 342-347 | 55 | 650 | 450 |
11 | 5-1/2”*8-1/2” | 142-148 | 110 | 650 | 225 |
12 | 7”*9-5/8” | 181-186 | 110 | 650 | 255 |
13 | 7”*8-1/2” | 181-186 | 110 | 650 | 235 |
14 | 5”*6-1/2” | 128-131 | 110 | 650 | 175 |
15 | 7-5/8”*9-1/2” | 196-200 | 110 | 650 | 250 |
16 | 10-3/4”*12-1/4” | 274-276 | 110 | 650 | 330 |
17 | 5”*6-1/4” | 130-132 | 110 | 650 | 170 |
18 | 9-5/8”*12-1/4” | 250-255 | 110 | 650 | 330 |
19 | 13-3/8”*17-1/2” | 342-347 | 110 | 650 | 450 |
20 | 5-1/2”*8-1/2” | 142-148 | 55 | 650 | 225 |
