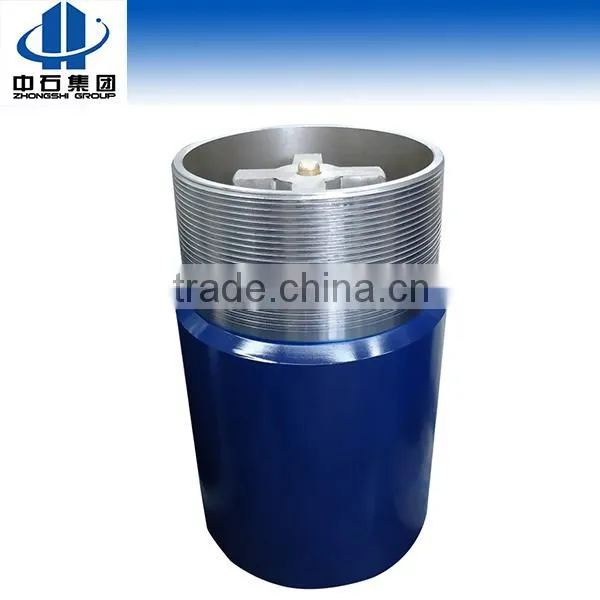

Help CenterAPI 5CT Oilwell Differential Fill-up Float Collars and Float Shoe
Related Products
-
API 5CT China Oil Tools Floating Equipment Float Shoe and Float Collar at Factory PriceUS$ 200 - 3,000MOQ: 10 Sets -
API China Oil Tools Casing Accessories Float ShoeUS$ 200 - 3,000MOQ: 10 Sets
-
API China Oil Tools Casing Accessories Float Shoe for CementUS$ 200 - 3,000MOQ: 10 Sets
-
China Oil Tools Integral Single Plug Cementing Head With Factory Competitive PriceUS$ 2,000 - 5,000MOQ: 1 Set
-
China Oil Tools Alloy Steel 4145H Casing Cementing Head at China Factory PriceUS$ 2,000 - 5,000MOQ: 1 Set
Specifications
1, API 5CT
2, BTC,LTC,STC
3. N80,K55,L80,J55
4. 4"-20"

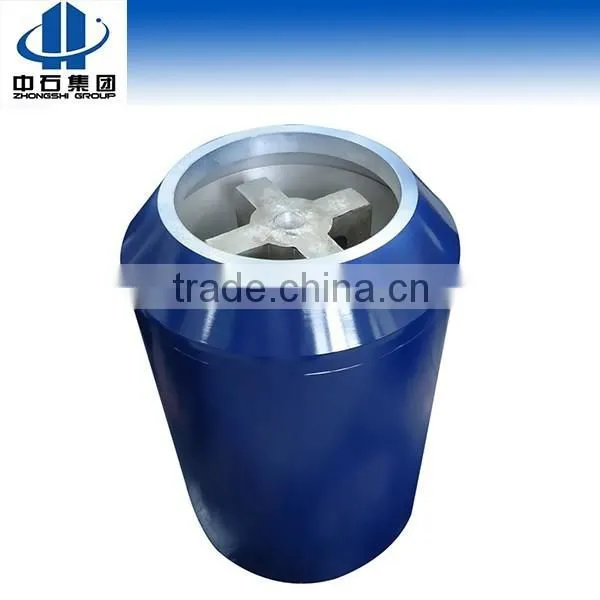

Features of the Float collar:

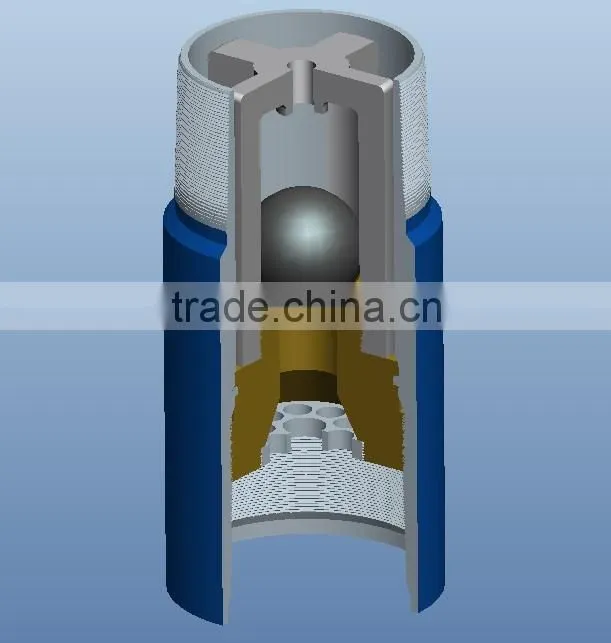

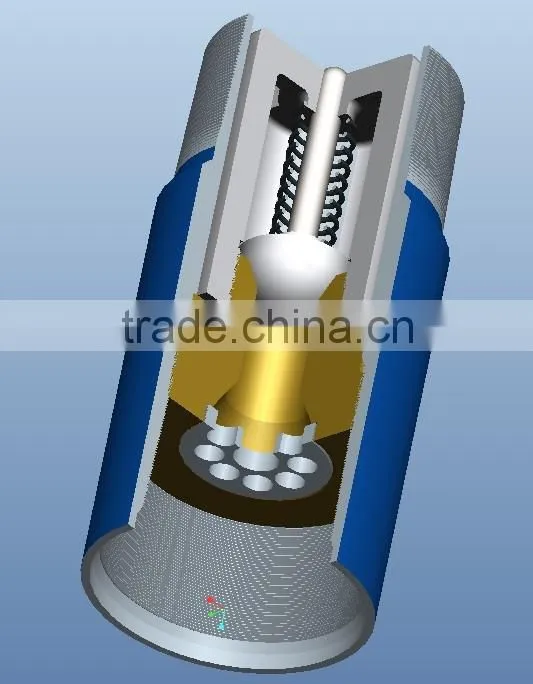

1,Float collar & float shoe is the common accessories of the casing, which is connected to the bottom of the casing, so it can guide the casing go into the well successfully.

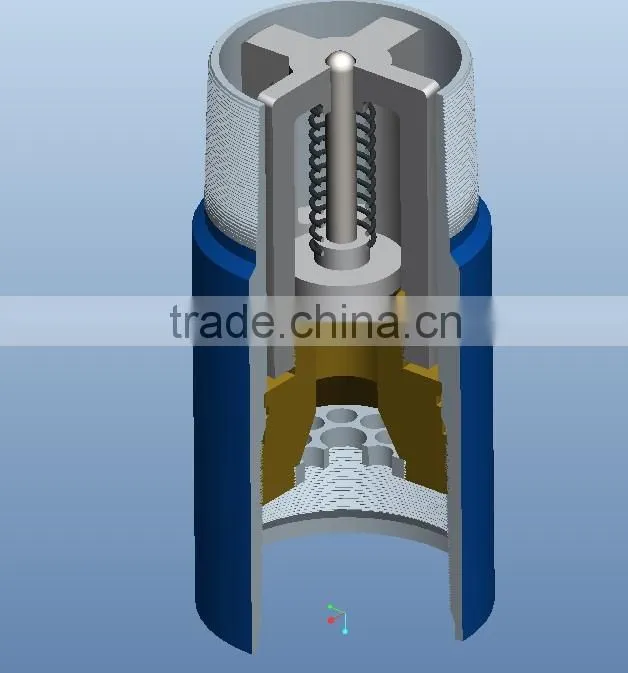

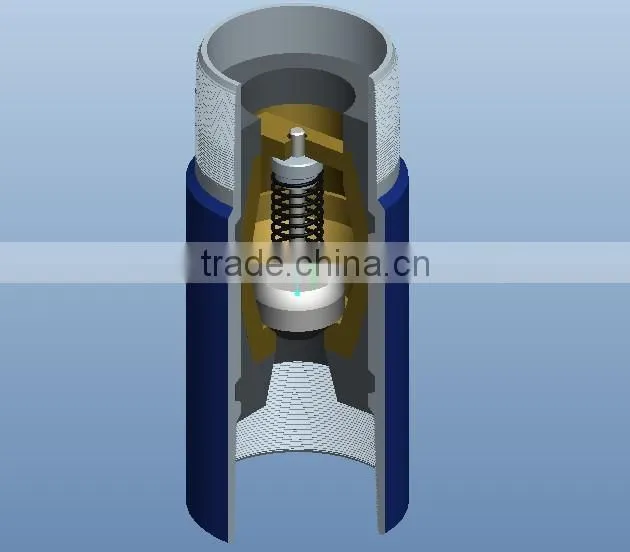

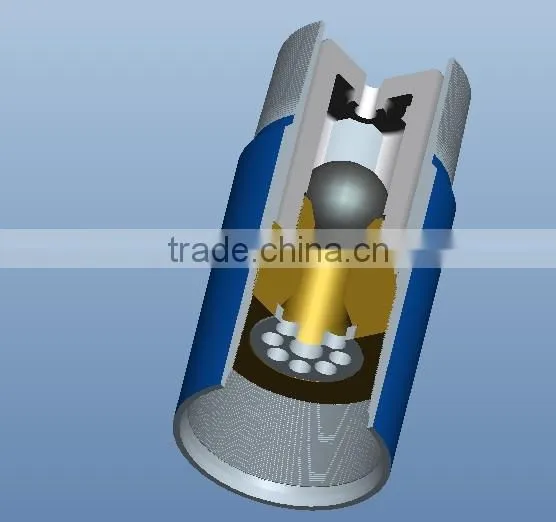

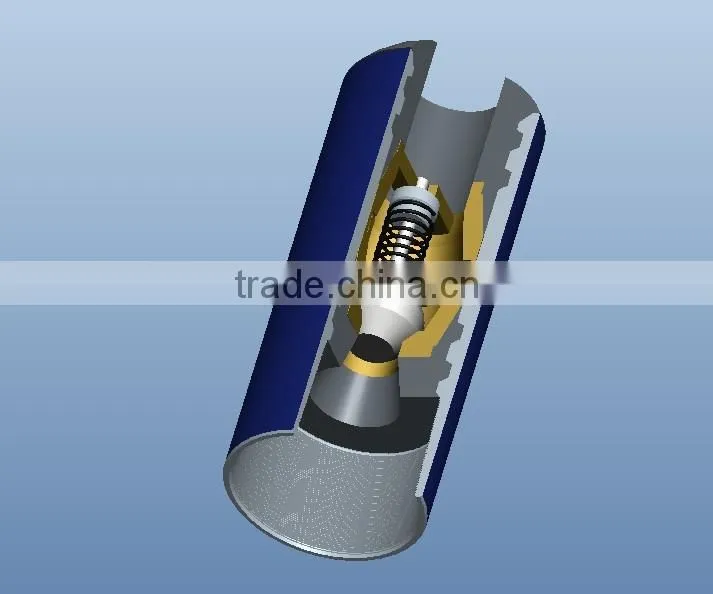

2, The float collar and float shoe have the functionof preventing the mud flowing backwards and realize solidification of the drilling mud after well completion, reduce the load of the derrick, control the height of the cement plug. The inside stucture parts adopt the aluminum alloy which can be easily drilled open.
Specification |
Out Dia |
In-Dia |
Height |
Forward pressure |
Backward pressure |
Connected screw thread |
Material |
Standard |
FG-FZQ140 |
154 |
122 |
400 |
20MPa |
25MPa |
5-1/2"LCSG |
40Cr |
SY/T5618-2000 |
FG-FZQ178 |
194 |
159 |
400 |
20MPa |
25MPa |
7"LCSG |
40Cr |
SY/T5618-2000 |
FG-FZQ245 |
270 |
220 |
450 |
20MPa |
25MPa |
9-5/8"LCSG |
40Cr |
SY/T5618-2000 |
FG-FZQ340 |
365 |
313 |
450 |
10MPa |
10MPa |
13-3/8"LCSG |
40Cr |
SY/T5618-2000 |
