1.widely used,like accommodation, meeting room, office room in outdoor wording2.integrative production line
3.high quality

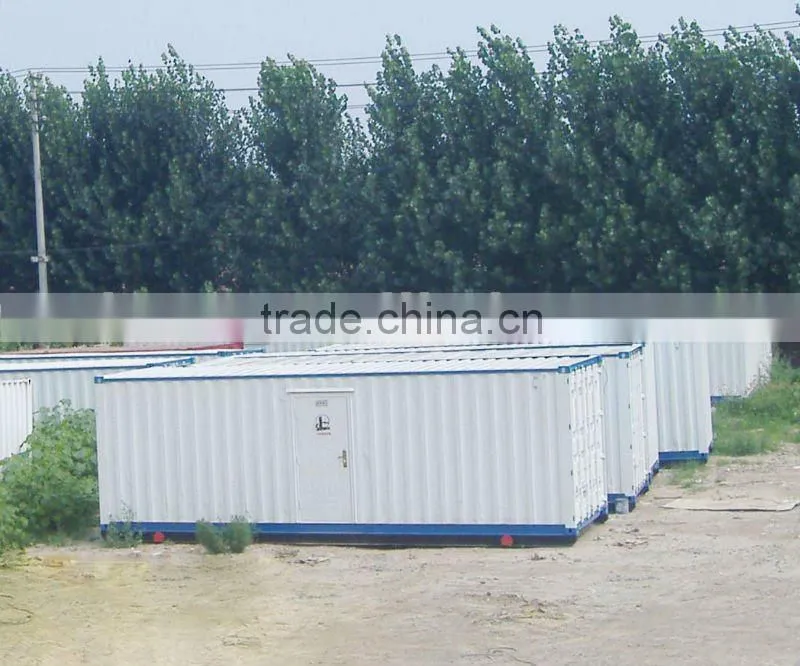

The mobile camp is the essential facility for field construction units living and lodging. It's widely used in pretroleum industry, well drilling, oil extraction, geological exploration,railroad construction and so on. It's convenient, easy to install, and weather proof.
Our mobile camp is of good reputation. With the integrative production line of sheet material molding, processing, welding, sand blasting and baking finish, we are enabled to produce about 1000 sets per year. Our products falls into two catalogue: over 30 types of engineering camp house and living camp house. Different types of house could be made according to customers' requirements.Apart from being used in many domestic oilfields, our products are also exported to Sudan, Venezuela, Azerbaijan, etc..
Mobile camps can be set up as per our clients’ requirements ranging from a single additional room or office to a complete 200 man master skid drilling camp for long term well testing programs or construction projects.
Full support services including catering, cleaning and maintenance are provided during your operation.
NO |
Items |
Data |
1 |
Overall Size |
Length:9100±5mm;Width3000±5mm;Height:4050±5mm;(or design as to customer's requirements) |
2 |
Welding Quality |
firm welding,formation,without weld beading,weld penetration,blister and so on. Remove coating & polish brightly after welding |
3 |
Coating Quality |
bright & uniform paint coating, smooth and not sagging, clear font and good adhesion and weather resistance, invariant color |
4 |
Home Features |
make it as per customer's requirement, reasonable settings, fixed solidly and firmly |
5 |
water-resistant & sealing properties |
6—8mm/min Experimental shower does not leak |
6 |
Heating performance |
In the ambient temperature of -40 °C, the room temperature will reach up to 15 °C in 2 hours |
7 |
Refrigeration Performance |
In the ambient temperature of -40 °C, the room temperature will lower down to 28 °C in 2 hours |
8 |
wiring |
With indoor residual current switch, power cord is orderly alignment. When the wire goes through the metal structures point, there should be insulating loop or liner. Reliable connection is between electricity facilities and room body with outdoor grounding bolt-hole |
9 |
Ground Resistance |
≤3 ohm |
10 |
Cold insulation resistance |
Air relative humidity is 45-75% and ambient temperature is 15-35 °C.When the voltage is less than 500V, the cold insulation resistance of every electrical circuit to earth and to each other in AC electrical system must not be less than 6 megohm |
