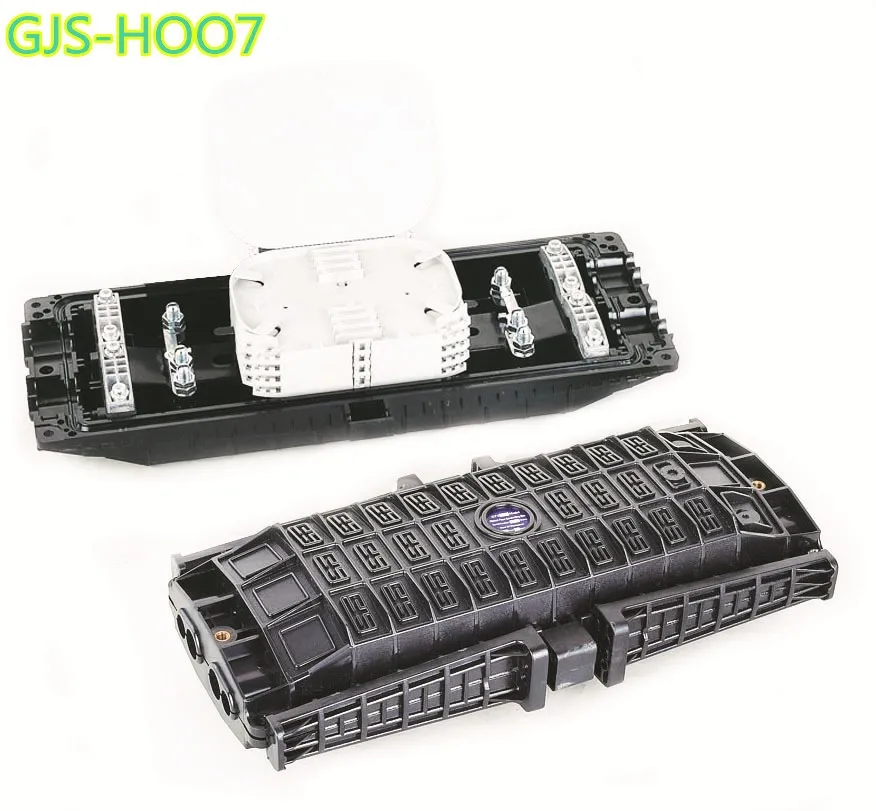

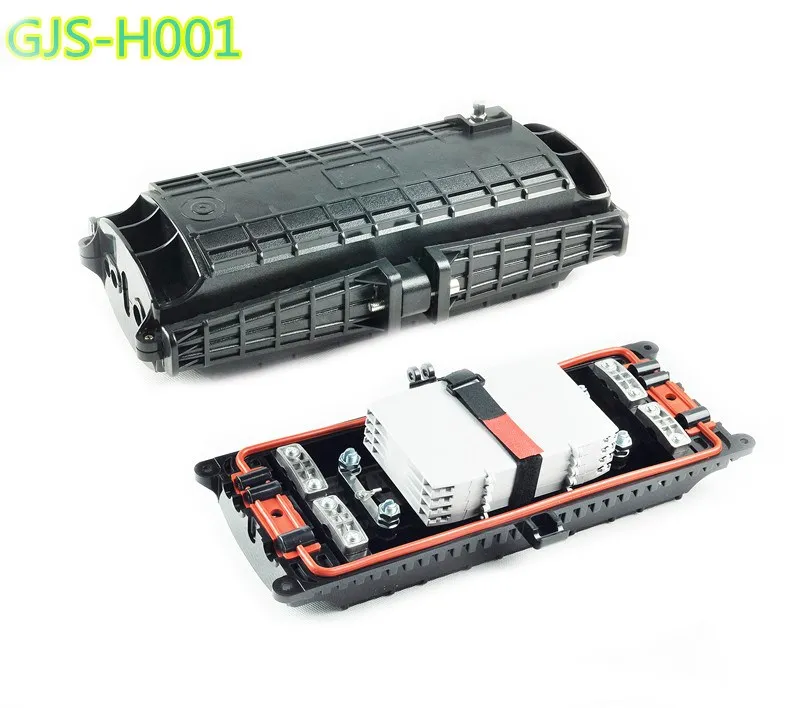

Product Description

Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:
This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.
Remark:
Accessories for customers' selection: earthing deriving device, pressure testing valve, buffer tube for ribbon or bunchy fiber, internal metal stainless steel,etc.

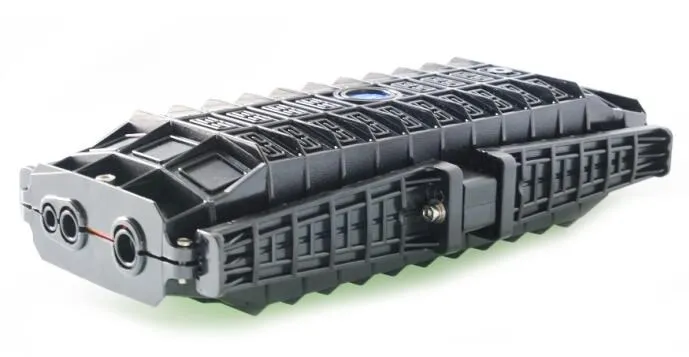

Specifications:

Size: mm  L×W×H
Cable ports
Cable Diameter
Max. Capacity
Core capacity per tray

450×220×110

6
φ13×2
φ20×2
φ23×2
Bunchy:96
Ribbon:288
Bunchy:12-96(cores)
Ribbon:72-288(cores)

Trays:

Model No.
Capacity
Size: mm    L×W×H

FOST006

Bunchy

single:12 cores         double:24 cores

160*106*10
Ribbon
6 pieces

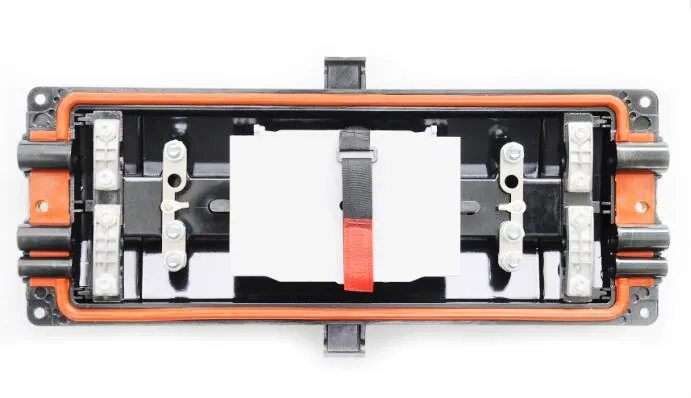

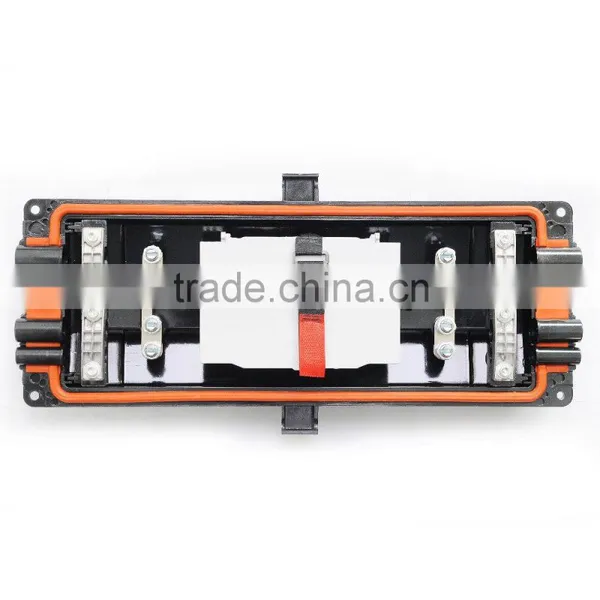

Configuration

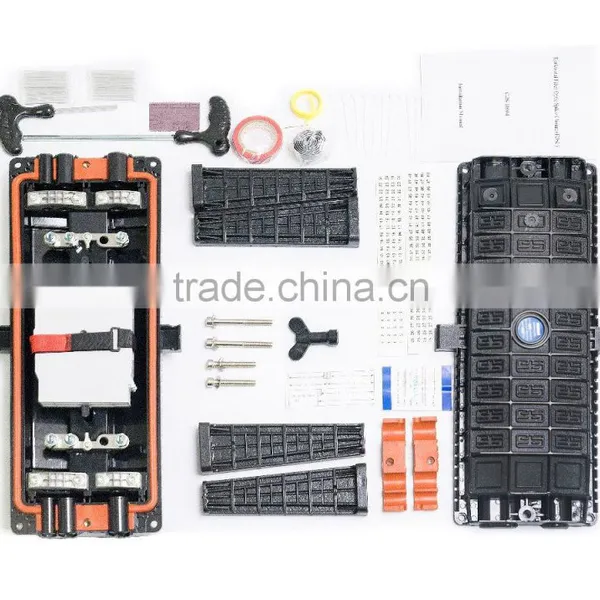

Main Component
No.
Name of components
Quantity
Usage
Remarks
1
Housing(bottom)
1 set
Protecting fiber cable splices in whole
Internal diameter:378*136(mm)
2
Housing(cover)
1 set
Protecting fiber cable splices in whole
Internal diameter:378*136(mm)
3
Insert plate
2 pairs
Fixing the housing
175*56*30(mm)
4
Fiber optic

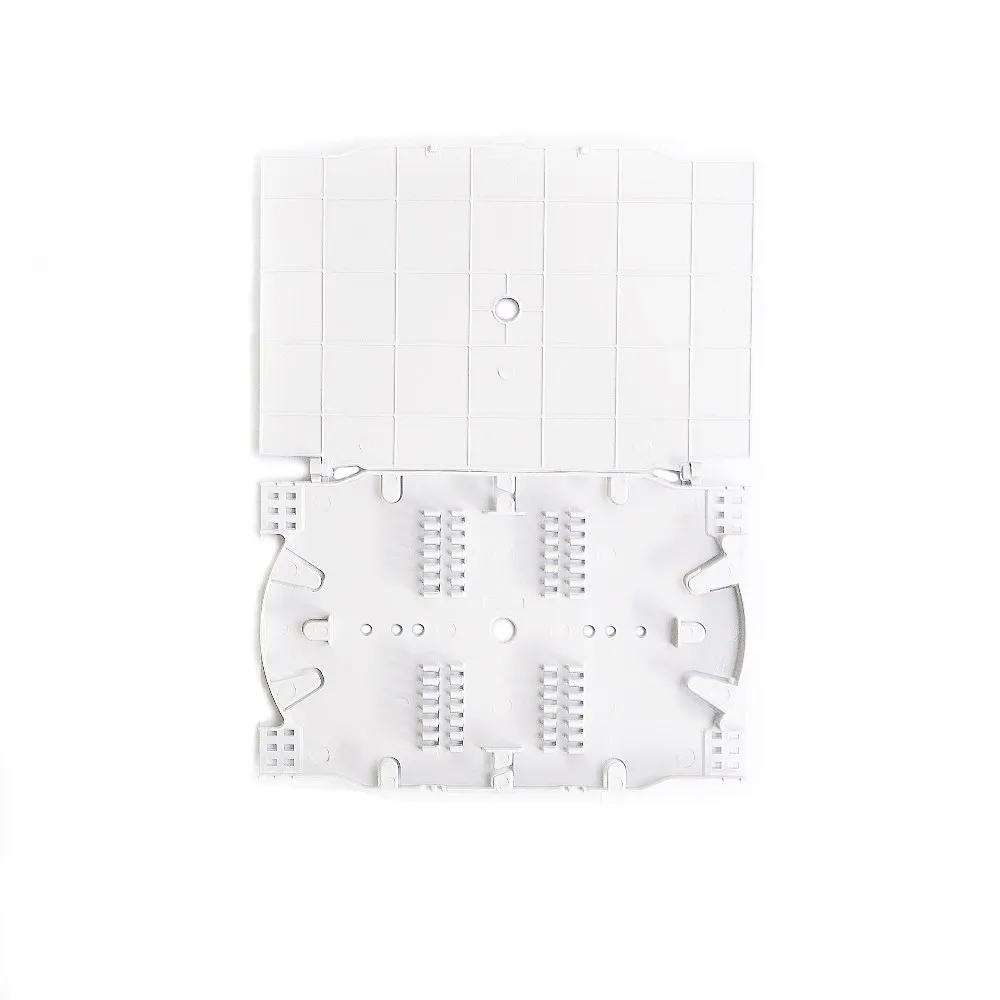

splice tray(FOST)
Max 4 trays (bunchy) or
4 trays (ribbon)
Fixing heat shrinkable protective sleeve and holding fibers
Suitable for: Bunchy: 6,12,24(cores) Ribbon: 3,6 (pieces)
5
Foundation
1 set
Fixing reinforced core of fiber cable and fiber optic splice tray(FOST)

6
Seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

7
Port plug
6 pieces
Sealing empty ports

  8
     Fixed bolt
             1 sets
           Fixing the housing

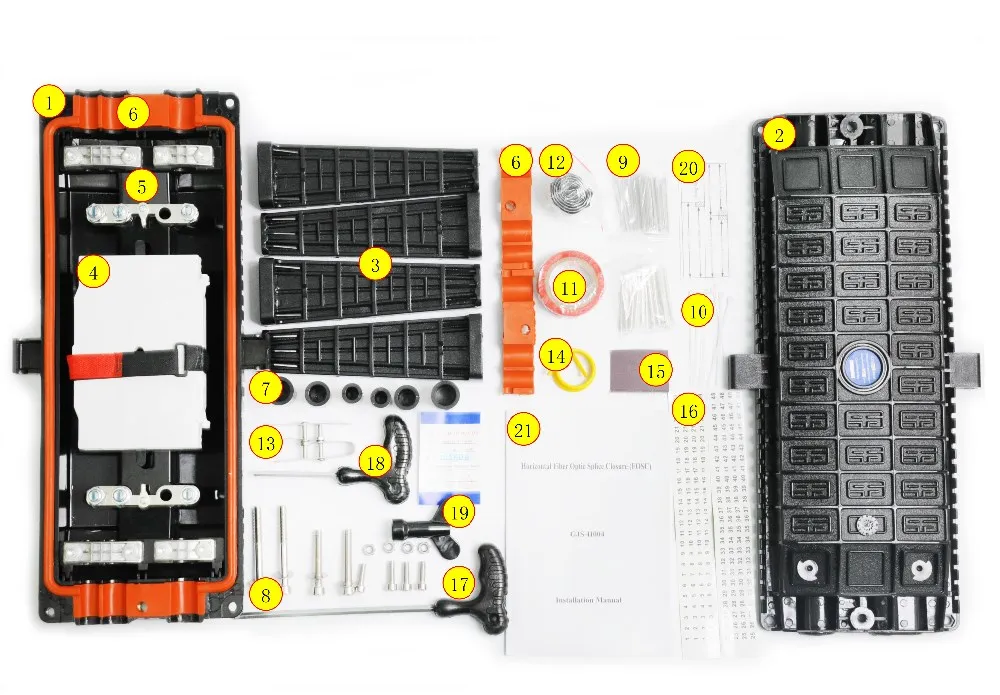

Main accessories and special tools
9
Heat shrinkable protective sleeve

Protecting fiber splices
Configuration as per capacity
10
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
11
Insulation tape
1 roll
Enlarging diameter of fiber cable for easy fixing

12
Seal tape
1 roll
Enlarging diameter of fiber cable which fits in with seal fitting
Configuration as per specification
13
Hanging hook
1 set
For aerial use

14
Earthing wire
1 piece
Putting through between earthing device

15
Abrasive cloth
1 piece
Grind the fiber

16
Labeling paper
1 piece
Labeling fiber

17
M8 Special wrench
1 piece
Fixing bolts of housing and insert plate

18
M6 Special wrench
1 piece
Fixing small bolts of housing
19
M10 Special wrench
1 piece
tightening nut of reinforced core

20
Measuring paper
1 piece
To measure circle,of which its diameter is enlarged with seal tape

21
Instruction manual
1 piece
standard installation

Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Buffer tube
decided by the customers
Hitched to fibers and fixed with FOST, managing buffer.
Configuration as per requirement

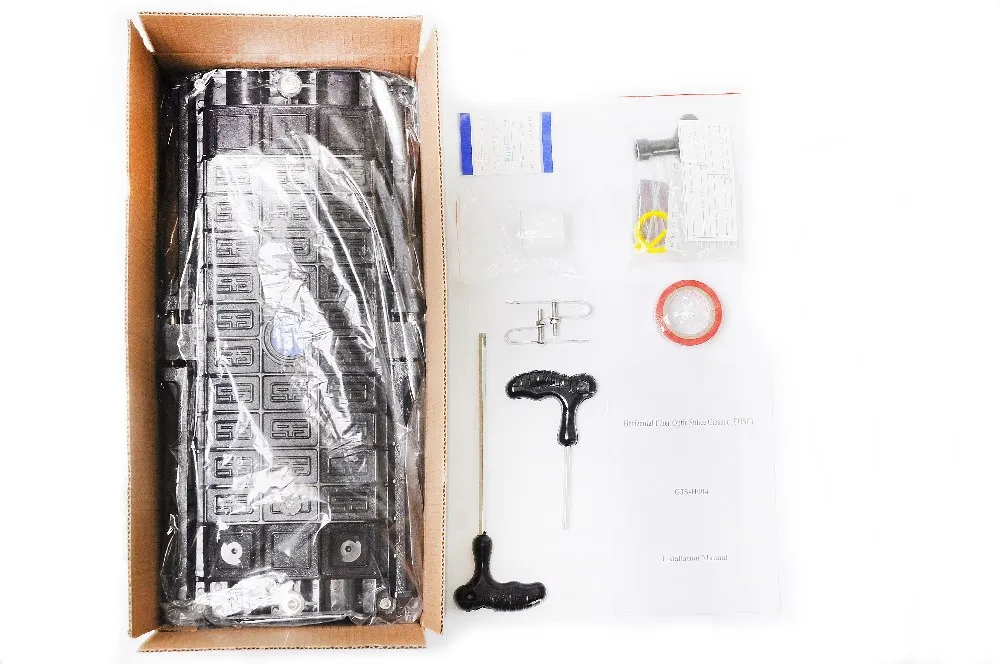

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
inner box
45.8×21.5×12
1pcs
2.85-3.3KG
Configuration as per weight
2
outer box
63.5×46.5×47
10pcs
28.5-33KG
Configuration as per weight

Installation:
