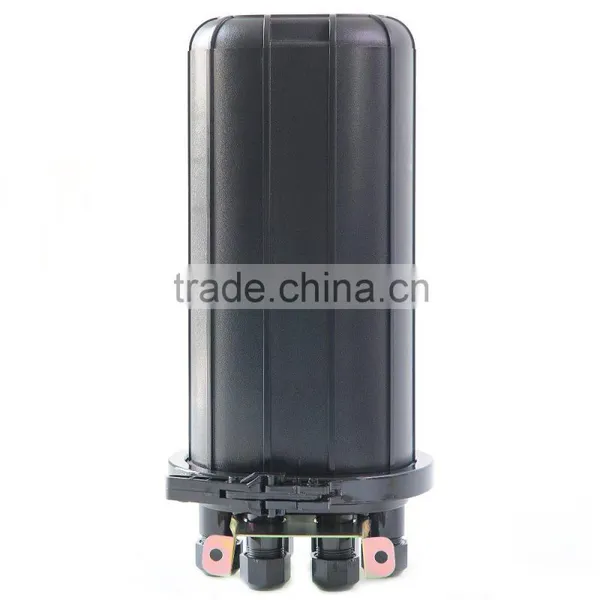

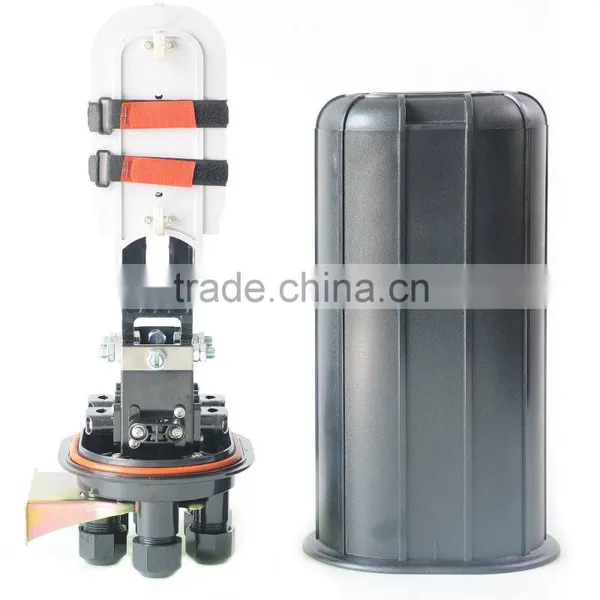

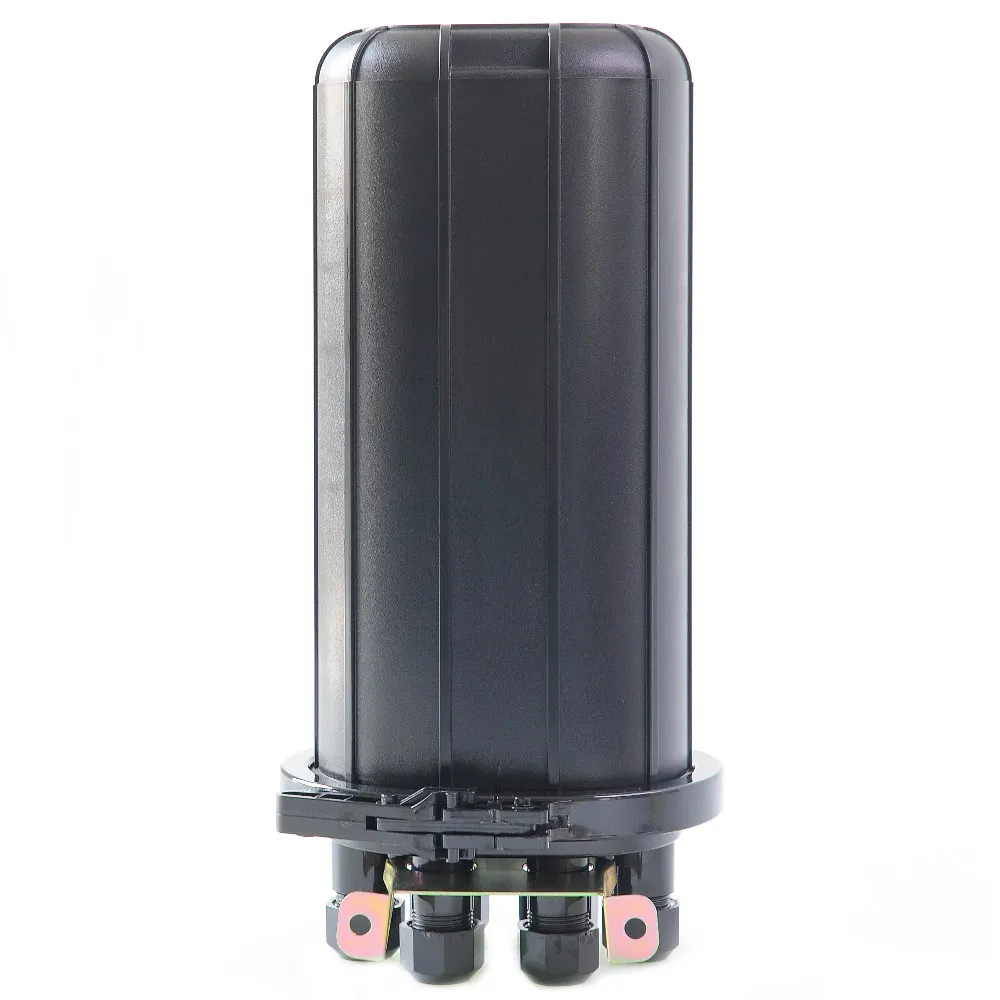

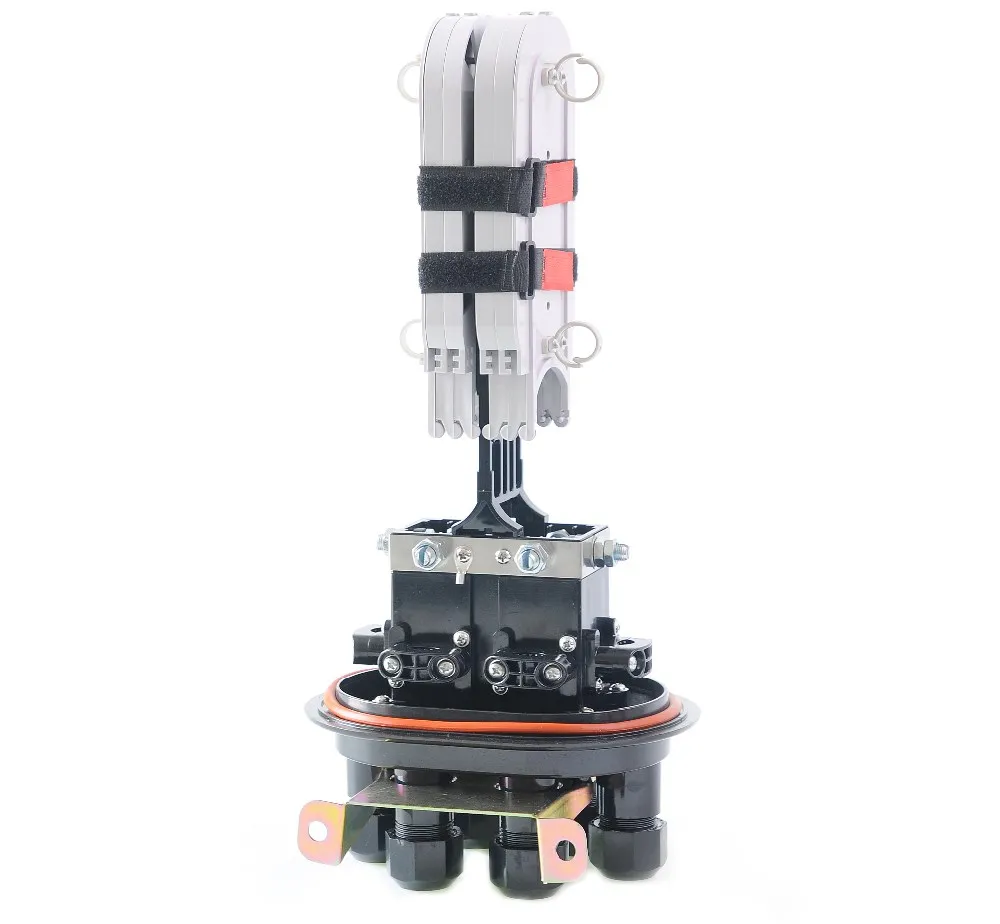

GJS-D009_Optical Fiber Joint Box

GJS-D009_Optical Fiber Joint Box thumbnail-1
GJS-D009_Optical Fiber Joint Box thumbnail-2
GJS-D009_Optical Fiber Joint Box thumbnail-3
GJS-D009_Optical Fiber Joint Box thumbnail-4
GJS-D009_Optical Fiber Joint Box photo-1
GJS-D009_Optical Fiber Joint Box photo-2
GJS-D009_Optical Fiber Joint Box photo-3
GJS-D009_Optical Fiber Joint Box photo-4
US$ 16 - 36 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Cnhejor Optical Fiber Joint Box
Model Number:
GJS-D009 Optical Fiber Joint Box, GJS-D009 Optical Fiber Joint Box
Contact Supplier Request Quote Chat Now
Yuyao Huijia Communication Equipments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Cnhejor Optical Fiber Joint Box
Model Number GJS-D009 Optical Fiber Joint Box, GJS-D009 Optical Fiber Joint Box
Product Description

Feature:
1. For aerial,buried,wall and pipe wall people use wells
2. Ring using a special material that can be repeatedly opened,re-use
3. Splice tray easy to use page design
4. Quick way to make use of open sealed maintenance easier
5. Valve and grounding devices can be installed
6. Advanced internal structure design
7. Easy to re-enter, it never requires re-entry tool it
Scope:
The Scope of application is :aerial,underground,pipeline,handhole.The ambient temperature ranges from -40 to 65℃.

Specifications:

Size: mm  L×W×H
Cable ports
Cable Diameter
Max. Capacity
Core capacity per tray

455×220

6
φ21×2
φ16×4
Bunchy:240
Ribbon:576
Bunch:12-240(cores)
Ribbon:576(cores)

Trays:

Model No.
Capacity
Size: mm    L×W×H
FOST010
Bunchy
single:12 cores    double:24 cores
104×175×10
Ribbon
6 pieces

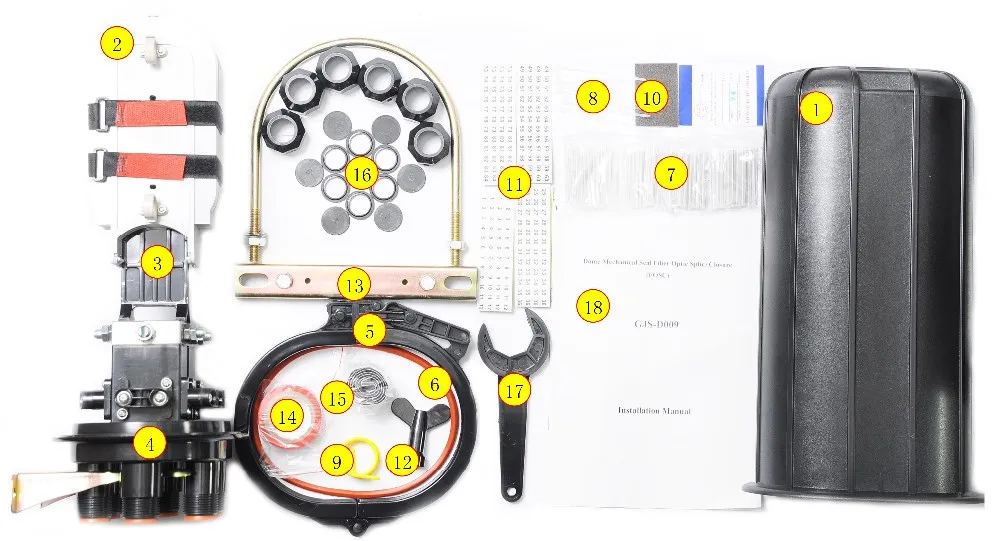

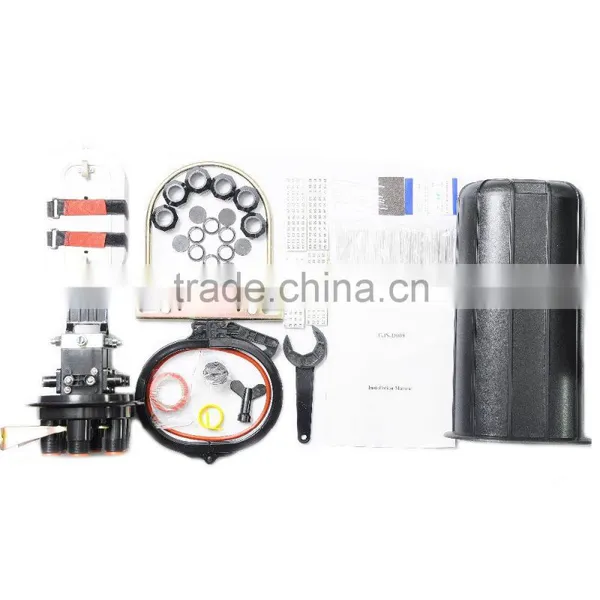

Configuration
Main Component
No.
Name of components
Quantity
Usage
Remarks
1
FOSC(cover)
1 set
Protecting fiber cable splices in whole
Internal diameter:350*220(mm)
2
Fiber optic

splice tray(FOST)
Max 10 trays (bunchy)
Max 8 trays(ribbon)
Fixing heat shrinkable protective
sleeve and holding fibers
Suitable for:
Bunchy:12,24(cores)
Ribbon:6(pieces)
  3
Fiber holding tray
              1 pcs

Holding fibers with protective

coat
4
Base
1 set
Fixing internal and external structure

  5
     Plastic hoop
              1 set
Fixing between FOSC cover and base
6
Seal fitting
1 set
Sealing between FOSC cover and FOSC bottom

Main accessories and special tools
7
Heat shrinkable protective sleeve
Protecting fiber splices
Configuration as per capacity
8
Nylon tie

Fixing fiber with protective coat
Configuration as per capacity
9
Earthing wire
1 piece
Putting through between earthing device

10
Abrasive cloth
1 piece
Scratching fiber calbes
11
Labeling paper
1 piece
Labeling fiber

12
M10 Special wrench
1 piece
tightening nut of reinforced core

13
Metal hoop
1 set
For wall mounting and pole hugging

14
Insulation tape
1 roll
Enlarging diameter of fiber cable for easy fixing

15
Seal tape
1 roll
Enlarging diameter of fiber cable which fits in with seal fitting
Configuration as per specification
16
Seal rings for inlet/outlet ports
1 set
For the inner seal of inlet/outlet ports
17
Wrench
1 piece
Installing and tightening nut(plastic) of inlet/outlet tube.
18
Instruction manual
1 piece
standard installation

Optional accessories
No.
Name of components
Quantity
Usage
Remarks
1
Pressure testing valve
1 set
After injecting air it is used for pressure testing and sealing testing
 Configuration as per requirement
2
Earthing deriving device
1 set
Deriving metallic components of fiber cable in the FOSC for earthing connection
Configuration as per requirement
3
Desiccant
1 bag
Put into FOSC before sealing for desiccating air.
Configuration as per requirement
4
Heat shrinkable protective sleeve
Configuration as per requirement
Protecting fiber splices
Configuration as per requirement

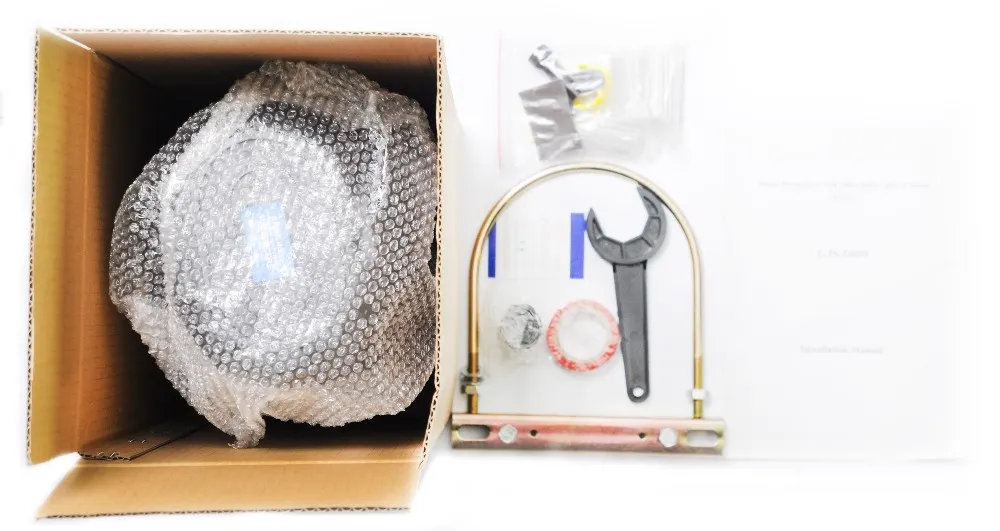

 Package:

No.
specification
Carton size(cm)
Capacity
N.W
Remarks
1
small size box
24×21×46
1pcs
3.2-4.1KG
Configuration as per weight
2
big size box
64×49×48
6pcs
19.2-24.6KG
Configuration as per weight

Installation:

Other Series Recomme
Workshop
Packaging & Shipping
Our Service

1. Best after sale service, customer can follow their order situation any time, no matter on product line, warehouse or shipment.
2. All of our goods will pass QUALITY INSPECTIONS before shipment.
3. About 10 years experience in exporting to make your order more smooth.
4. Less than one container loading is accepted.
5. On time delivery, in general 10~15 days.
6. Multimode payment: T/T.
7. Special dimensions available according to request.
8. We have many certificates of our goods.

Certification
FAQ

1.Can you provide free samples for us?
---Sure, we can provide the free samples for you, but the shipping cost need be on your account.
2.What’s the lead time for all the goods that I required?FA
---About the 3-4 working days after getting payment.
3.What’s the warranty for your products?
----Normally it is 2 years.
4.What’s your payment term?
---It is 100% T/T in advance
5.What’s the MOQ for your products?
---1pcs is okay.
