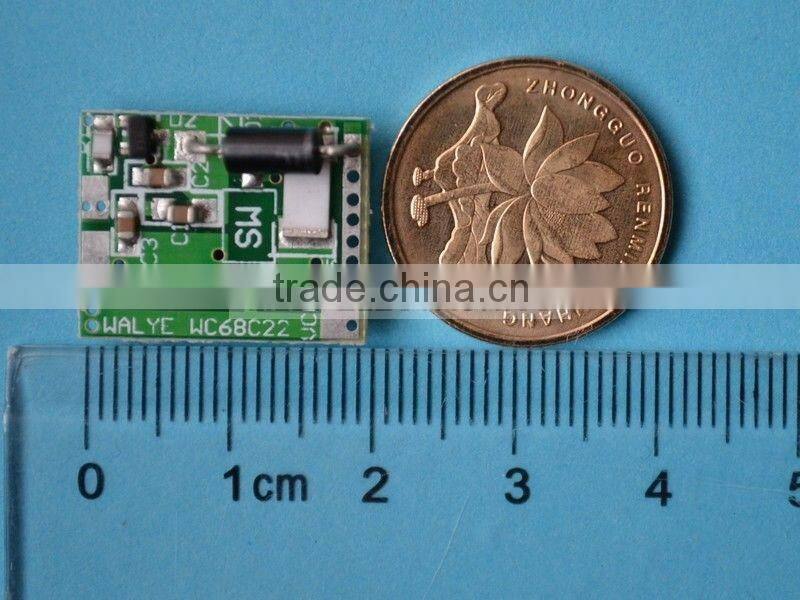

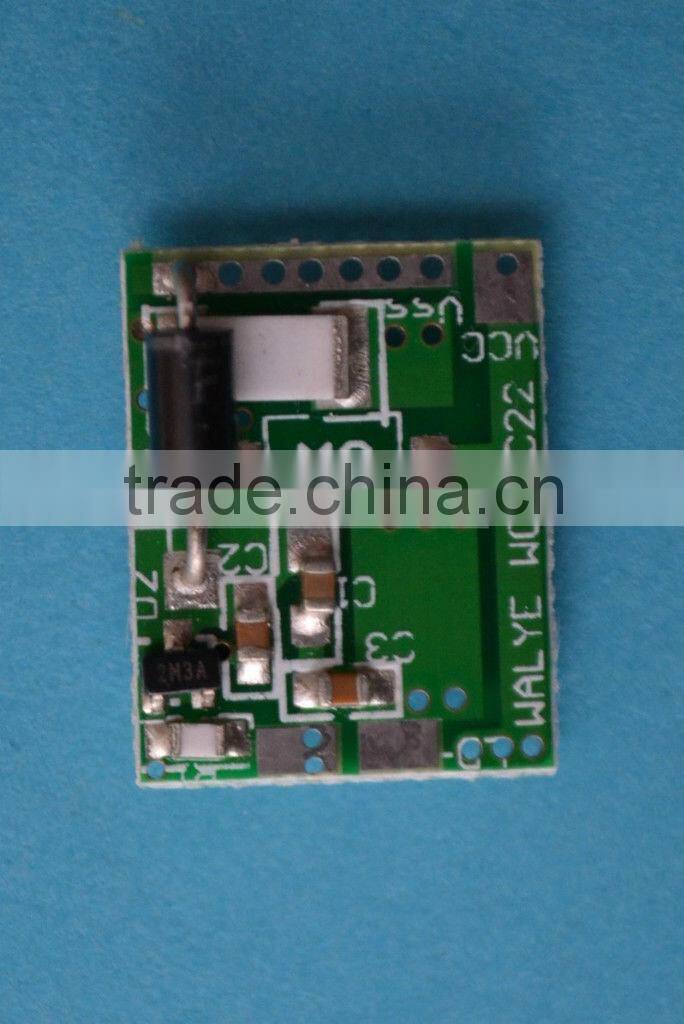

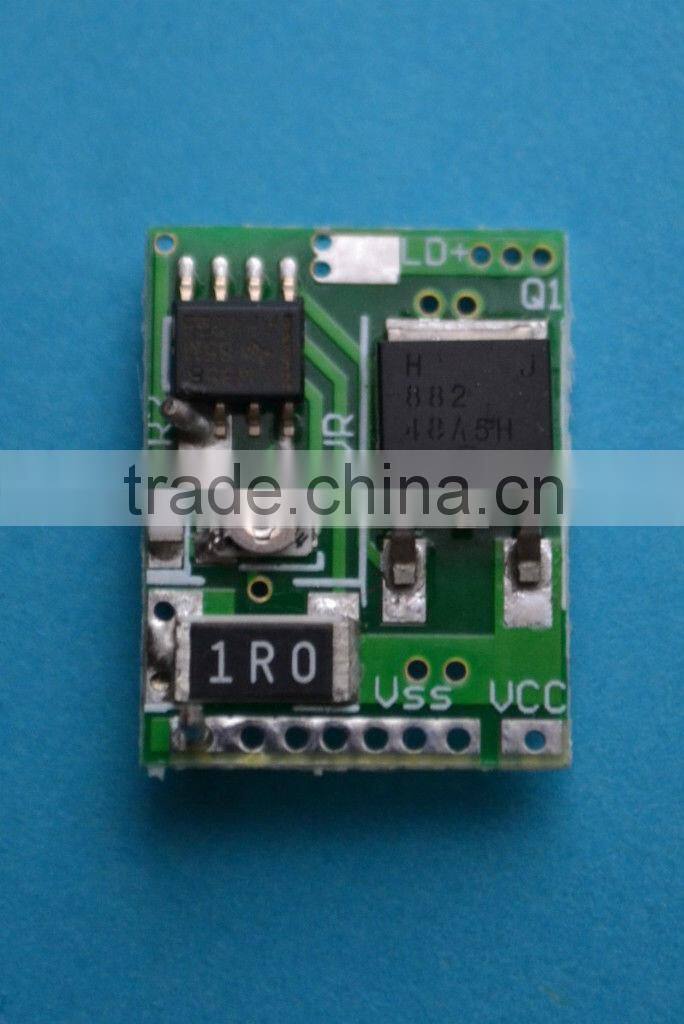

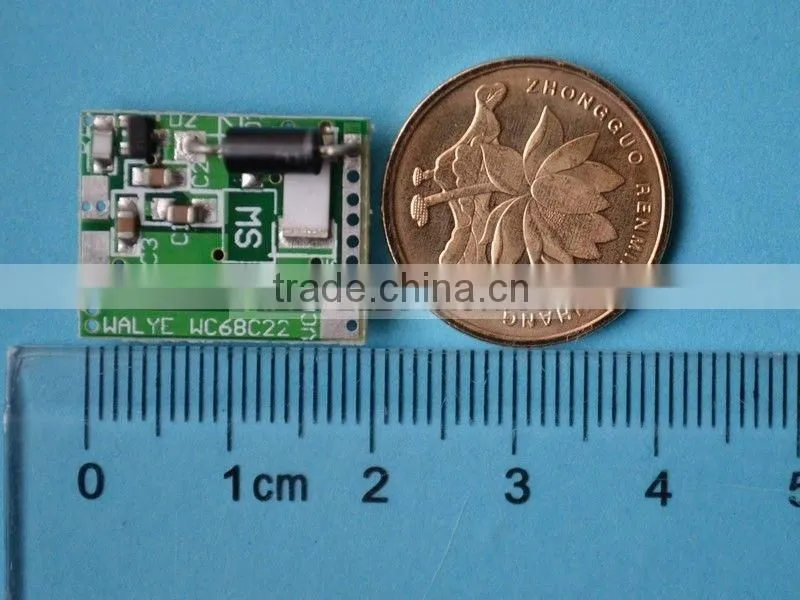

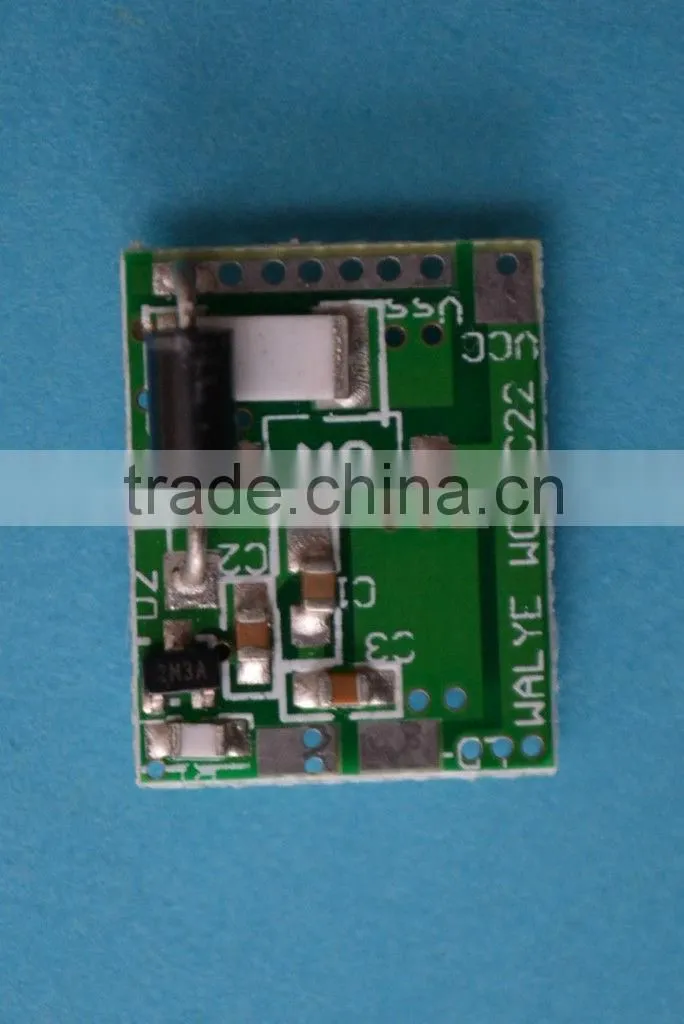

Help Center500mW-1W 445nm/447nm/450nm Blu-ray Drive Circuit Board
Related Products
-
3pcs 2DU6 6x6mm Silicon Photocell Laser Receiver 400-1100nm w/ 2 PinsUS$ 1 - 20MOQ: 10 Pieces -
3pcs 2DU3 3x3mm Silicon Photocell Laser Receiver 400-1100nm With 2pinsUS$ 1 - 20MOQ: 10 Pieces
-
405nm 445nm 450nm 520nm Laser Drive 200mW-3W 12V Driver for RGB Laser With TTLUS$ 1 - 20MOQ: 10 Pieces
-
NEW 2.8~4.2V Driver Drive Board PCB For 532nm 808nm 980nm 850nm Laser DiodeUS$ 1 - 20MOQ: 10 Pieces
-
1PCS 2DU10 10x10mm Silicon Photocell Laser Receiver 400-1100nm With 2pinsUS$ 1 - 20MOQ: 10 Pieces
Specifications
Quality products, reliable quality.Quick Details:
Circuit control: step-down circuit, constant current output
Dimensions: 15x20mm (W * L)
Power Supply: 5-8V
Output Current: 2.5A constant current
Reverse polarity protection: unique design of reverse polarity protection, you don't have to worry about burning up the board by putting battery reversely
QSP protection: protection with soft start, you don't have to worry about damaging the laser diode even if you switch on and off more than frequently.
Pin definition: the pad especially designed for 445nm drive board, you just need to solder pins according to the pin triangle order, this is not like other boards, for which you have to cut off one pin, or staggered welding!
Polarity Definition: module housing is positive "+", the end pad is negative "-", it is suggested to use two 3.7V lithium battery (16340,18650,14500 or 18500 power supply), or you can used 5.5V DC power supply directly
Packaging and Delivery :
Package type: carton
Delivery time: within 1-3 days after getting payment
Specifications
This is a power driver for laser diode/module!
Widely industrial and LAB use!
Keep it in dry environment away from water or moisture!
