Introduction:
It is a new integrated machine of sawing logs , or square materials . It with high stability , safety , high efficiency , operation and maintenance , a more simple material high polished , free press plane , has been exported to many countries .
This type for China fir, metasequoia , pine , pinus sylvestris , Chestnut wood , eucalyptus , Green gangmu , Acacia and other kinds of handwood .
Items:
|

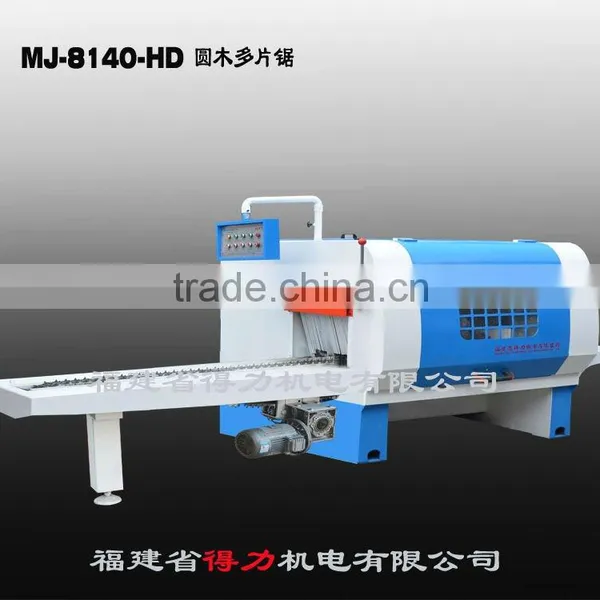

MJ 8140-HD Multi Blade Saw Machine |
Max. Working Width : 140mm | Max. Working depth : 140mm |
| Min. Working Width : 70mm | Min. Working depth : 70mm | |
| Max. Sawing Length : continuous feeding | Feed speed: intelligent stepless speed adjusting | |
| Min. Sawing Length : 600mm | Weight : 1230KG | |
| Overall Dimensions : 3300*1520*1460mm | Total motor power : 22*2KW | |
| Blade Diameter: 255mm | Electrical equipment:Taiwan Brand |
Advantages of Parts:
1.Principal Axis : made of high-quality materials , chromium plated , dynamic balance processing , high stability , wear-resisting rust.
2.Cooling System : use the patent ZL200920173954.7 of axis core water spray technology to make dustproof environmental protection and saw protection , which can prolong the saw blades service life.
3.Feed : adopt PC intelligent control system to identify wood size automatically to change the feeding speed to protect saw blade and electric motor. Arc four row chain make the wood be placed in the middle automatically. The entire four powers feed synchronous powerfully, and give full play to the machine performance.
4.Case : mainframe box enhances the steady performance of the equipment greatly and improve the service life of the blades . Meanwhile, the mainframe box has gone through aging treatment to make it durable and keeping shape.
5.Bearing : selecting the international well-know brand , dust-free heating assembly, high flexible degree of principal axis , the service life is long .
6.Blades : using high quality imported saw blades , heat-resistant , wear-resisting , do not out of shape .
Whole Advantages:
nvenient saw blades handling
2. free combination of opening piece or square.
