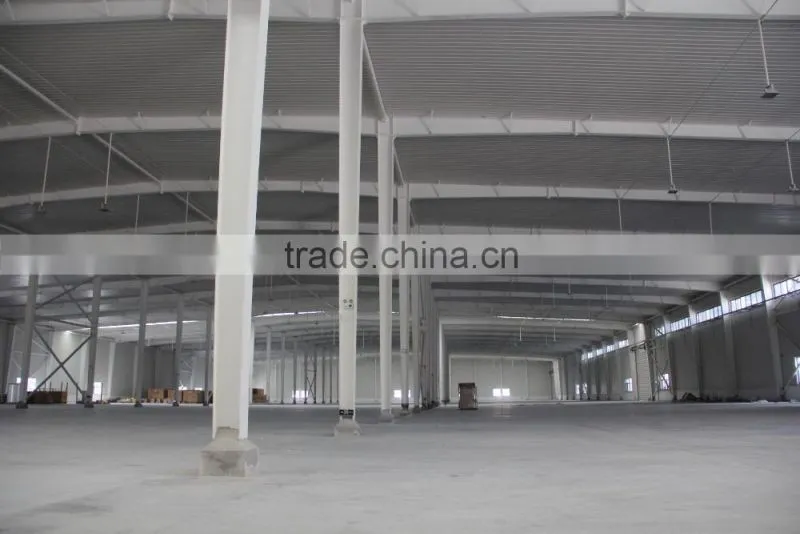

hot sale heatproof Steel Structure Building Fabricate Warehouse
1.turnkey project or only construction materials
2.fast installation easy maintain
3. Steel frame and insulated panels
4.30 years quality ensured
Classic Heavy Industry Group Co., Ltd. is a world class company specialized in steel structure building. We are member of China steel construction society ,and we have cooperation relationship with China's top university in technology ,so we can take goverment large project. At the same time we also like taking private small projects in Africa&other emerging countries with our one stop service.
Our Projects —steel structure building(warehouse, workshop,storage hangar,airplane hangar)
steel fabrication shed
Project Name |
steel fabrication shed |
|
Dimensions |
length |
H beam 4000-15000 mm |
thickness |
web plate 6 -32 mm flange plate 6-40mm |
|
height |
200 -1200 mm |
|
Color |
according to customers’ requirement |
|
size |
according to customers’ requirement |
|
Main components |
base |
cement and steel foundation bolts |
main frame |
weld H section beam,column |
|
material |
Q 235 B , Q 345 B ,other country's standard |
|
purlin |
C purlin or Z purlin size from C 120 - 320 , Z 100 -20 |
|
bracing |
X type or other type bracing made from angle and round pipe |
|
bolt |
common bolt, high -strength bolts and anchor bolts |
|
roof & wall |
sandwich panel(EPS, rock wool, glass wool, PU) and colored steel sheet |
|
door |
electric rolling door, sliding door, swing door |
|
window |
aluminum alloy window |
|
sheet |
0.35 -0.6 mm galvanized sheet |
|
accessories |
semi - transparent skylight belts , ventilators , downpipe and galvanized gutter etc . |
|
Drawing software |
Auto CAD , Sketchup ,Tekla, 3D max etc . |
|
steel fabrication shed
product features
1.Beautiful decoration:beautiful materials ,brightly color,flat surface
and art decoration
2.Easy to install and dismantle:several reuse ,simple tools
installation.one worker could install 20-30 square meters per day,
six workers could work out 3KX10K house in two days.
3.Flexible composition :Doors and windows could be install at any
position,separate wall could be built at any transverse axis.stairs
are outside the house.
Drawings&Quation:
1.Customized design to welcome.
2.As long as you like, we can design and provide drawings for you.
3.In order to give yo an exactly quotation and drawings,please supply the information as follow:
Usage |
Steel Structure workshop,warehouse,office or so on. |
Size |
length*width*high, and the ridge height, slope |
Standard |
China Standard,England Standard,America Standard or Australia Standard(please supply the detail date) |
Crane |
Do you need the crane?If you need please tell me the loding. |
Country |
Which country that the building will be? |
Design load |
Wind speed, Snow load, Earthquake |
Wall and Roof |
Steel sheet or sandwich panel |
Insulation |
Fiber glass, EPS,Rock wool,PU,please tell me the thickness |
Surface |
Painted ,Hot dip galvanize |
Window |
Quantity, material, dimension (W*H) and position |
Door |
Quantity, material, dimension (W*H) and position |
Accessories |
Down pipe, Out gutter, Ventilator, skylight etc. |
steel fabrication shed
Design service:
AutoCAD construction detail drawings, 3D sketch,Tekla model, Etc.
Installation service
As long as you need , we can provie install service, or sent our engineer to guide install.
installation tools for free
Tems:
Payment : L/C or by T/T(30% prepaid as depsit, the balance 70% before shipment)
Delivery time : 15~40 days,usually as customers's order
Shipment : 20'GP, 40'GP,40'HQ, 40'OT or in bulk
steel fabrication shed
Classic Heavy Industry Group Co., Ltd. is a diversified and large group that is focused on steel structure, medical apparatus and instruments, the architectural design as the core industries. Our total assets is 2.6 billion RMB, fixed assets is 1.5 billion RMB. It covers an area of 54 hectare of land and has 260000 square meters workshop, 100000 square meters building area, 2300 staffs and 500 technical personnel.
We treat quality and reputation as enterprise’s life, took the lead to obtain the ISO 9001 Quality Certificate, the IS014001 Environmental Management System Certification and the OHSAS18001 Occupational Health and Safety Management System Certification.
Quality control
steel fabrication shed
We can undertake highrise building, large-span building, large-span steel structure bridge, oceanographic engineering and other large-scale projects. Our projects cover domestic and abroad, like South America, Africa, Middle East, Southeast Asia etc.
steel fabrication shed
Customers Visiting
Government officials from 26 countries in Europe,Africa Union visit classic group
