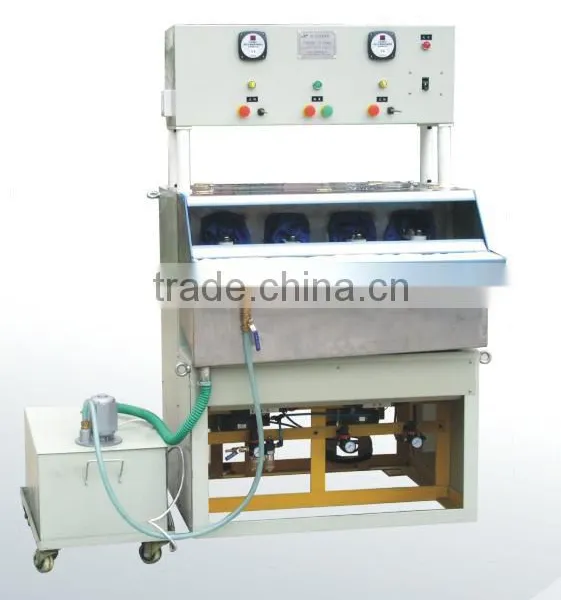

HH-4 High-Speed Precious Grinding and Polishing Machine

HH-4 High-Speed Precious Grinding and polishing Machine

Parameter:

 * Processing diameter: φ20-φ100mm

*  Shaft speed: 2040rpm

*  Connecting thread: M20

* Swing shaft speed: 72rpm

*  Swing shaft frequency: 0~65mm

* Pressure of stylus: 2~28kgf

*  Air pressure control: manual turn

* Pressure: 0.5~0.7MPa

*  Overall diameter: 1070x910x1680mm

* Net weight: 480kg

11) Total power: 2.36kw

Features:

* Model HH-4 Precious Grinding Machine is the equipment with high-precision, high-efficiency in processing the optical lens.

* Available for the precious grinding of the medium and big sized lens, constitute the whole set of the equipment with Model HB-6, HB-8 High-Speed Polishing Machine.

* Incessant adjustment of pressure is achieved through the pneumatic control, ensuring the process of lens with different diameters.
