Specifications
Swing Shafts Polishing Machine JP0.5High quality, reasonable price, good service.

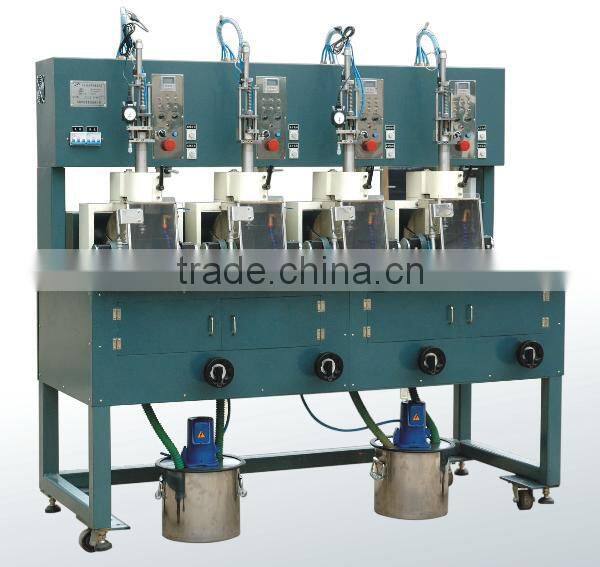

Model JP0.5 Swing Shafts Polishing Machine
Parameters:
1) Number of shafts: 4
2) Shaft speed: 140~3000rpm
3) Lens diameter: φ3~φ5mm
4) Lens curvature radius: ±R2~R50mm
5) House swinging frequency: 10~100rpm
6) House swinging angle: 0~45°
7) Connecting thread on the shaft: M16X1
8) Diameter of thread: φ18mm
9) Pressure of the upper shaft: 0.1~5kgf
10) Power supply: AC 380V/3P/4W/50HZ
11) Pressure: 0.5~0.7mpa
12) Overall dimension: 1800x850x1740mm
13) Net weightabout: 850kg
14) Total power: 1.5kw
Features:
* As the new equipment of cold processing of optical parts, Model JP0.5 Shafts-swing Polishing Machine is widely used in optical and electronic industries in the fine grinding and polishing of small lenses with high accuracy.
* The machine consists of mechanical system and controlled by PLC. Motors of the main shafts and swing shafts are controlled by 4 frequency converters respectively and stepless speed variation of the main shaft and swing house is achieved.
* The remarkable characteristics of the machine is that: before the main shaft starts to run, it can be adjusted within 0~45°by a bar and a bar nut, and take this location as the balance point, it swings within 0~20°(adjustable).
* The efficiency and quality are being improved greatly compared to the other optical equipment; especially that after the adjustment of the main shaft, the mechanical parts such as sliding house and veering house are connected very firmly which eliminated the space between the whole unit and realizes a more steady running with no vibration and low noise.
* The operating modes of the equipment are manual and automatic modes; the processing time of the parts can be set freely from 1 second to 99 hours according to the different curvature radius; when under automatic control, all the production is automatic except loading and fetching of the parts.
* Water pot design is one water pot for one shaft with great waterproof function and with an anti=spill door controlled pneumatically and electrically, its very convenient to load or fetch the parts.
