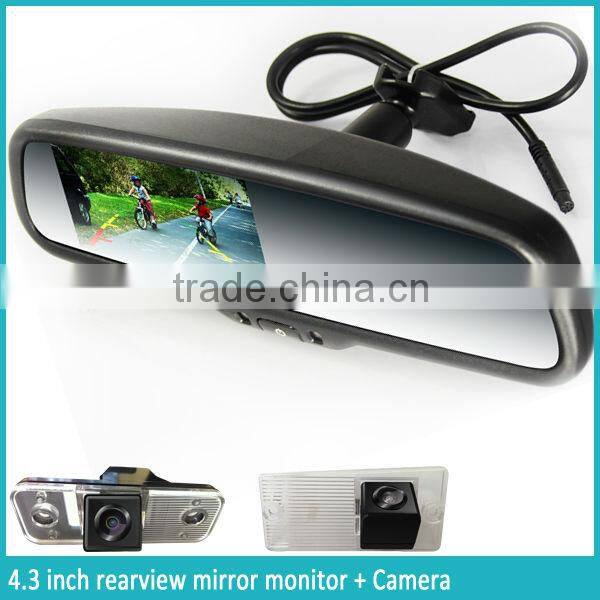

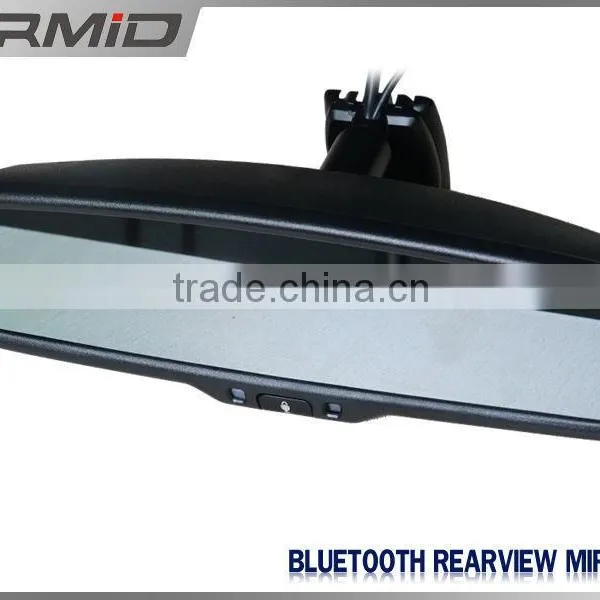

4.3inch Auto Dimming TFT-LCD Monitor EK-043LA-TPMS Rearview Mirror With; Configurable High Temperature Alert Setting

EK-043LATPMS 4.3 inch auto dimming rearview mirror with TFT-LCD monitor; Configutable high temperature alert setting

Specifications

1.high resolution 4.3 inch LCD display

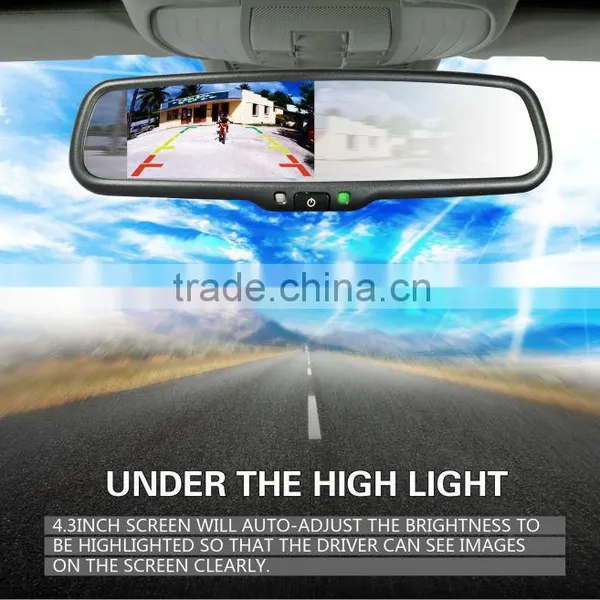

2.auto brightness adjustment
3. E-mark, FCC, ROHS, C-Tick
4. material: ABS+PC

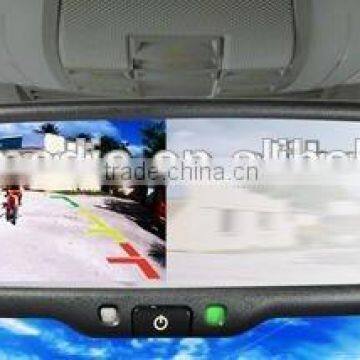

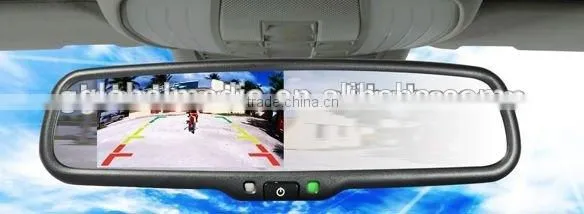

 4.3 Inch rearview mirror
>  Automatic activation when you select reverse gear
>  TFT-LCD monitor with 4 to 5 sensors;

>  Reliable & easy to install;

>  Display tire data on the monitor directly;

>  Selectable pressure unit(PSI, BAR);

>  Selectable temperature unit(℃/℉);

>  Configurable high/ low pressure alert setting;

>  Configutable high temperature alert setting;

>  Selectable trailer ID and tractor ID
    option function
>  Backup camera
>  Auto-dimming

Technical Specification
1.Operating Voltage9.0 -16.0 Vdc
2.Operating Temperature-40oC ~ +85oC
3.Storage Temperature-40o C~ +100oC
4.Maximum Current<450 milliamps
5.High Reflectance>70%
6.Low Reflectance6~10%
7.Time to change reflectance from 55% to 15% at 25o<6.0 seconds
8.Time to change reflectance from 15% to 55%<8.0 seconds
9. They are “hands off”, no manual adjustments are required leaving the driver free to watch the road.
10. The are variably dimming, meaning they are continually dimming and clearing to the precise level necessary to optimize vision.
11. In the darkest state, the minimum reflectance is only 7% and increases from there depending on the glare conditions.
12 Auto-Dimming Mirrors use advanced “Electrochromic” technology providing maximum glare management. 3.5inch or 4.3inch car rearview mirror monitor


Material quality
1,wireharness
6 meter or 10 meter
2,shell : ABS+PC, heat resistance, low temperature resistance, impact resistance
3,camera lens, Nano-glass lens, heat resistance, water shock, anti-corrosion, long working hours can not afford mist.
Unit Dimension (L*D*H) 26.5*8*3.2
Qty per Export Carton 10pcs
Unit Packing: (L*W*H) 31*17.5*6.5cm
Export carton (L*W*H) 35.5*32.7*38cm
Unit Packing (G.W.) 1.3KG
Export carton (G.W.) 13KG
MOQ 100PCS
20'FT Qty 3000pcs

Parking sensor Features:
1.Automatic activation when the reverse gear is chosen
2.Clearly visible display indicating the direction and distance of the obstacle
3.Integrated beeper for immediate alert
4.Easy-to-install, does not require maintenance
5.Does not run on battery power when the vehicle is parked and the engine switched off
6.Type approved in conformity with European regulations on electromagnetic compatibility

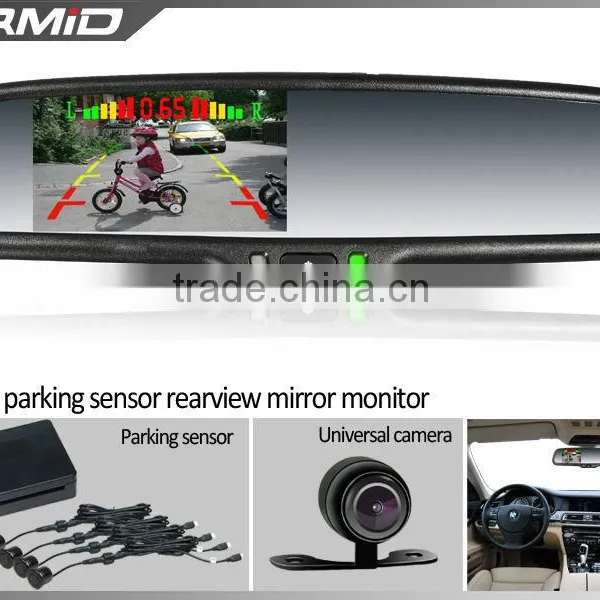

4.3inch car parking sensor rearview mirror monitor
1. Parking sensor with memory function auto activates when reversing;
2. Bi Bi voice warning, 4 replaceable sensors, Repaintable, Detect problems ;
3.Auto display reverse camera with night vision in high resolusion . (universal or special camera model for your choice)
4. Auto alarm when sensor head is damaged;
5. Detecting distance is 30cm, 50cm or 70cm, to calculate spare wheel or bike in the backside into the distance.
6. OE Grade High-quality parking sensor with high unti-interference.

Auto Switching When Reverse:
1.Under power-on condition:When reverse gear is engaged,the system automatically switches from DVD/VCD video to
backup camera video,and when parking is completed,it switches back automatically.
2.Under power-off condition:When reverse gear is engaged,the system automatically starts on to find the camera
signal and display backup video.When parking is completed,it switches off automatically

After - sales service

1.Sample is available for further evaluation
2. Warranty:3year
3.Offer long-term OEM/ODM service

Safety:
1. The rear camera display is only a visual assist device when reversing the vehicle. The image on the screen may be different from the actual conditions. Always look directly with your eyes and drive carefully.
2.Backup as alow as possible since high speeds might limit your reaction time to stop the vehicle.
3.The displayable range varies depending on the vehicle loads and road conditions.
4.Do not use the rear view camera system with the tailgate open.
5.Objects under the bumper or around the bumper can not be displayed.
