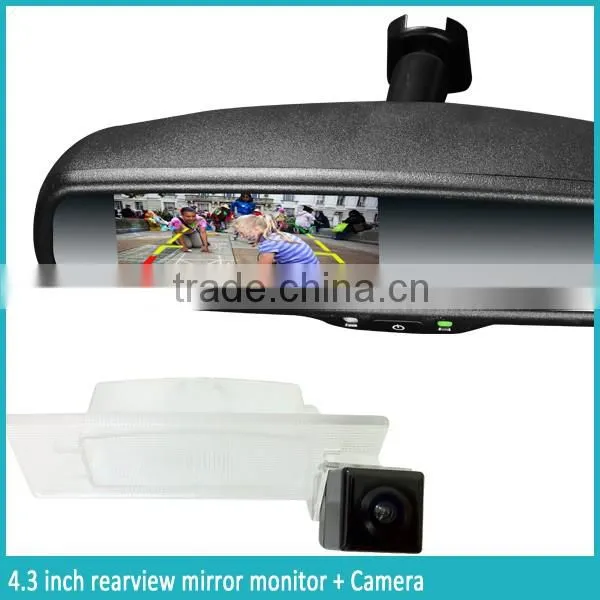

EK-043LA HOT SALE!!!4.3 inch lcd monitor with 2 video input rearview mirror automatic car parking system near license plate frame
Features

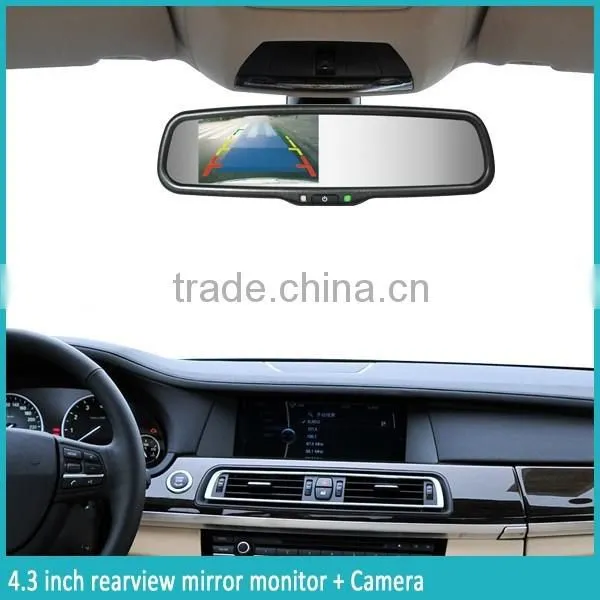

1.Back-up camera display
2.Automatically brightness display
3.016 inch glass and car factory OEM bracket

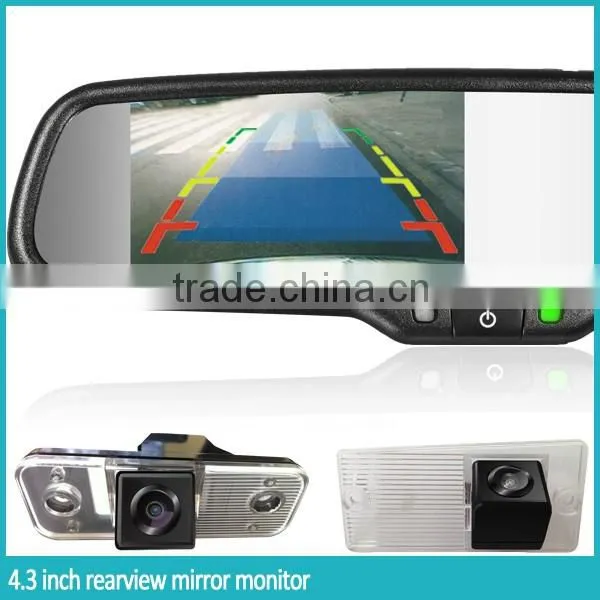

4.Adjustable Back up guide line

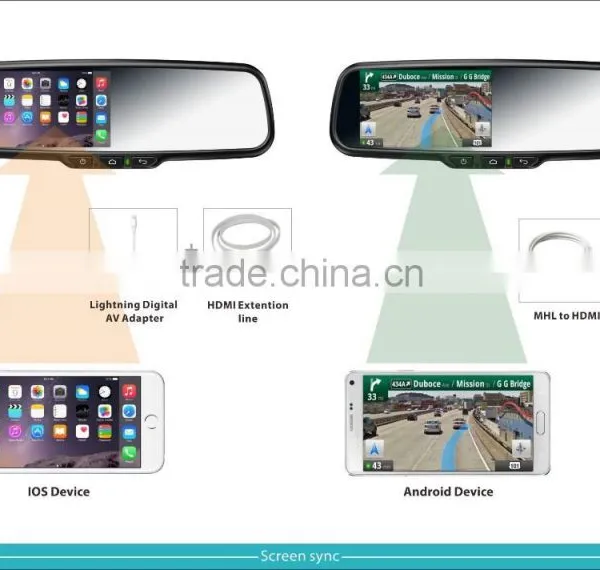

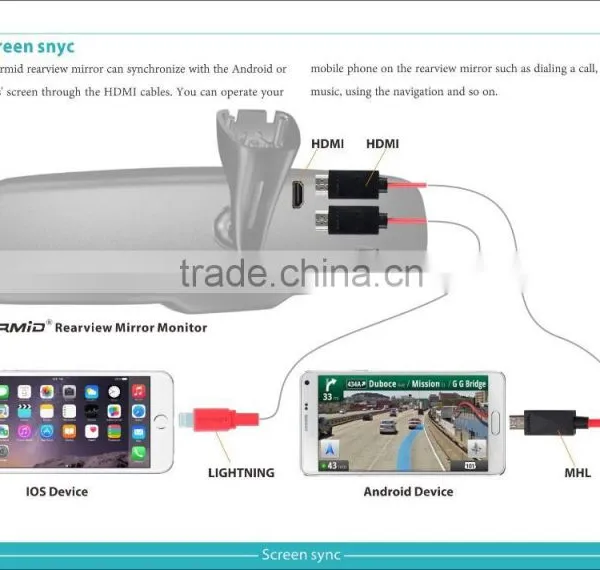

5.Wireless Miracast compatible with Android / iOS smart phones (optional)
Specifications
1.Screen Size: 4.3 inch
2.Display Screen: TFT-LCD
3.Aspect Resolution: 480(H) X 272(V) (4.3inch)
4.Working Voltage: DC 12V
5.Three video Inputs: Two RCA video Inputs; ( Reverse trigger wire)
6.Signal System: PAL / Auto / NSTC
7. E-mark, FCC, ROHS, C-Tick
8. material: ABS+PC
Technical Specification
1.Operating Voltage9.0 -16.0 Vdc
2.Operating Temperature-40oC ~ +85oC
3.Storage Temperature-40o C~ +100oC
4.Maximum Current<450 milliamps
5.High Reflectance>70%
6.Low Reflectance6~10%
7.Time to change reflectance from 55% to 15% at 25o<6.0 seconds
8.Time to change reflectance from 15% to 55%<8.0 seconds
9. They are “hands off”, no manual adjustments are required leaving the driver free to watch the road.
10. The are variably dimming, meaning they are continually dimming and clearing to the precise level necessary to optimize vision.
11. In the darkest state, the minimum reflectance is only 7% and increases from there depending on the glare conditions.

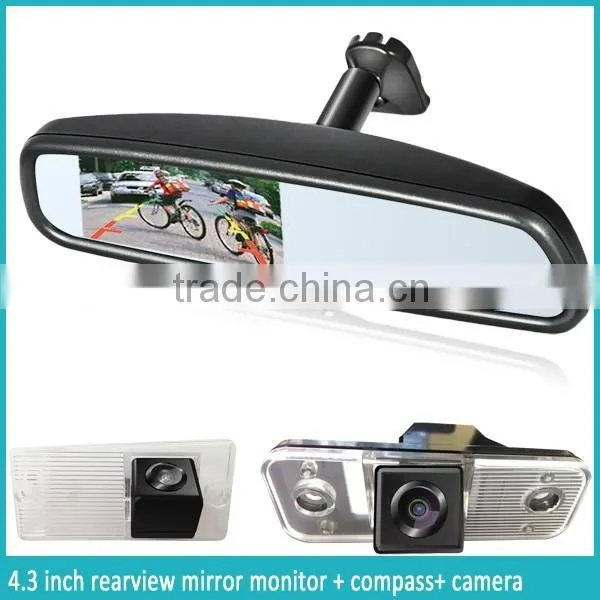

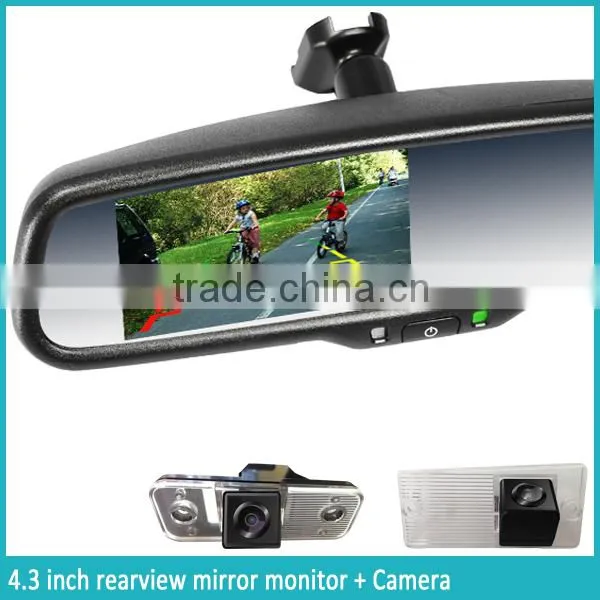

12 Auto-Dimming Mirrors use advanced “Electrochromic” technology providing maximum glare management. 3.5inch or 4.3inch car rearview mirror monitor
Material quality
1,wireharness
6 meter or 10 meter
2,shell
ABS+PC, heat resistance, low temperature resistance, impact resistance
3,camera lens
Nano-glass lens, heat resistance, water shock, anti-corrosion, long working hours can not afford mist.
Unit Dimension (L*D*H) 26.5*8*3.2
Qty per Export Carton 10pcs
Unit Packing: (L*W*H) 31*17.5*6.5cm
Export carton (L*W*H) 35.5*32.7*38cm
Unit Packing (G.W.) 1.3KG
Export carton (G.W.) 13KG
MOQ 100PCS
20'FT Qty 3000pcs
Parking sensor Features:
1.Automatic activation when the reverse gear is chosen
2.Clearly visible display indicating the direction and distance of the obstacle
3.Integrated beeper for immediate alert
4.Easy-to-install, does not require maintenance
5.Does not run on battery power when the vehicle is parked and the engine switched off
6.Type approved in conformity with European regulations on electromagnetic compatibility

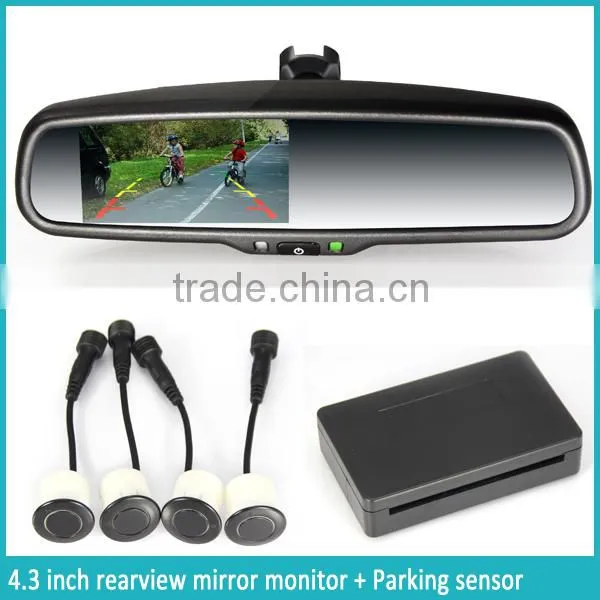

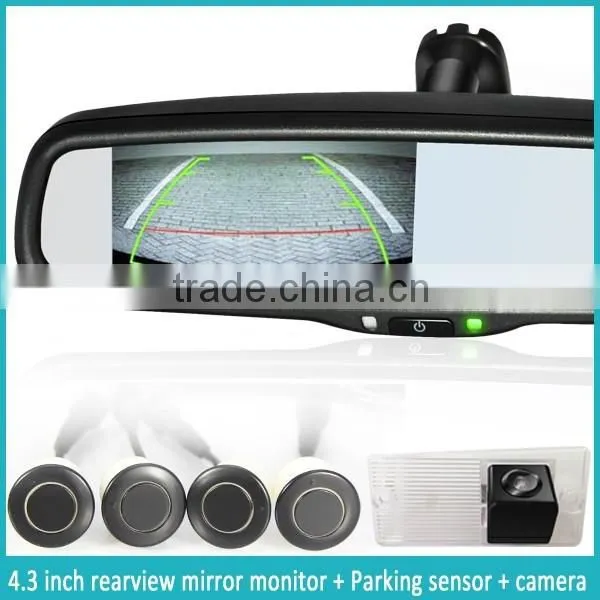

4.3inch car parking sensor rearview mirror monitor
1. Parking sensor with memory function auto activates when reversing;
2. Bi Bi voice warning, 4 replaceable sensors, Repaintable, Detect problems ;
3.Auto display reverse camera with night vision in high resolusion . (universal or special camera model for your choice)
4. Auto alarm when sensor head is damaged;
5. Detecting distance is 30cm, 50cm or 70cm, to calculate spare wheel or bike in the backside into the distance.
6. OE Grade High-quality parking sensor with high unti-interference.
Auto Switching When Reverse:
1.Under power-on condition:When reverse gear is engaged,the system automatically switches from DVD/VCD video to
backup camera video,and when parking is completed,it switches back automatically.
2.Under power-off condition:When reverse gear is engaged,the system automatically starts on to find the camera
signal and display backup video.When parking is completed,it switches off automatically
After - sales service
1.Sample is available for further evaluation
2. Warranty:3year
3.Offer long-term OEM/ODM service
Safety
1. The rear camera display is only a visual assist device when reversing the vehicle. The image on the screen may be different from the actual conditions. Always look directly with your eyes and drive carefully.
2.Backup as alow as possible since high speeds might limit your reaction time to stop the vehicle.
3.The displayable range varies depending on the vehicle loads and road conditions.
4.Do not use the rear view camera system with the tailgate open.
5.Objects under the bumper or around the bumper can not be displayed.
How to install
Skype:Globalcarmedia99
