Help CenterSYD-8 Filling and Sealing Machine for Stick Bag
Related Products
Applications:

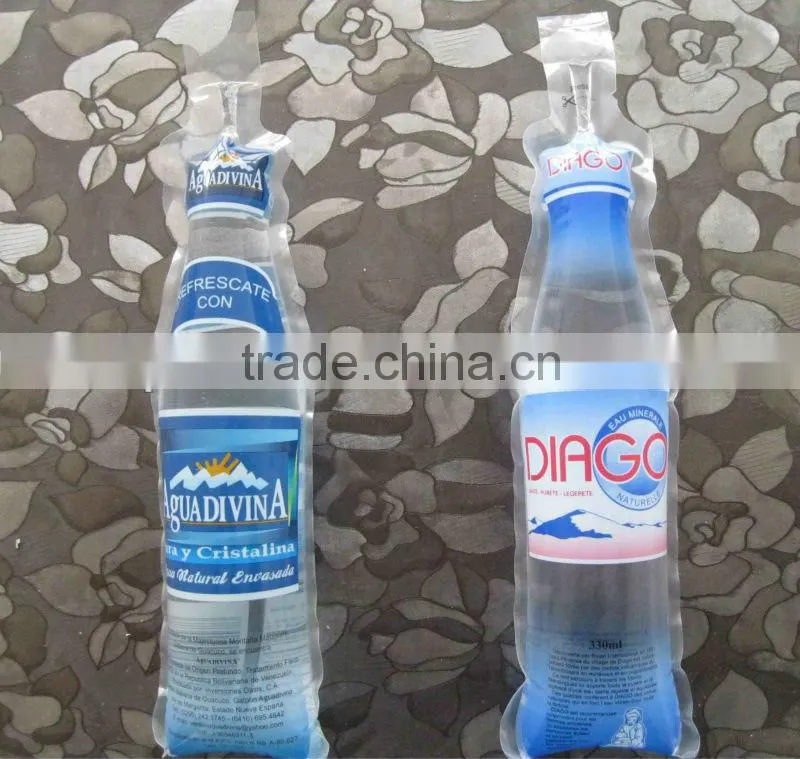

The stick bag is a popular international packaging shape. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
It is widely used in dairy products such as milk, yogurt, lactic acid drinks, Japanese tofu, soy sauce, cooking oil, drinks, mineral water, cleaning supplies, alcohol, etc.
Features:

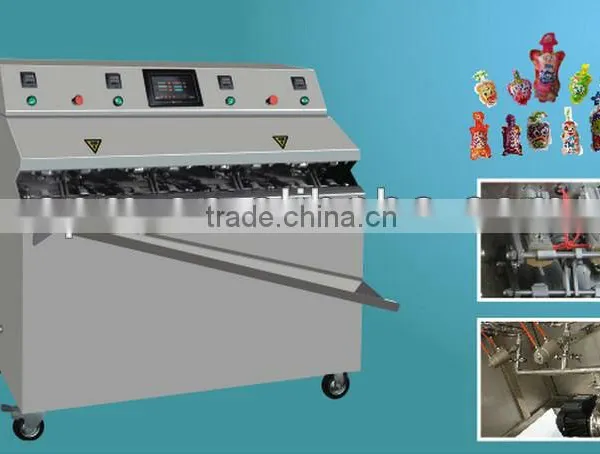

SYD-8 Filling and Sealing Machine for Stick Bag adopts 304 stainless steel, Chinese and English man-machine interface, and PLC system control.
Visualization operations, configure the touch screen.
Reliable metering, solid sealing, and easy to operate.
It adopts pressurized filling in airless. And it can avoid secondary pollution.
It is upgraded SYD. It has 4 independent workstations, 1 workstation 2 nozzles. It is automatic entire process by PLC control system, such as filling and sealing, dropping bags, etc. It does not have to manually point each workstation to start each action.
One worker one machine. The max packing rate is 3500 bags/hr.
You can freely select automatic control mode, time control mode or manual control mode.
Technical Data:
Model |
SYD-8 |
Bag material |
BOPP laminated LDPE, various shapes pre-shaped bags |
Film thickness |
>0.18mm |
Filling nozzles |
8 |
Workstation |
4 |
Filling volume |
50-500ml (Custom) |
Filling accuracy |
±2% |
Packing rate |
3500 bags/hr |
Power input |
220V 50Hz or 220V 60Hz or 110V 60Hz |
Power |
0.8-1.6 Kw |
Air Pressure |
0.5-0.8 Mpa |
Air Consumption |
0.25-0.50 m3/min |
Net weight |
≈150 kg |
Overall dimension |
1200×800×1200mm(L×W×H) |
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
We provide a one year warranty, and a spare set of wearing parts.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
