Home > Auto, Motorcycle Parts & Accessories > Car Safety > Car Rearview Camera > Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer

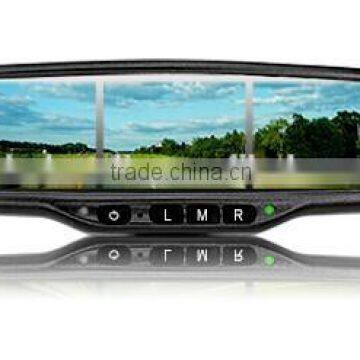

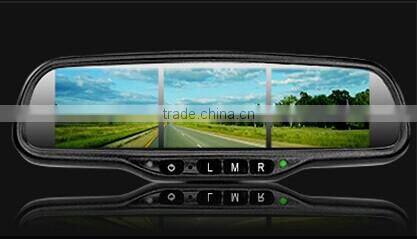

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer thumbnail-3

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer thumbnail-4

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer thumbnail-5

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer thumbnail-6

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer photo-1

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer photo-2

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer photo-3

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer photo-4

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer photo-5

Multiple Display Rearview Mirror With Triple/double Monitor 4/6 Videos Input Special for Truck and Trailer photo-6

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Reverse Camera

Voltage:

DC 12V

Power:

DC 12V

Contact Supplier Request Quote Chat Now

Shenzhen Global Media Electronic Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Reverse Camera

Voltage DC 12V

Power DC 12V

Car Make FOR any car special for truck or motor home

Place of Origin Guangdong, China

Brand Name OEM

Model Number HK04343

Warranty 12 Months

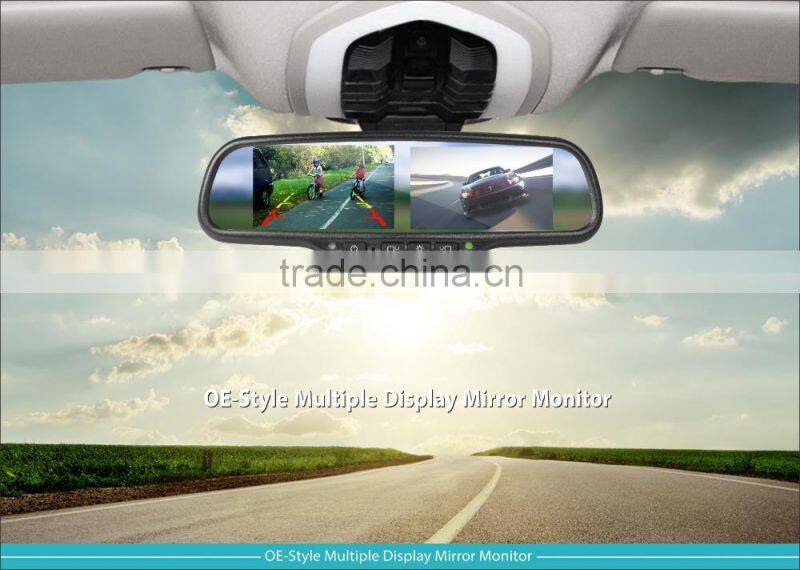

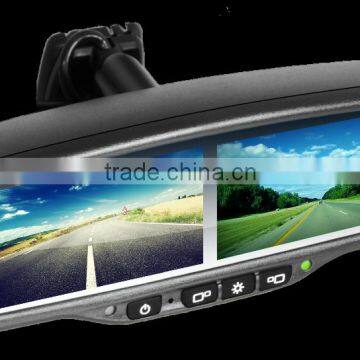

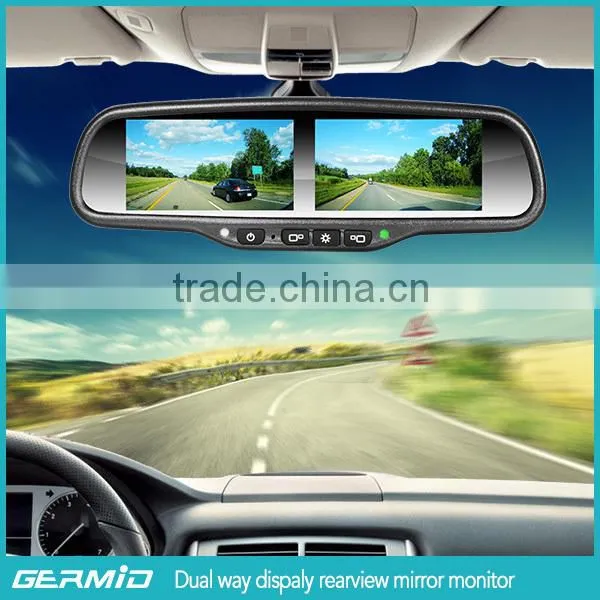

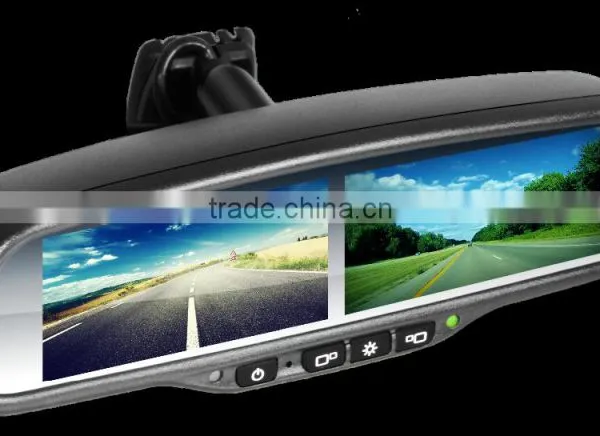

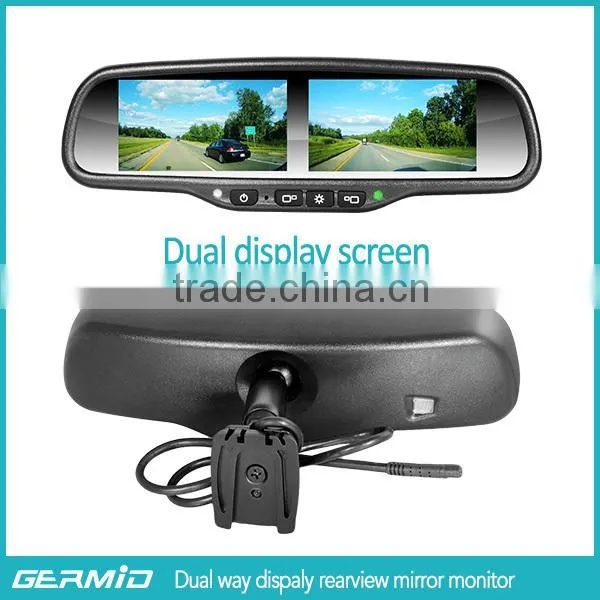

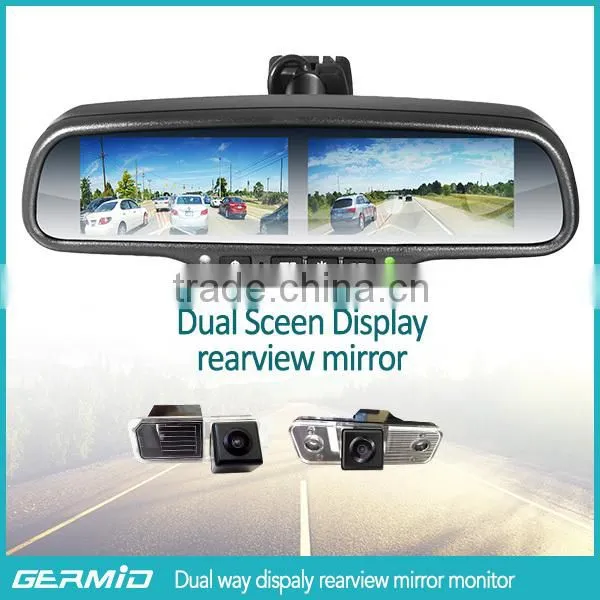

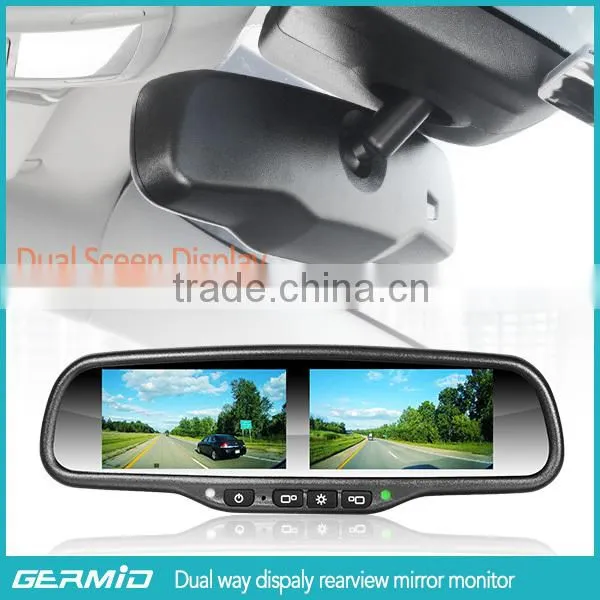

Car rear view mirror with dual LCD display screens

3/4/6-way video input
Back up camera display
Automatic brightness adjustment
4.0mm glass and 23mm car factory OEM bracket

>Screen Size: 4.3inch

>Display Screen: TFT-LCD

>Aspect Resolution: 480(H)*272(V)

>Working Voltage: 10V~30V

>Working Temperature: -20℃~+75℃

>Four ways Video input

>Signal System: PAL/Auto/NSTC

>Adjustable guide line (option)

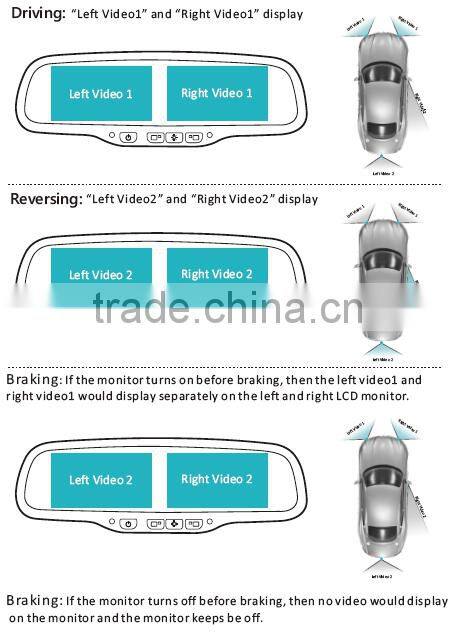

How to display the rearview mirror screen.

The video input of Left Video1 and Right Video1 are controled by CTR1.

When CTR1 is connected DC 12~24V,then no matter what state the left and right screen of the mirror are, it will be switched to the Left Video1 and Right Video1 video screen display.It recommended that CTR1 is connected to the reversing light.

The video input of Left Video2 and Right Video2 are controled by CTR2.

But it’s priority is inferior than CTR1,when CTR1 and CTR2 connect power at the same time,then the rearview mirror screen will display two-video(Left Video1,RightVideo1) controled by CTR1 only.Only when CTR2 connected power,if the screen is off,then it will keep off on.If the screen is on,the left and right screen of rearview mirror will switch to Left Video2 and Right Video2.

Multiple Display rearview mirror is special for family sedan/RV Types.It will give you the enjoyment of multiple points of view and let everything under control.

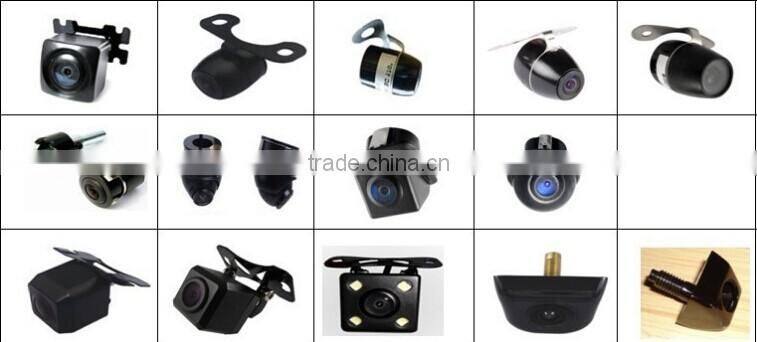

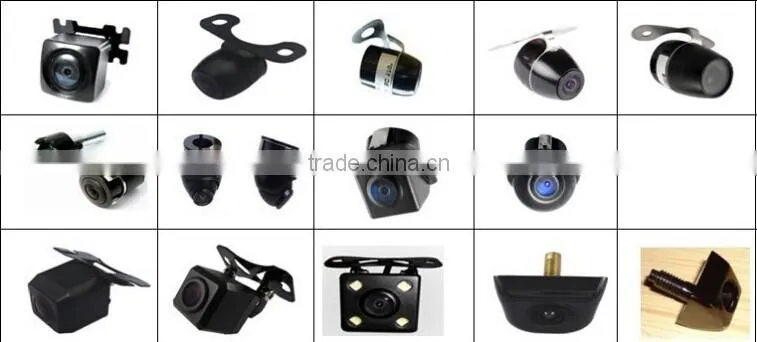

The effect will be better if you use good cameras.

> View angle:170°
>  TV Lines:480
>  Water-proof:IP68
>  Minimum Illumination:0.1Lux
>  Supply voltage : 12V ±4V
>  Operating temperature :-20°C to+80°C
>  Storage temperature: –40°C to +100°C

Company information :
Founded in 2007, GERMID has been devoting in developing and manufacturing car interior rearview mirror. Currently,We are one of the most professional manufacturers of car interior rearview mirror . With an annual output by 1.2 million, GERMID is the OEM supplier of car interior rearview mirror for car factories such as TOYOTA,FIAT etc. GERMID has been approved of TS-16949 Quality System. With the continuous improvement of the quality , we will rank in the World-class OEM suppliers of auto rearview mirror and root in this industry gradually.

The video of our company:http://youtu.be/ggMdMgKCrvA

http://youtu.be/IW8-warXVLQ

Feedback Policy:
Customer is always NO.1
We care about our valued customers and understand the concerns and frustrations you might have, and will try our best to resolve the issues.. We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!
Contact us first before leaving a negative, we will find a solution to meet your requirement and enhance the satisfaction.

Shipping:
1. Tracking number will be emailed to you once we have shipped your order. If there is any delay, it may be caused by bad weather or custom inspection. If you still can not receive the item within 20 DAYS, pls contact us.
2.We try our best to make you get desired products as soon as possible. In case you receive wrong products due to shipping error, please contact us for exchange or refund. If it's damaged , please refuse to accept and contact us as soon as possible.
3.We are not responsible for wrong or undeliverable address. Please provide us your full address with Telephone number and make sure your shipping address is correct and deliverable.If you need to change your address, please change it in PayPal first before you pay.

After-sale Service:
1. Fast Service:
Pls feel free to contract us by Trade Manager or Email; All Message will be replied within 24 hours, except during holidays and weekends. If you do not get our reply,please resend;
2. Competitive Price:
You could get a very competitive price,but we can not promise that our price is the lowest considering the quality; We regard price ratio and quality more important than the low Price. BUY MORE, SAVE MORE! The more you buy, the lower price you will get!
3. Product quality:
We would control our products quality strictly,All items are checked and packed in good conditions before delivery;It is an very effective way to reduce the percentage of products which are sent back for repair and save the cost for our oversea partners;
4. Fast Delivery:
Normally Samples can be delivered in 3-5 days, Mass production delivered in 10-20 working days;
5. Warranty:
We provide 2 years warranty for all products,except our GPS mirror(1 year). If the goods is defective, please notify us within 3 days after arrival.
6. Shipping way:
Shipping port is Shenzhen, China mainland. Parcels will be deivered by DHL, UPS, FEDEX,or EMS etc, but we'll choose the most convenient and speedy way.
