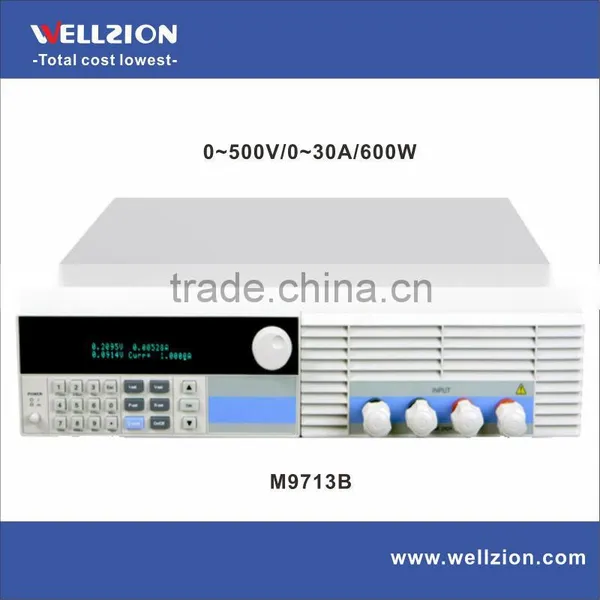

M9713B,0~500V/0~30A/600W Battery Test Programmable DC Electronic Load

M9713B,0~500V/0~30A/600W Battery Test Programmable DC Electronic Load thumbnail-1
M9713B,0~500V/0~30A/600W Battery Test Programmable DC Electronic Load photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Model Number:
M9713B
Power:
Electronic
Contact Supplier Request Quote Chat Now
Xiamen Wellzion Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Model Number M9713B
Power Electronic
Usage Strength Testing Machine

Specifications

0~500V/0~30A/600W
RS232/RS485/USB
Battery testing and short-circuit function
Supporting external trigger input and output

Features and Benefits:

  • Six high speed operation modes: CC,CR,CV,CW,CC+CV,CR+CW
  • Over current, over voltage, over power, over heat, polarity reversed protection
  • High-luminance VFD screen with two lines& four channels display
  • Intelligent fan system fan will be automatically initiated according to the temperature
  • Soft start time setting, carrying the power supplier according to the voltage value set
  • Battery testing and short-circuit function
  • Available of dynamic testing and rising edge and falling edge setting
  • Supporting external trigger input and output

Application:

Production line(cell phone charger, cell phone battery, electric vehicle battery, switching power supplier, linear power supplier), research insititutes, automotive electronics, aeronautics and astronautics,ships, solar cells fule cell, etc.


Specifications

Input Rating

 		 Power 600W
Current 0-30A
Voltage 0-500V
CC Mode Range 0-12A 0-120A
Resolution 1mA 10mA
Accuracy 0.05%+0.05%FS 0.1%+0.05%FS
CV Mode Range 0.1-19.999V 0.1-150V
Resolution 1mV 10mV
Accuracy 0.03%+0.02%FS 0.03%+0.02%FS
CR Mode Range 0.03Ω -10K 0.03Ω -5K
Resolution 16 bit 16 bit
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS
CW Mode Range 0-600W 0-600W
Resolution 1mW 10mW
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS
V Measurement Voltage 0-19.999V 0-150V
Resolution 1mV 10mV
Accuracy 0.015%+0.03%FS 0.015%+0.03%FS
I Measurement Current 0-12A 0-120A
Resolution 0.1mA 1mA
Accuracy 0.05%+0.08%FS 0.1%+0.08%FS
W Measurement Watt 100W 600W
Resolution 1mW 10mW
Accuracy 0.1%+0.1%FS 0.1%+0.1%FS
Battery Measurement Battery Input: 0.5-120V; Max. Measurement: Capacity=999/H;   Resolution=0.1mA;   Time Range=1S-16HS
Dynamic Measurement Transition  List: 0-25kHZ; 2.5A/uS;   T1& T2: 60uS-999S;   Accuracy: + 15% offset+10% FS
CC soft-startup Time 1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS    Accuracy: + 15% offset+10% FS
Short Circuit Current(CC) 13.2A 132A
Voltage(CV) 0V
Resistance(CR) 13mΩ
Temperature Operating 0— 40º C
Nonoperating – 10º C— 70º C
Dimension W*H*D(mm) 428*103.5*453.5
Weight kg 17.6
