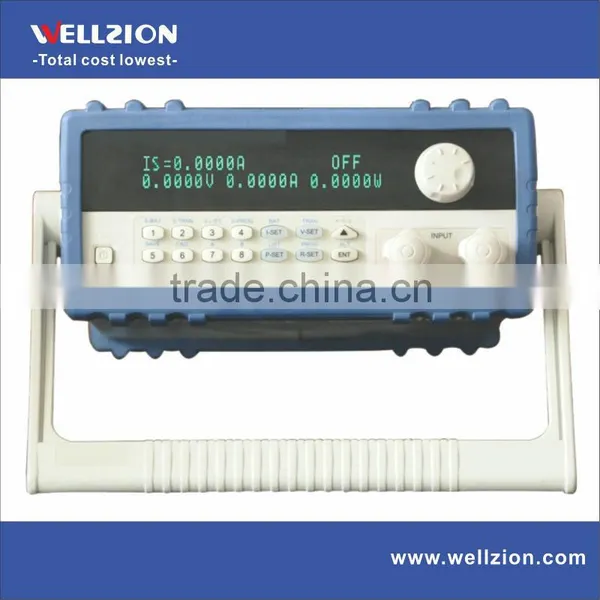

CH9712,0~120V/1mA~30A/300W,Battery Test,DC Electronic Load,programmable Electronic Load

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Model Number:

CH9712

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Model Number CH9712

Specifications

0~120V/1mA~30A/300W
High-light and high-visibility VFD display
High resolution of 0.1mV and 0.1

Functions and Benefits:

Test functions of OCP and OPP can accurately capture critical parameters
Modes of CC, CV, CR, CP
Battery test mode can automatically record the discharge time and the capacity
The dynamic transition time of 0.1mA can effectively detect the power dynamic response
List test can flexibly set test mode and time and finally judge the test result
Remote test function and multiple groups of data storage
Intelligent fan control and various protection measures
Standard case dimension makes it easy to mount

SPECIFICATIONS

Rated value	Input voltage	0~120V
	Input current	1mA~30A
	Input power	300W
	Range	Accuracy	Resolution
Load accuracy	0-18V	±(0.05%+0.03%FS)	1mV
	0-120V/500V	±(0.05%+0.03%FS)	10mV
	0-3A	±(0.05%+0.05%FS)	0.1 mA
	0-30A/60A	±(0.05%+0.05%FS)	1 mA
Rated voltage mode	1.5V-18V	±(0.05%+0.03%FS)	1mV
Rated voltage mode	1.5V-120V/500V	±(0.05%+0.03%FS)	10mV
Rated current mode	0-3A	±(0.05%+0.05%FS)	0.1 mA
Rated current mode	0-30A/60A	±(0.05%+0.05%FS)	1 mA
Rated resistance mode(when input values of voltage and current ≥10%FS)	0.05Ω-5Ω	±(0.2%+0.2%FS)	0.001Ω
	0.5Ω-50Ω	±(0.1%+0.1%FS)	0.01Ω
	5Ω-500Ω	±(0.1%+0.1%FS)	0.1Ω
	500Ω-5KΩ	±(1%+1%FS)	1Ω
Rated power mode(when input values of voltage and current ≥10%FS)	0-50W	±(0.1%+0.1%FS)	1 mW
	0-150W	±(0.1%+0.1%FS)	1 0mW
	0-300W	±(0.1%+0.1%FS)	0.1W
Voltage measurement accuracy	0-9.9999V	±(0.05%+0.03%FS)	0.1mV
	10.000-99.999V	±(0.05%+0.03%FS)	1mV
	100.00-120.00V/500.00V	±(0.05%+0.03%FS)	10mV
Current measurement accuracy	0-9.9999A	±(0.05%+0.05%FS)	0.1 mA
Current measurement accuracy	10.000-30.000/60.000A	±(0.05%+0.05%FS)	1 mA
Battery test function	Input= 0.8-120V/500V Max measurement capacity= 999A/H
Battery test function	Resolution=0.1mA Timer range=1~60000sec
Dynamic test mode	T1&T2(A or B test time):0.1mS-999S Error<2.5% + 0.1mS
Protection range	>specified condition 5%
Impedance in the input terminal	≥200KΩ
Dimensions	230mm100mm350mm
Weight	6.5Kg
