AE2300L, 160km Distance 30/28 Dynamic Range OTDR

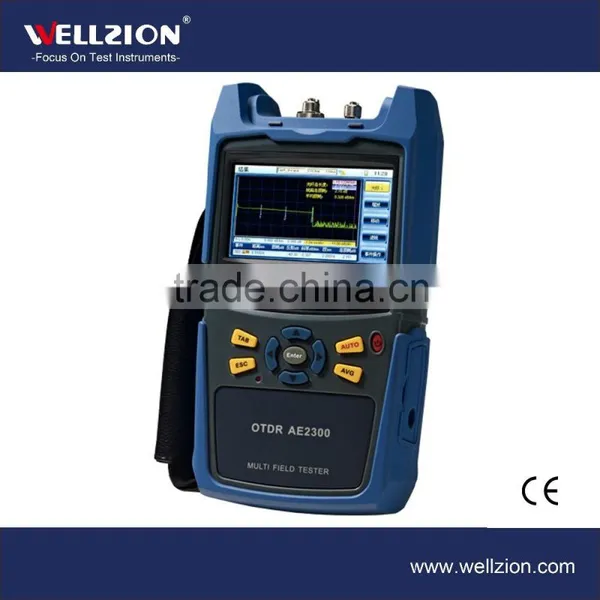

The AE2300 is a high performance, handheld OTDR, designed for installation and maintenance of fiber optics networks. This lightweight and rugged OTDR includes a VFL, enabling the user t o quickly find impairments and location of the faults.
- One-button auto test simplifies the and location faults
- Pass/fail analysis accelerate result interpretation and ensure consistent results
- Highly accurate measurement with minimum deadzone of <0.8m
- Fast measurement speed, which can measure a 100 km fiber within 30 seconds
- Rugged design is vibration, dust and humidity proof with 4.3 TFT touch screen
- Long battery life allows user to test all day without recharging the batteries
- Live fiber detection for warning user of a live fiber
| Model | AE2300L | AE2300 | AE2300H |
| Wave length | 1310/1550 | 1310/1550 | 1310/1550 |
| Dynamic Range(dB) | 30/28 | 34/32 | 36/34 |
| Event DZ (m) | 3 | 1.5 | 0.8 |
| Attenuation DZ (m) | <15 | <8 | <5 |
| Distance | 3m~160km | ||
| Pulse Width | AE2300L/AE2300: 5ns~20μs, AE2300 3ns~20μs | ||
| Measurement Time | User-defined | ||
| Distance Uncertainty | ±(1m+0.0005%×Distance + Sampling Resolution) | ||
| Loss Threshold | AE2300L/AE2300: 0.05dB, AE2300H 0.03dB | ||
| Loss Resolution | 0.001dB | ||
| Distance Resolution | 0.05m | ||
| Linearity | 0.04dB/dB | ||
| Sampling Points | 128000 | ||
| Display | 4.3 inch 16:9 TFT Touch Screen | ||
| Data Storage | >4000 | ||
| Optical Adapter | FC/PC, SC/PC | ||
| Interface | USB, RJ45 | ||
| Battery | Lithium Battery; Charging <4 hours, Operating time >8 hours | ||
| Weight | <1kg | ||
Interface (RJ45, USB)
RJ45: Remote control and data sharing
USB : For transferring stored results
Optical Adapter: Easy to replace and clean
Visual Fault Locator(VFL): High power visual fault locator could be used to locate fiber problems quickly.
Auto Diagnosis and Auto Correction
Optical adapter detection and protection:
AE2300 triggers an alarm when light injection has been found at the optical adapter detects light.
Optical adapter connection detection
Warning is provided if optical adapter is damaged in order to avoid influencing the test result.
Self calibration and correction: Auto calibration function could self-calibrate the instrument.
Model AE2300L AE2300 AE2300H
Wave length 1310/1550 1310/1550 1310/1550
Dynamic Range(dB) 30/28 34/32 36/34
Event DZ (m) 3 1.5 0.8
Attenuation DZ (m) <15 <8 <5
Distance 3m~160km
Pulse Width AE2300L/AE2300: 5ns~20μs, AE2300 3ns~20μs
Measurement Time User-defined
Distance Uncertainty ±(1m+0.0005%×Distance + Sampling Resolution)
Loss Threshold AE2300L/AE2300: 0.05dB, AE2300H 0.03dB
Loss Resolution 0.001dB
Distance Resolution 0.05m
Linearity 0.04dB/dB
Sampling Points 128000
Display 4.3 inch 16:9 TFT Touch Screen
Data Storage >4000
Optical Adapter FC/PC, SC/PC
Interface USB, RJ45
Battery Lithium Battery; Charging <4 hours, Operating time >8 hours
Weight <1kg
