Help CenterHigh Frequency Induction Heating Machine 45kw
Related Products
-
High Frequency Induction Heating Machine 35kwUS$ 3,000 - 4,500MOQ: 1 Unit -
High Frequency Induction Heating Machine 25kwUS$ 1,800 - 2,500MOQ: 1 Unit
-
Induction Heating Machine 300kwUS$ 10,000 - 20,000MOQ: 1 Unit
-
High Frequency Induction Heating Machine 70kwUS$ 6,500 - 8,500MOQ: 1 Unit
-
High Frequency Induction Heating Machine 25kwUS$ 1,800 - 2,500MOQ: 1 Set
HF-45AB
Main specifications:
Maximum input power: 45KW
Oscillating frequency: 30-80KHz
Heating current: 10-95A
Maximum input current: 68A
Input voltage: 380VAC 3phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 6L/min
Auto heating time: 1-99seconds
Auto retaining time: 1-99seconds
Auto cooling time: 1-99seconds
Weight and dimension:
Model |
Net weight(KG) |
Size: L x W x H (mm) |
Packing weight |
Pacing size: L x W x H (mm) |
HF-45AB generator |
55KG |
620x310x530mm |
132KG |
720x680x630mm |
HF-45AB transformer |
42KG |
510x270x400mm |
Main characteristics:
- IGBT module and inverting technologies, better performance ,higher reliability and lower maintenance cost;
- 100% duty cycle, continuous working is allowed at maximum power output;
- constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
- display of heating power and heating current and oscillating frequency;
- multi-display functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and machines can be repaired easily.
- simple to install, installation can be donne by unprofesstional person very easily, connection water and power can be finished in a few minutes.
- light weight, small size.
- different shape and size of induction coil can be changed easily to heat different parts.
- advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
- the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space to increase the reliability; with the small size and light weight of the separated transformer, it is conveient to use in the production line and easily assembled inside the machinery or moved mechanism.
Main application:

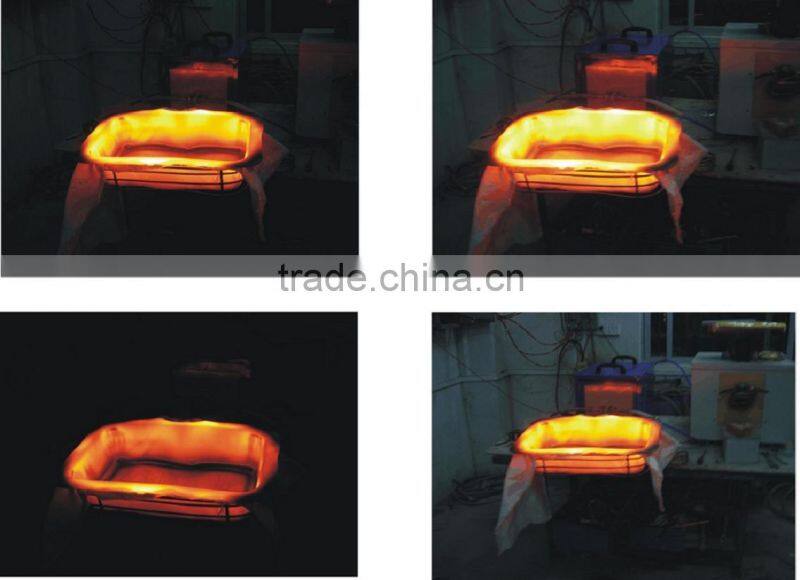

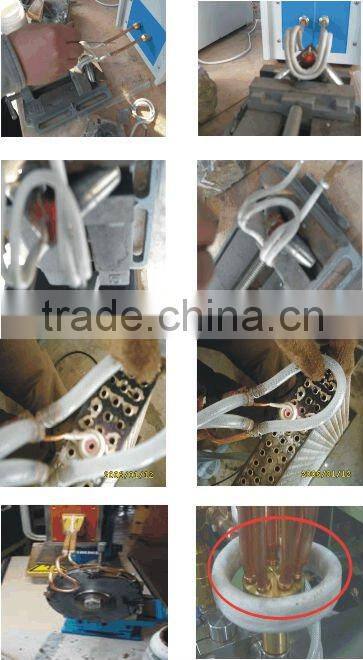

1. heat treatment of gear and shaft 2. brazing of diamond tools 3. brazing of electrical kettle bottom 4. tube heating for coating 5. heating of stainless steel vessel for annealing 6. brazing of machining tools 7. melting of all kinds of metals 8.brazing of copper & brass tube and connectors in air conditioner manufacturing factories and so on. 9. heating of rods for forging 10. quenching of parts. Etc.
...
