HOT AND NEW SIM68 MODULE

HOT AND NEW SIM68 MODULE thumbnail-1
HOT AND NEW SIM68 MODULE photo-1
US$ 23 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SIMCOM
Model Number:
SIM68
Contact Supplier Request Quote Chat Now
Shenzhen Baiyi Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SIMCOM
Model Number SIM68

Specifications

Technology:GPS/GLONASS
Dimensions:15*13*2.4 mm

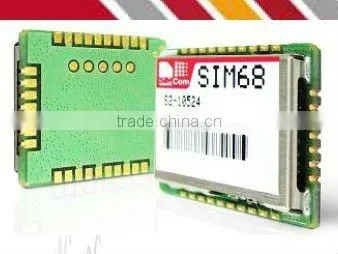

SIMCom Wireless Solutions (“SIMCom”) launched a new module SIMCom® SIM68TM. SIM68 is a GNSS module in a SMT type which can be embedded in the customer applications.
SIM68 is a GNSS module compatible with GPS/Galileo/QZSS and Glonass systems in a SMT type . It is designed with ST’s high sensitivity navigation engine, which allows you to achieves high levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF).


Mechanical data
*Dimensions: 15*13*2.4mm
*Weight: 1g
*Package: 34pin LCC

Interfaces
*Serial interfaces 3UART, SPI ,USB,2CAN,I²C
*Digital I/O  STDBYN input
      STDBYOUT output
      Pulse-pre-second (PPS)  output
*Analog I/O   2ADC input
*Protocols     NMEA
        ST-NMEA

Prformance data
*Receiver type  32 tracking channel and 2 fast acquisition channel compatible with  GPS ,Galileo ,QZSS and Glonass systems
*Max update rate  10Hz
*Sensitivity2
     Tracking     -162dBm
     Navigation   -160dBm
     Cold starts  -148dBm
*Time-To-First-Fix3
      Cold starts     35s
      Warm starts   24s
      Hot starts       1s
*Accuracy
 Automatic Position4   1.5m CEP
*Operation temperature     -40°C to +85 °C
*Storage temperature        -45°C to +125 °C

Electrical data
*Power supply      3.0V  to 3.6V
*Power consumption2,5
     -Acquisition    100mA
     -Tracking        65mA
     -Backup        100uA
*Antenna type        Active and passive
*Antenna power       External

Support product
*SIM68 EVB KIT with USB V2.0 full speed interface

————————————————————
1.Autonomous  ST-AGPS mode
2.Demonstrated in lab
3.All SV @ –130 dBm
4.50% 24 hr static, -130dBm
5. @3.3V with a passive antenna

HOT AND NEW SIM68 MODULEHOT AND NEW SIM68 MODULEHOT AND NEW SIM68 MODULE
