1306 (X 130mm Y 60mm)Computer-controlled Cycle Machine with Input Function
The sewing machine flexibly supports the sewing of small articles such as labels and emblems. The sewing machine's small sewing area promises ease of use when handling small articles, thereby enabling smooth sewing operation.

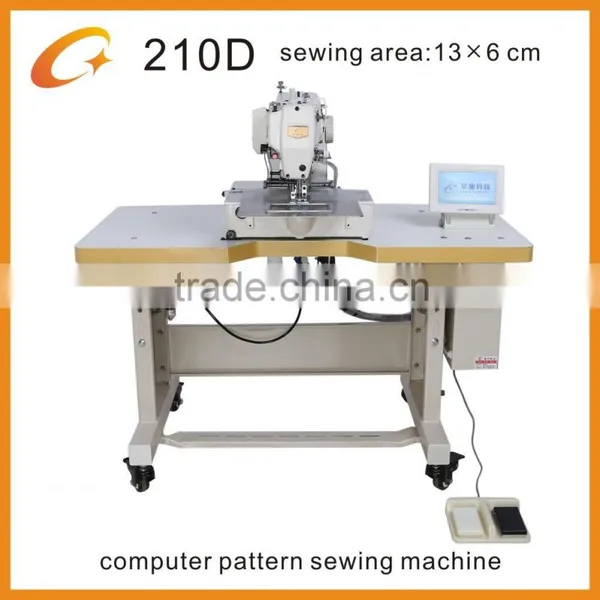

Model |
XC-210D |
Sewing Scope |
130*60mm |
|
Max speed ( rpm )( <3mm ) ) Max speed is variant according to sewing machine |
Recommend speed: 2500 Max speed: 2500 |
Speed scope ( rpm ) |
200-2500 |
Feeding |
Intermission/Continuous |
Stitch gap |
0.1-12.7mm ( Min gap 0.1mm ) |
Max stitch |
8000stitch/pattern |
Max pattern |
999 |
Scale |
X, Y 10-200% ( min 0.1%) |
Mirror |
X, Y and origin |
Rotation |
360 |
Needle |
Based on thickness, DP*17 #18 |
Shuttle |
Waver |
Press foot |
Pneumatic |
Outer press foot move range |
32mm |
Inner press foot move range |
20mm |
Inner press foot wove range |
4-10m |
Main motor |
AC Servo Motor |
Power supply |
AC220-240V |
CBM |
1200*800*1170mm |
Weight |
110kg |
a.The packing will use standard wooden case to ensure item not damage.
b.The shipping will confirm once the order be confirmed.
a.We have good technical team,experienced staff,perfect management system,produce high quality products to you.
XINGCHI SEWING MACHINE CO.,LTD is reaseach and development,production and sales of industrial sewing machine exterprise. The products used in handbags,case,leather goods,shoes,garment,sofa,golf,car ottomans,tents,mat,sports goods,exported to southeast asia,europe,africa,all over the world.
Our company is by "To the quality strives for the survial,to the reputation strves for the development" as the management theoty,with the exact part hardware,consummate technology,the advanced equipment is a prere-quisite,high quality design talents is support,the after-sale service with first-class sincerity is the guarantee,enjoys a high reputation.
Sample room:
Parts room:
Work shop:
INDIA GTE FAIR:
SHANGHAI CISMA FAIR:
Welcome to contact us for below machines,the best price with high quality goods to you:
- computer pattern sewing machine series
- 341cylinder bed series
- debburring machine for box & handbag
- cylinder bed series
- computer automation series
- post bed series
- lockstitch zigzag sewing machine series
- special function series
- double needles sewing machine series
- flat bed series
- lockstitch sewing machine with top and bottom
- post bed bottom feed sewing machine
- post bed series
- overlock sewing machine series
- leather skiving machine
- automatic plastic folding machine series
