Konic Gearbox (Dalian) Co., Ltd. is a manufacturer processing the components for the Gearbox and the whole gearbox as the reducer or the speed-up gearboxes.
Specialized in produced the customized gearbox and the components as the drawings.
For the processing, have a team with some experienced people to do the processing the key parts, do the quality control, and the technical support.
For the international business support, we have a team can give you a good service with more than 7 years export experience.

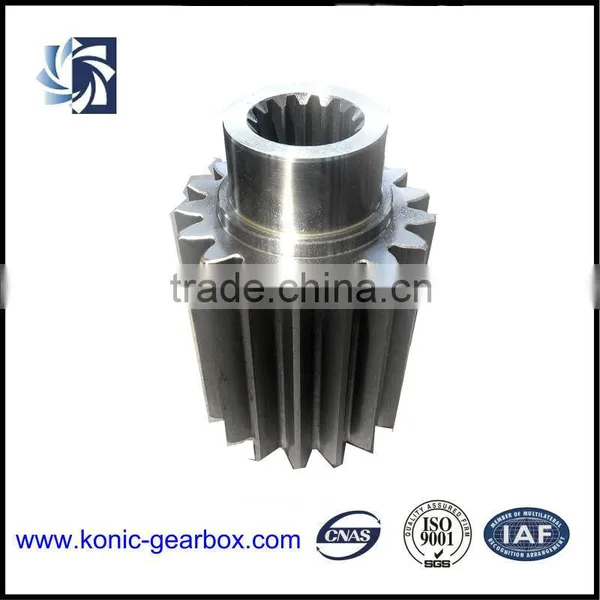

| Module m | 8 |
| Number of teeth Z | 17 |
| Basic rack profile Gear | DIN 867 |
| Helical angle Beta | o |
| Hand of helic | - |
| Reference dia D | 136 |
| Basic dia db | 127.798 |
| Addendum modification coefficient x | 0.5 |
| Addendum h | 12 |
| Addendum reduction k Mn | - |
| Quality class according to DIN3961 | - |
| Tolerance field according to DIN3961 | 7 |
| Testing Group according to DIN3961 | - |
| Base tangent length Max/min | 63.605/63.526 |
| Measured over toothnumber | 3 |
| Diametrical measure over pins or balls Max/Min | - |
| Pin or ball diameters Dm | - |
| Additional information | |
| 1)Definition according to DIN 3960 |
1. Are you a factory or trade company?
We are a factory located in Yingchengzi Town of Dalian City, the north of China.
2. How about your quality.
Konic Gearbox will supply the high quality products as your requirement.
3. What is your payment term?
For the customized products, 50% pay in advance, 50% against copy of B/L. Or send email to discuss this.
4. How long you can send your quotation to us.
After got all the detail information, we will quote within 2 work days.
5. What is your quotation element?
Drawing, material, weight, quantity and technical request.
6. Emergency contact information
Ms. Caroline Gao
Mob: +86-136-240-88148
