1.5V Magnetic Buzzer Brass Pin (ROHS APPROVED)
Negotiable
/ Piece
1 Piece(Min. Order)
- SHENZHEN
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | COSSON | |
| Model Number | KS-0904CY015R055 | Type | Buzzer |
Product Description
Specifications
1.1.5V Magnetic Buzzer brass pin2.Sell fast for all over the world.
3.good quality and competitive price

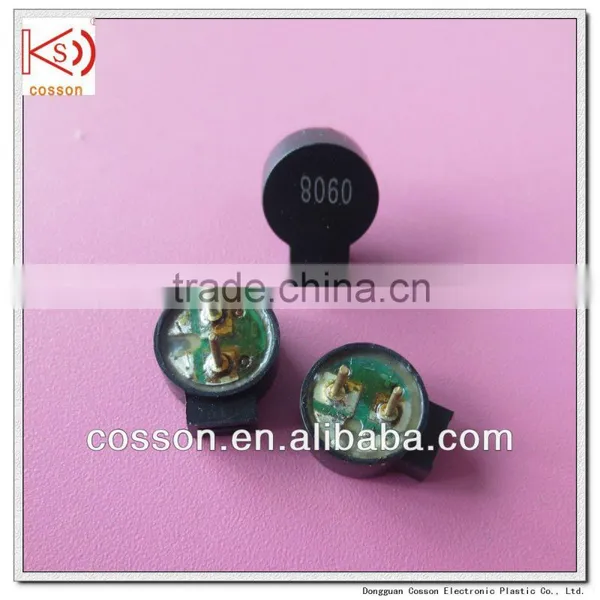

1.5V Magnetic Buzzer brass pin
Product Advantage:1.good quality and competitive price;
2.Shipped Fast;
3.Industry in first three;
4.Professional design and precise process;
5.Safety harmless;
6.Sell fast for overseas market;
Specification:
| Model | KS-0904CY015R055 | KS-0904CY03R16 | KS-0904CY05R42 |
| Rated voltage | 1.5V | 3.0V | 5.0V |
| Operating Voltage | 1.0V-3.0V | 2V-5V | 3V-7V |
| Rated Current(max.) | MAX.70mA | MAX.75mA | MAX.75mA |
| Coil Resustance | 5.5±1.0 Ohms | 16 ±2 Ohms | 42 ±3.0 Ohms |
| Sound Pressure Level(min.) | MIN. 75dB | MIN. 75dB | MIN. 75dB |
| Resonant Frequency | 2731Hz | 2731Hz | 2731Hz |
| Operating Temperature Range | -30°C TO 70 °C | -30°C TO 70 °C | -30°C TO 70 °C |
| Storage Temperature Range | -40°C TO 80°C | -40°C TO 80°C | -40°C TO 80°C |
