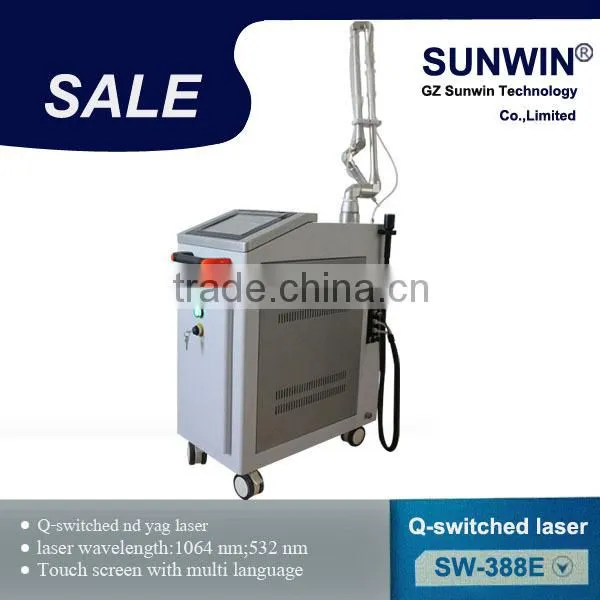

Approve Medical CE Q-switched 1064nm nd yag laser SW-388E
1.Treatment principle Henko - l2 synthetic pigment dispel treatment principle is to use laser selective principle of field and
tuning Q laser blasting mechanism, the precise doses of specific wavelength of energy in a very short
period of time on a specific structure base: in the dermis and epidermis of ink pigment particle, carbon
particles and other exogenous and endogenous pigment melanin cell disease.Using ultra narrow pulse
width, high peak power of laser, pigment suddenly heated by blasting, break for smaller particles,
break of debris particles through metabolism with macrophages after consumed by macrophages into
the lymph circulation and pigment were out of the body.Pigment gradually becomes weak, pigment
finally disappeared after periodic treatment, so as to achieve the goal of treatment.Abnormal expansion
of blood vessels of hemoglobin absorption frequency doubling the 532 nm laser, shrink blood vessels
for heating photocoagulation, vascular tissue due to hypoxia lesions in the areas of the fade of blood
vessels, achieve the goal of treatment.
Principle of selective laser heat treatment is accepted without damage the best way to treat skin
pigmentary lesions
2.photoelectric performance
1.laser output stability: ST plus or minus 10% or less;
2.the output energy replicability: Rj < 10%;
3.the laser output energy and the preset value display error: plus or minus 20% or less;
4.the area light spot diameter: 1-4 mm range is adjustable;
5.the cursor focus accuracy: the error of plus or minus 0.5 mm or less.
6.aiming the laser output power Pc should satisfy: 0.1 mW Pc or less 5 mW or less
7.multiple joints, light the adjusting range is: in a horizontal plane 45 or DHS, vertical height
above the ground within 60 cm - 80 cm.
3.machine features:
1.single pulse energy level display and adjust;
2. pulse energy level display and adjust;
3. pulse frequency and display adjustment;
4. work status and display adjustment.
4.parameters
1)working conditions
1.environment temperature:10~30℃;
2.relative humidity:≤75%;
3.barometric pressure:860~1060hpa
4.power:AC220V±10%,50Hz±2%;
5.cooling water:Use deionized water or pure distilled water
2)parameters
| Laser type | Nd Yag Q-switch laser |
| Wavelength | Double wavelength 1034nm ,532nm |
| Controller | Key press display |
| Power | 2000W |
| Width of pulses | 6-12ns |
| frequency | 1-10 |
| Beam of light transmission |
7 articular-arm of light guide transmitting, transmission power is more than 75% |
| Indicator of aiming light | Red semiconductor aiming light, wavelength 650-670nm |
| cooling manner | Closed-off water circulation + air |
| Voltage | 200V/110V |
| Packing size | 100*54*100 cm |
| Packing size | 100*54*100cm |
