Application
*Position measuring
*distance measuring
*Depth measuring
Specification

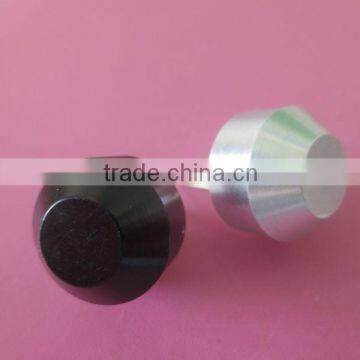

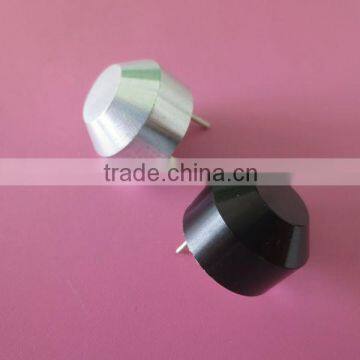

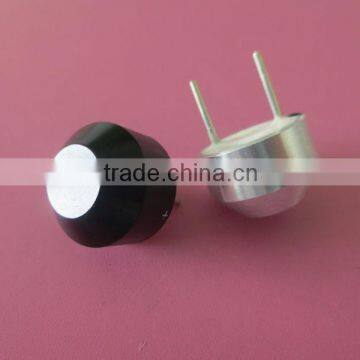

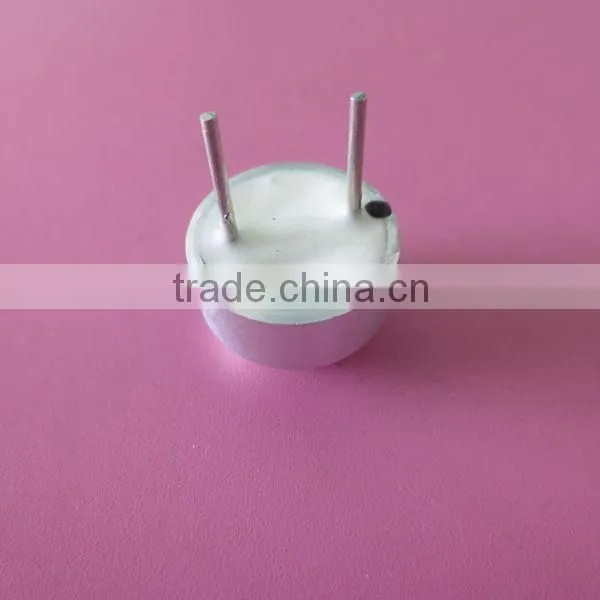

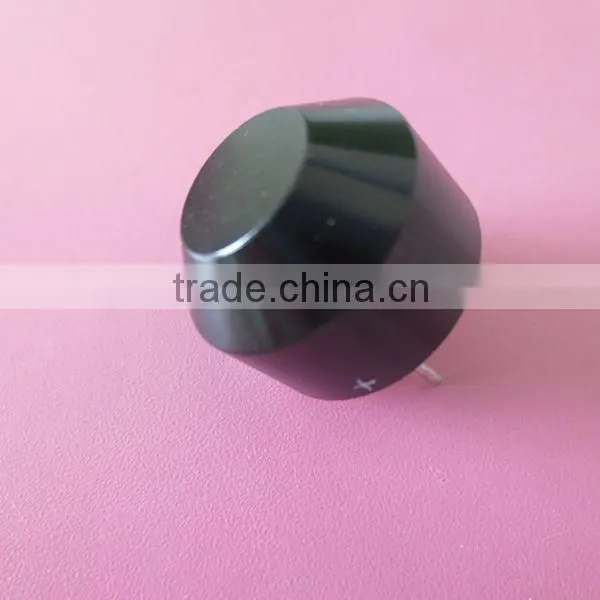

| Name | 18mm 40KHZ waterproof ultrasonic transducer |
| Size | 18*12mm |
| Frequency | 40KHZ |
| Using method | Dual use |
| Sensitivity | ≥-63db |
| Detectable Range | 0.2-4m |
| Max input voltage | 120VP-p |
| Capacitance | 2000± 20%PF at 1KHZ |
| Operating Temperature Rang | -30℃ to +85℃ |
| Quality control | ROHS & ISO 9001&SGS |

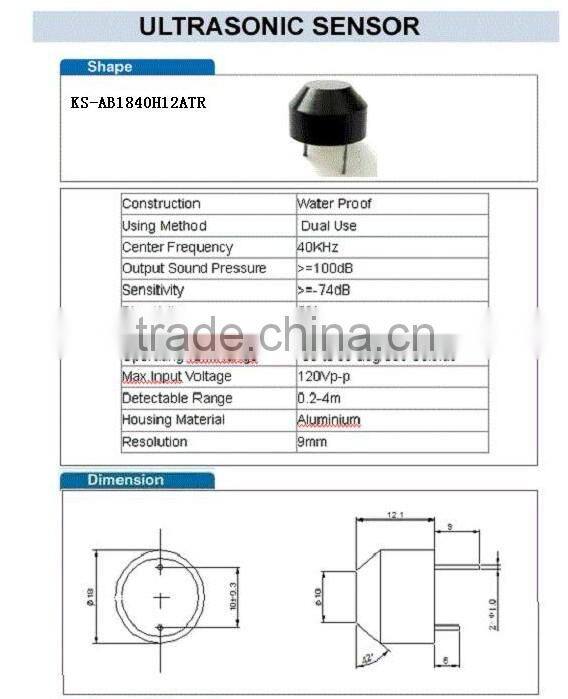

Test circuit drawing
Other related ultrasonic trasducer
| No | Model | Center Frequency | Name |
| 1 | KS-P131000H6.5TR | 1.0MHz | Ultrasonic transducer |
| 2 | KS-P201000H9.5TR | 1.0MHz | Ultrasonic transducer |
| 3 | KS-P1040H07T/R | 40KHz | Ultrasonic transducer |
| 4 | KS-P1640H12T/R | 40KHz | Ultrasonic transducer |
| 5 | KS-A1040H08T/R | 40KHz | Ultrasonic transducer |
| 6 | KS-A1240H9.5T/R | 40KHz | Ultrasonic transducer |
| 7 | KS-A1440H09TR-2 | 40KHz | Ultrasonic transducer |
| 8 | KS-A1640H10.5S | 40KHz | Ultrasonic transducer |
| 9 | KS-A1640H12TR | 40KHz | Ultrasonic transducer |
| 10 | KS-A1840H12TR | 40KHz | Ultrasonic transduce |
| 11 | KS-A2425H13T/R | 25KHz | Ultrasonic sensor |
Packaging &shipping
Packing
Small inner box and outside Carton box(400pcs/inner box,4 inner box/carton box)
custom packaging is also available
Shipping
DHL/UPS/FEDEX for samples or small orders
FOB China&CIF for bulk orders
Company informaiton
We specialize in producing Electro-acoustic components more than 10 years,we have strict quality contral systems,Our factory passed through ISO9000 and all of our products are up to ROHS standard.
Our main products are Buzzer(Piezoelectric buzzer / Electromagnetic buzzer / Mechanical buzzer / SMD buzzer ),Piezoelectric ceramic element , Condenser microphone , Ultrasonic transducer sensor , Atomiztion piece etc.
Contact us
If you are interested about us,please feel free contact below,welcome to visit our factory
Skype: cosson_81
Tel:86-769-81885857
Molbile:+86-13433049023
