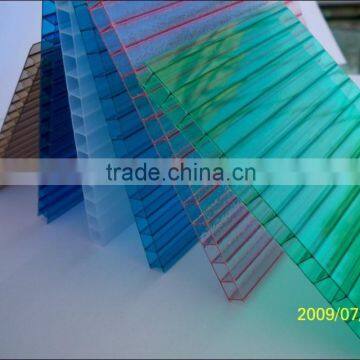

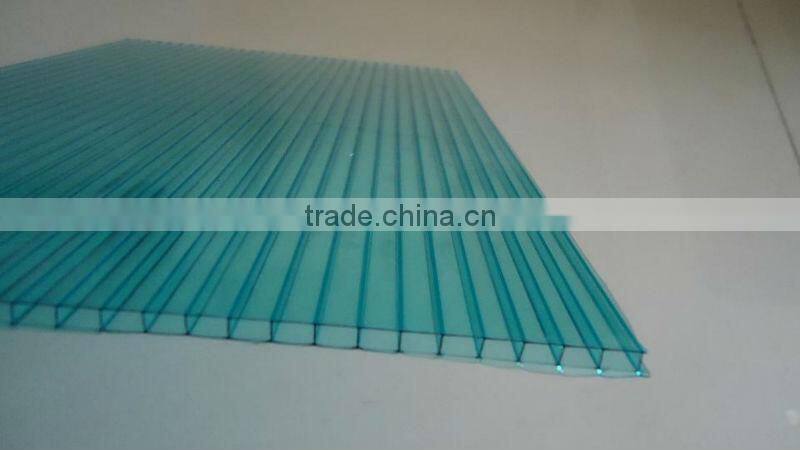

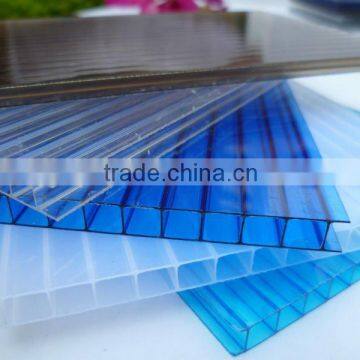

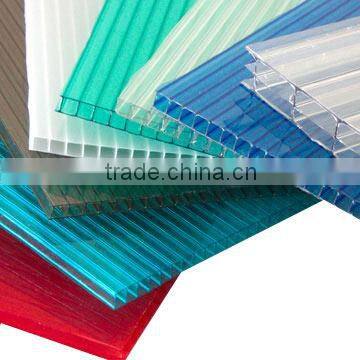

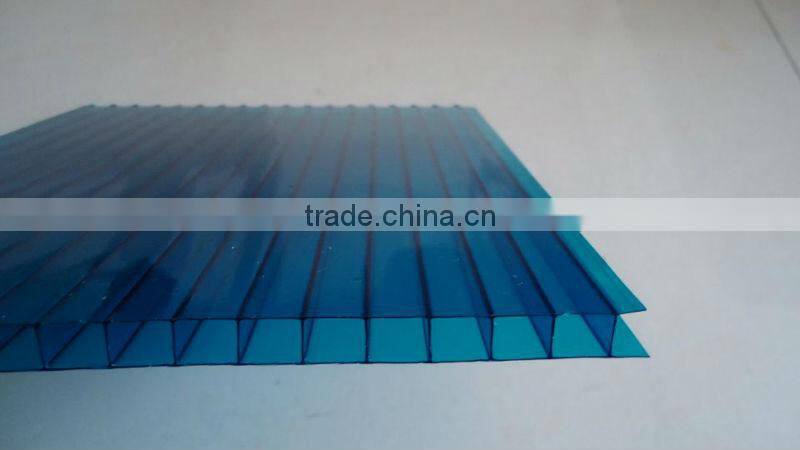

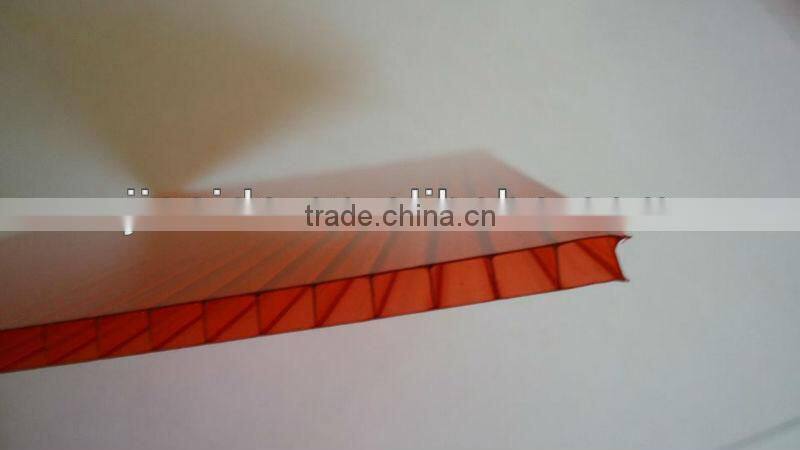

Twin-wall Transparent Polycarbonate hollow plate
Specifications
Certification:SGS,ISO9001,ROHS
10 years guarantee
Materail:GE/BAYER/LEXAN
Max width:2.1M
Length:no limit
JIASIDA polycarbonate sheet is a basic type with light weight, heat resistant, and excellent light transmission. It meets requirement of common glazing, like factory window in the wall and carport and so on, where do not have high UV-value requirement. JIASIDA polycarbonate sheet has another feature, UV resistance of two sides which greatly help to extend service life. It also reduce mistake of cutting and installation. JIASIDA supply 10 years warranty for those polycarbonate sheets.
Detailed Product Description
Material |
Continuous-use-temperature rating |
Softening temperature |
Polycarbonate |
100°C |
145°C |
Acrylic |
50°C |
100°C |
PVC |
50°C |
70°C |
Polycarbonate 2 wall sheet
is a type of engineering plastic of excellent intergration capability,ideal material for roofing panel.
Polycarbonate two-wall hollow sheet
Thickness :3mm/ 4mm / 6mm / 8mm /10mm
Maximum width : 2100mm
Polycarbonate three/triple wall hollow sheet
Thickness : 10mm / 12mm / 14mm/16mm/18mm
Maximum width : 2100mm
Polycarbonate 4-wall hollow sheet
Thickness : 6mm / 8mm / 10mm
Maximum width : 2100mm
Polycarbonate X-wall hollow sheet
Thickness : 6mm / 8mm / 10mm
Maximum width : 2100mm
Polycarbonate honeycomb sheet(PC Alveolate sheet)
Thickness : 6mm / 8mm / 10mm
Maximum width : 2100mm
Standard Length : 5800mm / 11800mm
Color : Clear , Opal , Green , Blue , Bronze , Lake-blue, etc
Note : Special specification and color can be processed against customer’s demand
Features:
1. Light transmission :up to 90%
2. Impact resistant:80 times that of glass, 15 times that of acrylic sheeting
3. Temperature service : -40°C ~~120°C
4. Light weight: only 1/12 of the weight of glass at same thickness
5. UV Protection on one side or both sides(50 micron)
6. Fire resistance: Rated Class B1
7. Sound & Heat Insulation
Applications:
1)Roofing for swimming pool,shopping malls,commercial streets
2)Sunshade for stadiums and bus stops,gazebo,open-air carport
3)Lighting canopy for corridors,passages and subway entries
4)Flashing for bank ATMs,telephone box,gateways,garages
5)Sound and heat insulation wall for expressways and houses
6)Heat preservation material for agricultural greenhouse,flower greenhouse
7)Soundproof material for partitions
8)Unbreakable material for glazing windows,roof glazing
