Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
COSSON
Model Number:
SMD-050025F-0304
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5v SMD Buzzer Magnetic Smd Buzzer 9*4.5mm(RoHS Approved)NegotiableMOQ: 1000 Pieces -
7525 SMD BUZZER Magnetic Buzzer Smallest BuzzerNegotiableMOQ: 1000 Pieces
-
Small SMD Buzzer 3v SMD Magnetic Buzzer IsraelNegotiableMOQ: 1000 Pieces
-
External Drive Type SMD Magnetic Buzzer(RHOS)NegotiableMOQ: 1 Piece
-
Smallest 280 Degree SMD Magnetic Buzzer(ROHS)NegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
COSSON
Model Number
SMD-050025F-0304
Type
Buzzer
SMD Buzzer
1. Type:SMD Magnetic buzzer;
2. Resonant Frequency:2700±300Hz;
3. SPL:min.75dB;
4.Size:5.0*5.0*2.5mm;
5.Rated voltage:3V;
6.Operating voltage:2~5Vp-p;
7.Rated current:MAX.100mA;
8.Coil resistance:12±3Ω;
9. Operating Temperature:-25°c~+70°c;
10. Storage Temperature:-30°c~+80°c;
11.Weight:0.3g;
12.Environmental Protecti Regulation:RoHS;

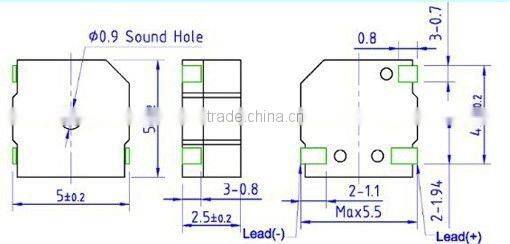

13.OUTLINE DRAWING:

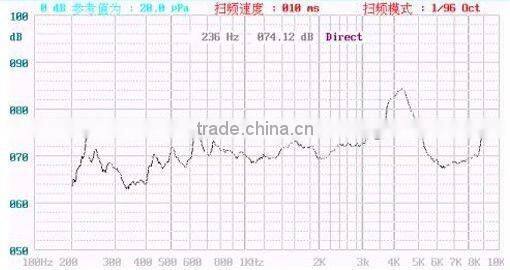

14.FREQUENCY characteristics:
