JIASIDA polycarbonate sun board,polycarbonate sun sheet,polycarbonate hollow sheet

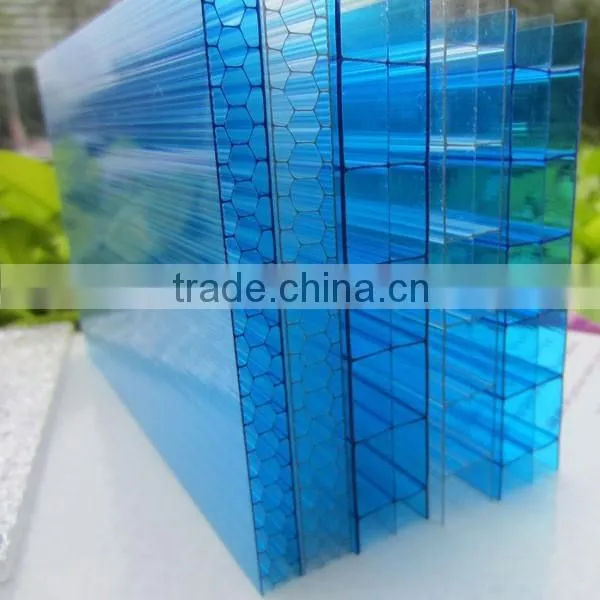

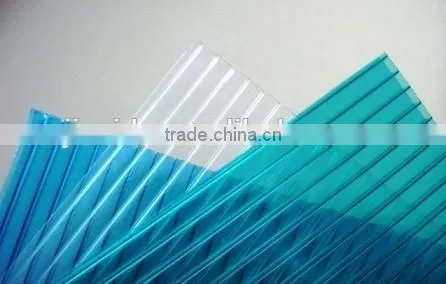

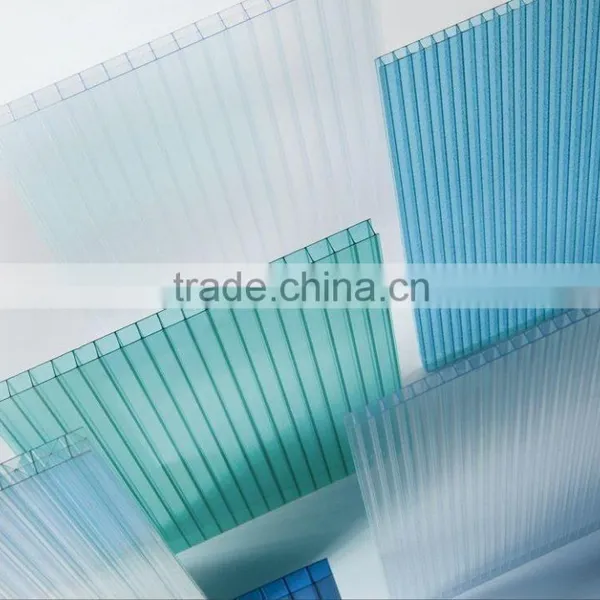

Product range:( polycarbonate sun board )

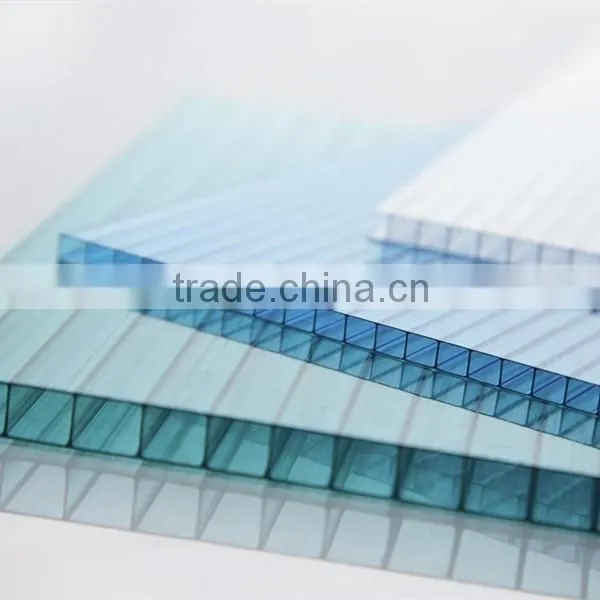

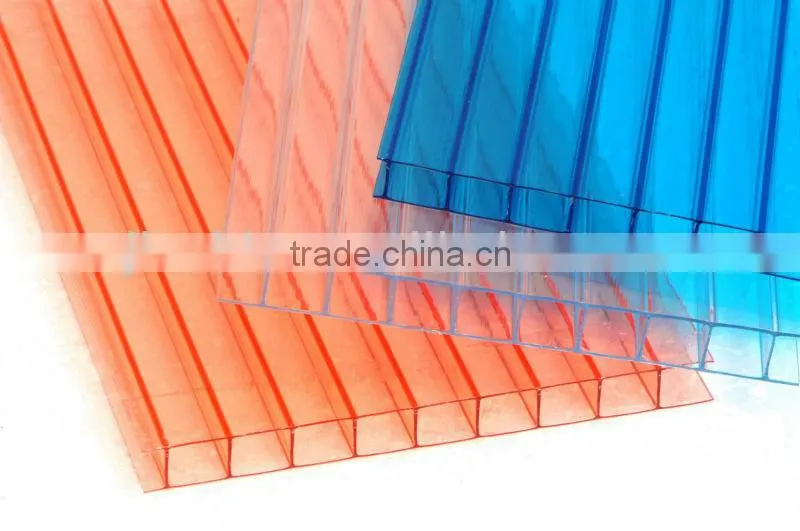

Polycarbonate twin wall(2-wall) hollow sheet
Thickness:4mm/6mm/8mm/10mm
Max width:2100mm
Polycarbonate triple wall(3-wall) hollow sheet
Thickness:10mm/12mm/14mm/16mm/18mm
Max width:2100mm
Polycarbonate 4-wall hollow sheet
Thickness:6mm/8mm/10mm/11.5mm
Max width:2100mm
Polycarbonate X-structure hollow sheet
Thickness:6mm/8mm/10mm
Max width:2100mm
Polycarbonate honeycomb sheet/alveolate hollow sheet
Thickness:6mm/8mm/10mm
Max width:2100mm
Standard size:2100mm*5800mm/2100mm*11800mm
Length no limit, size can be customized.
Colors:clear,opal,lake-blue,green,bronze,red,yellow etc.
10 years warranty
UV coating on both sides
Specification:
Thickness (mm) |
Structure |
Light Transmittance(%) |
Min.Bend Radius(mm) |
Max Width(mm) |
Color |
4 |
Twin-wall |
80 |
700 |
2100 |
Clear Opal Green Blue Orange Red Brown |
6 |
80 |
1050 |
|||
8 |
80 |
1400 |
|||
10 |
79 |
1750 |
|||
11.5 |
78 |
2012.5 |
|||
Material |
Continuous-use-temperature rating |
Softening temperature |
|||
Polycarbonate |
100°C |
145°C |
|||
Acrylic |
50°C |
100°C |
|||
PVC |
50°C |
70°C |
|||
Features of Product
- 10 year guarantee
- virtually unbreakable
- Less than half the weight of glass
- Good chemical resistance
- Excellent thermal insulation
- Class 1 Fire rating (self-extinguishing)
Applications:( polycarbonate sun board )
1) Roofing light sheet and sunshade for office building, department store,
hotel, stadium,school,amusement center,hospital, ect.

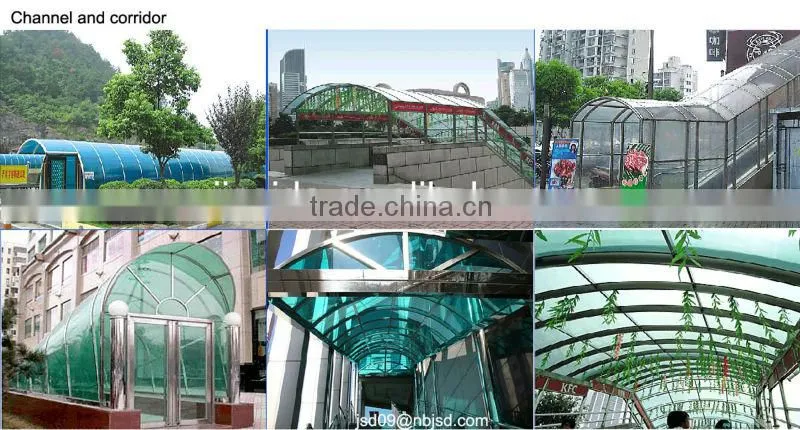

2) Skylight, lighting for corridors, balcony, passages and subway entries, walkways.

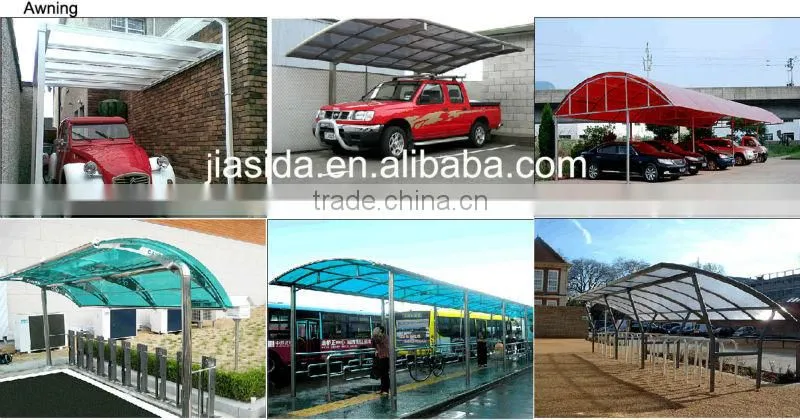

3) Do-It-Yourself (DIY), awning, canopy.
4) Advertising lamp boxes, sign board.
6) Anti-riot shield, bullet resistant material, Bank ATMs.

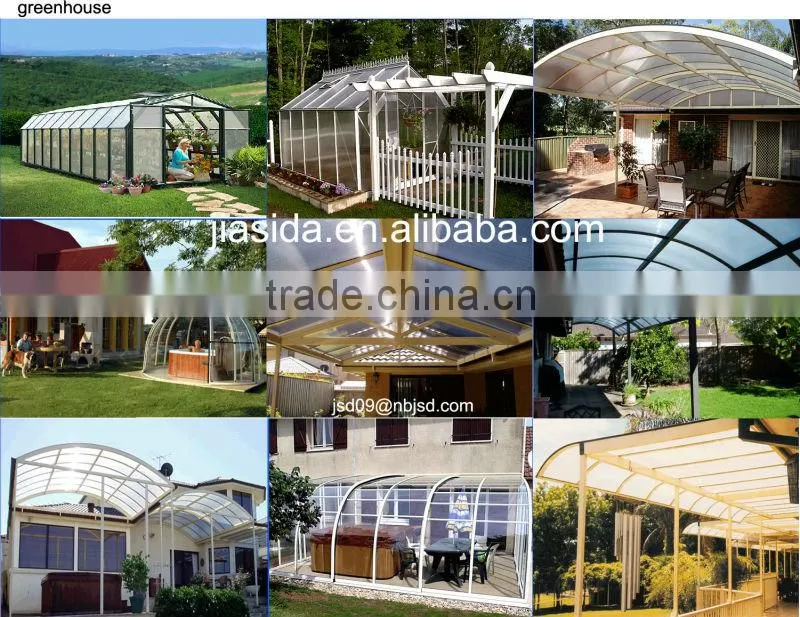

7) Conservatories, agricultural greenhouses, zoos, botanical gardens.

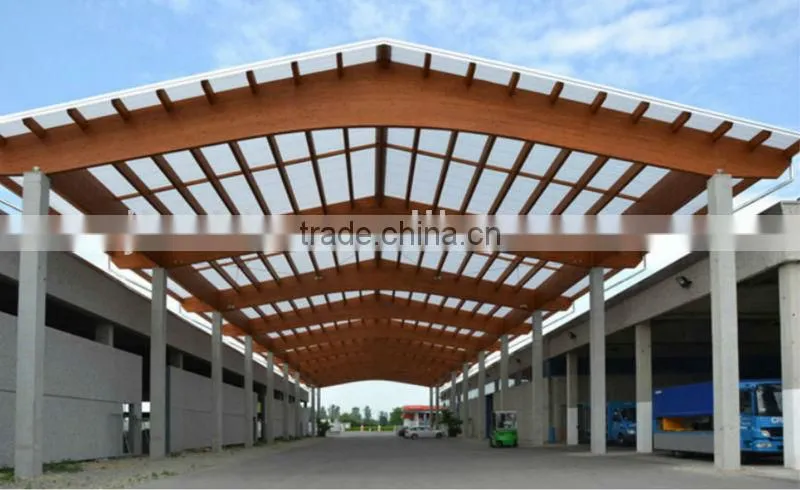

8) Industrial Roofing and Glazing

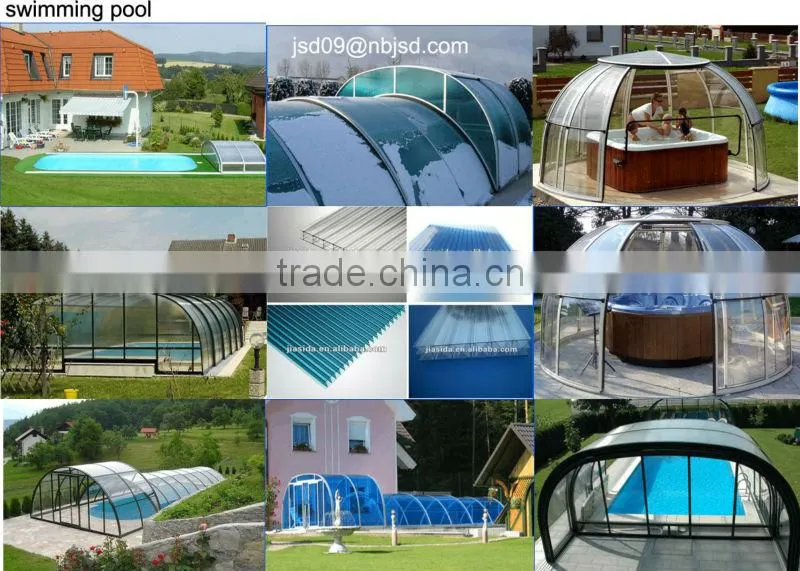

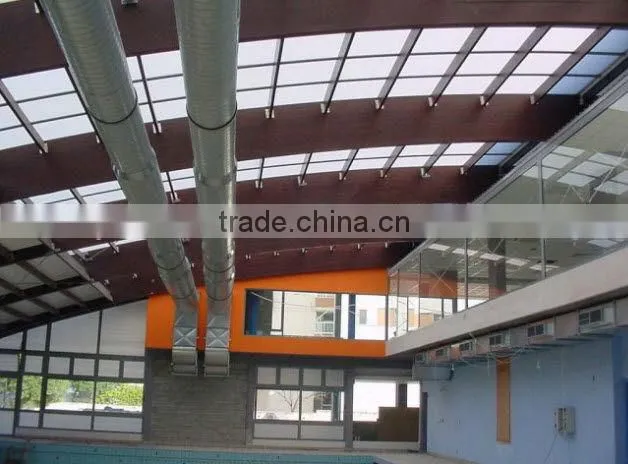

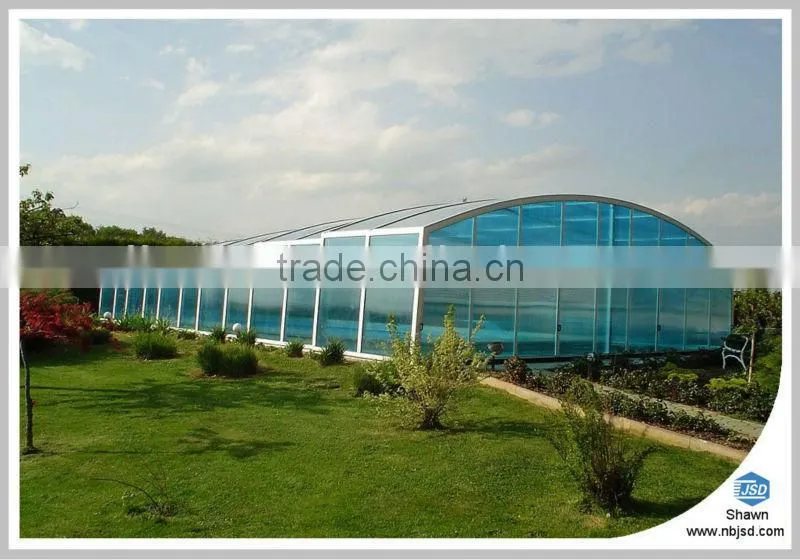

9) Swimming Pools roofing/cover/sheet

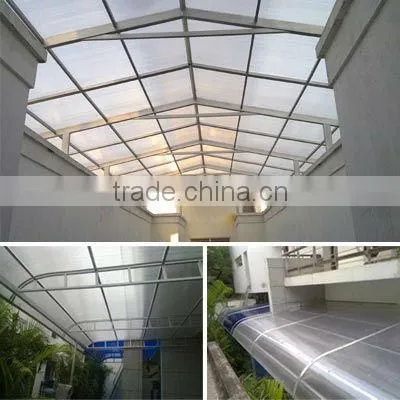

Roofing:

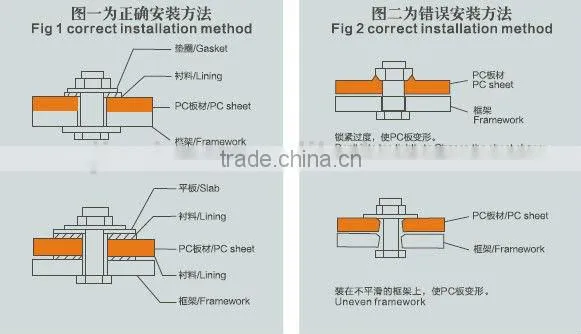

Simply processed and installed:

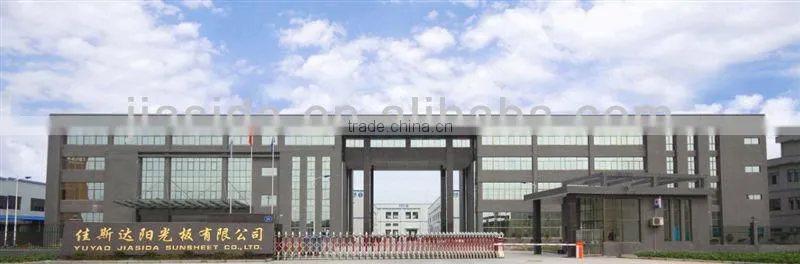

JISIDA Factory:
Yuyao Jiasida Sunsheet Co., Ltd. was established in 2002, and is an enterprise,
manufacturing and marketing polycarbonate sheets.
Our polycarbonate sheets are known as unbreakable glass, made of project plastic material of
excellent comprehensive functions,which have some features of excellent concussion-resistance,
heat-insulation, sound-insulation, light-collection, ultra-violet rays resistance,and fire-resistance.
Polycarbonate sheets are widely applied in public and residential buildings with
graceful appearance and durability, and some sorts of ideal sun-shade materials in today's world.
Our company has introduced some production equipment from Germany. Meanwhile, we have also employed some talented people in this field with managing and technical abilities. Our company has some brands such as Jiasida, Kailuofu, Shuangjia and Chaopu. The specifications of our products are to meet the requirements of all customers.
Our products are applied for sun-light collection sun shades, road sound insulation barriers, gymnasium sun shades, guideposts, lamp box advertisements, telephone kiosks, airway waiting halls, limousine waiting kiosks, sheds of landscape garden recreation places, agriculture plantation vocation, cultivation vocation sun shades, and residential balconies. Our products are well-sold and enjoy good reputations in the world market.

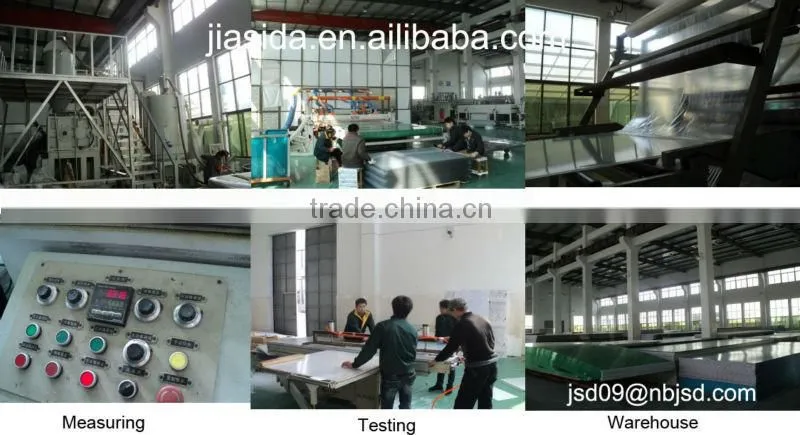

production line
JIASIDA certification
we supply polycarbonate hollow sheet, solid sheet and finished product.
more we supply is the best suitable solution for you.
FAQ -
Q – What is the fire rating of Polycarbonate –
Class B1 fire rating which is an excellent fire rating.
Q – Is Polycarbonate unbreakable –
The material is virtually unbreakable, and will resist most impact resistant situations, however they will not guarantee 100% the material is unbreakable, for example if the material was to be in an explosive situation or to be used in a ballistic situation.
Q – Can I cut Polycarbonate at home and I do need any special tools -
You can use our cut to size service to save the hassle of cutting, however if you do need to cut the panels at home you can use a jigsaw, Band Saw and fret saws.
Q – How can I clean my polycarbonate sheet -
Do not use abrasive materials as will affect the material, the best advice is to use warm soapy water with a soft cloth.
Q – What is the difference between Polycarbonate and Acrylic -
The main difference between the two is Polycarbonate is virtually unbreakable, acrylic is much stronger than glass, but it will break/shatter if force is applied. Polycarbonate is a class 1 fire rating where Acrylic is a class 3 / 4 fire rating.
Q – What is the difference between Polycarbonate and Lexan -
There is no difference, Lexan is a brand name for Polycarbonate sheet, other common brand names relating to Polycarbonate sheet include Makrolon, Marlon, Palsun and quinn.
