Electret Condenser Microphone Components
Negotiable
MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
COSSON
Model Number:
electret condenser microphone
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electret Condenser Microphone PartsNegotiableMOQ: 10000 Pieces -
Electret Microphone Speaker MicrophoneNegotiableMOQ: 1000 Pieces
-
Adjustable Desktop Microphone StandNegotiableMOQ: 1000 Pieces
-
Computer Wireless Headphone MicrophoneNegotiableMOQ: 1000 Pieces
-
Foil Electret Condenser MicrophoneNegotiableMOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
COSSON
Model Number
electret condenser microphone
Type
Other, condenser microphone
Specifications
electret condenser microphone componentsSpecialize in producing different conderser microphone component.
PART_1: More detail about microphone components :
Specification of the electret condenser microphone
- Diameter:9.7mm;
- Height:6.7mm;
- Type:omnidirectional electret capacitor microphone;
- Operating voltage:1.5~10V;
- Rated voltage:3v;
- Rated current:max.0.5mA;
- Impedance:max.2.2KΩ;
- Frequency:20~20000Hz;
- Operating temperature:-10°c~+60°c;
- Storage temperature:-20°c~+70°c;

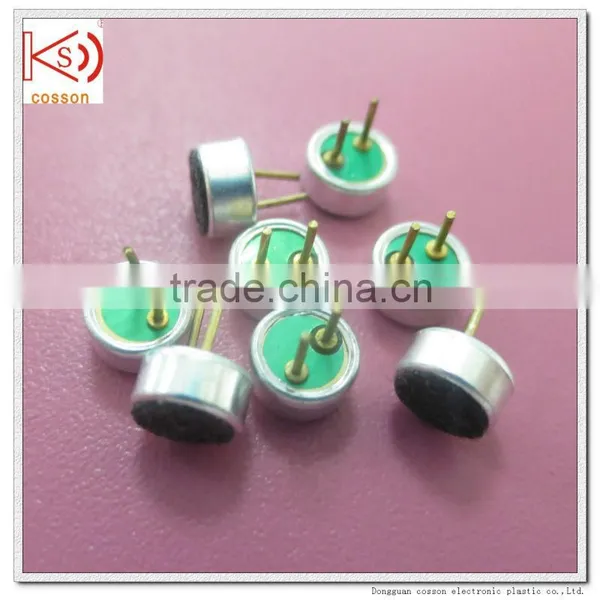

Drawing of electret condenser microphone:
Frequency characteristics of electret condenser microphone :
Measurement circuit of electret capacitor microphone:
PART_2: Other type of electret condenser microphone:
| No | Model | Size | Name |
| 1 | KS-4015 | Diameter:4.0mm;Height:1.5mm | condenser microphone |
| 2 | KS-4022 | Diameter:4.0mm;Height:2.2mm | condenser microphone |
| 3 | KS-6022 | Diameter:6.0mm;Height:2.2mm | condenser microphone |
| 4 | KS-6027 | Diameter:6.0mm;Height:2.7mm | condenser microphone |
| 5 | KS-6050 | Diameter:6.0mm;Height:5.0mm | condenser microphone |
| 6 | KS-9745 | Diameter:9.7mm;Height:4.5mm | condenser microphone |
| 7 | KS-9767 | Diameter:9.7mm;Height:6.7mm | condenser microphone |

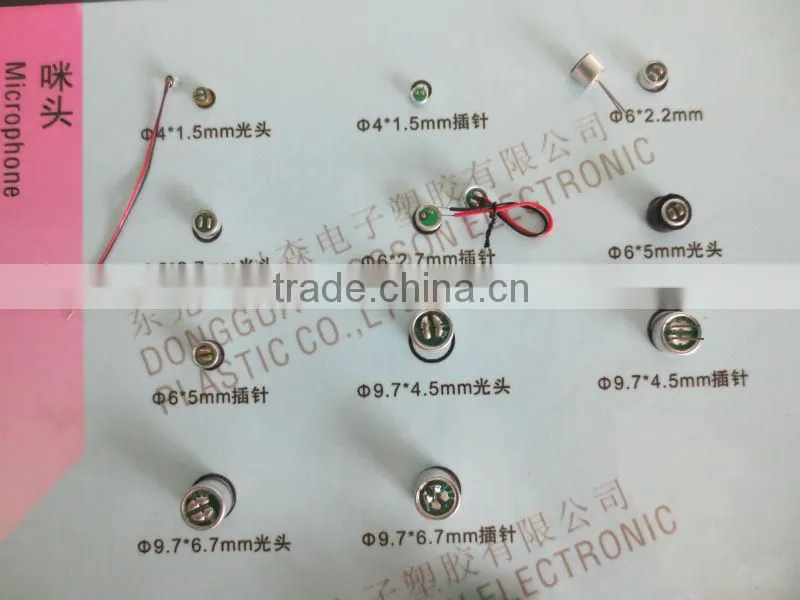

Picture of other type electret condenser microphone:
Catalogue of electret condenser microphone :
PART_3: About us:

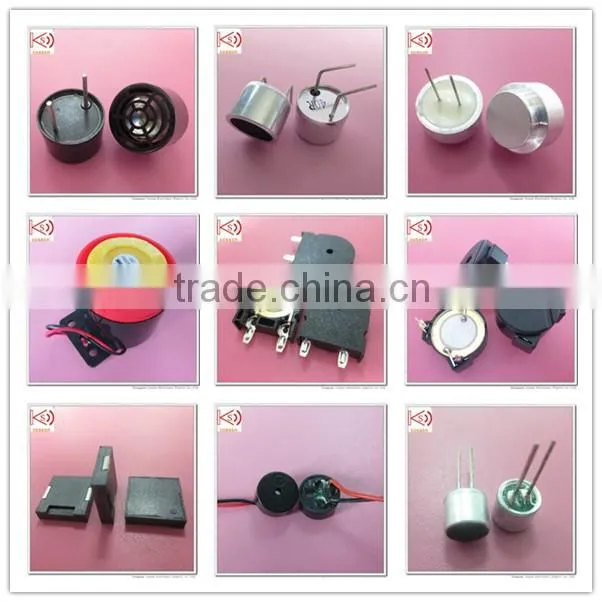

We specialize in producing Electro-acoustic components such as Buzzer (Piezoelectric buzzer /Electromagnetic buzzer / Mechanical buzzer / SMD buzzer ), Piezoelectric ceramic element ,Condenser microphone , Ultrasonic sensor , Atomiztion piece etc.
