Omnidirectional Electret Condenser Microphone

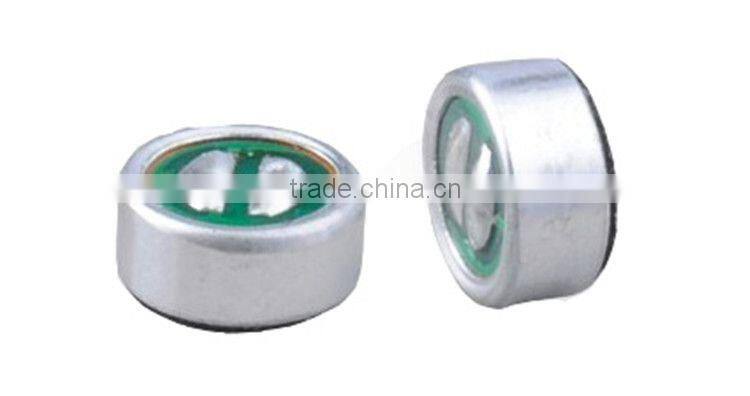

Omnidirectional Electret Condenser Microphone photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KS
Model Number:
KS-6022
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name KS
Model Number KS-6022
Type Microphone

Specifications

1. High Sensitivity electret condenser microphone
2. ISO & RoHS
3. Fast Delivery
4. Superior Qulity With Competitive Price



high sensitivity electret condenser microphone :

omnidirectional electret condenser microphone



omnidirectional electret condenser microphone

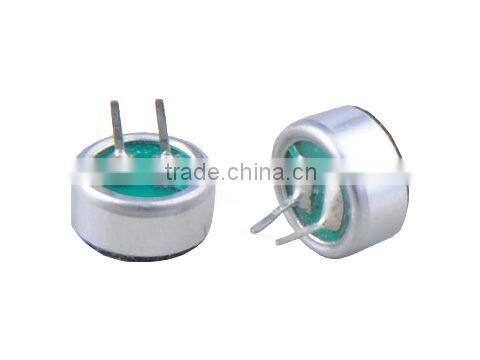

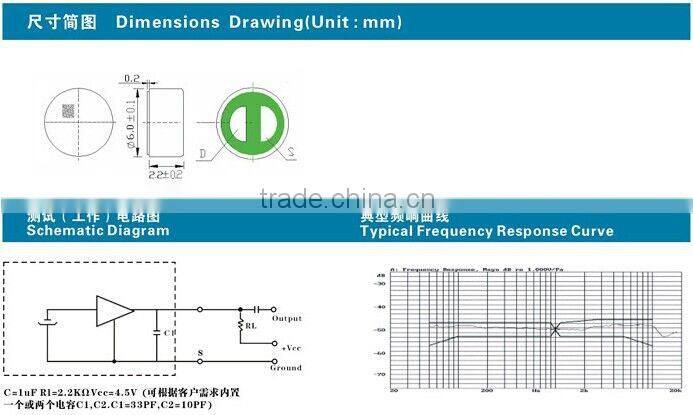

KS-6022 no pin/KS-6022 with pin Condenser Microphone:

1.Diameter:6mm,Height:2.2mm;
2.Frequency Range:50-20KHz;
3.Sensitivity: -48 to -66dB;
4.Current Consumption: max.500uA;
5.Standard Voltage Range:3v;
6.Operating Voltage Range:1.5-10v;       7.Siganl to noise Ratio:≤58db;

 omnidirectional electret condenser microphone
 omnidirectional electret condenser microphone





If you need other size ultrasonic sensor  , please don't hesitate feel free to contact us:



NoModelSizeName
1KS-4015Diameter:4.0mm;Height:1.5mmcondenser microphone
2KS-4022Diameter:4.0mm;Height:2.2mmcondenser microphone
3KS-6022Diameter:6.0mm;Height:2.2mmcondenser microphone
4KS-6027Diameter:6.0mm;Height:2.7mmcondenser microphone
5KS-6050Diameter:6.0mm;Height:5.0mmcondenser microphone
6KS-9745Diameter:9.7mm;Height:4.5mmcondenser microphone
7KS-9767Diameter:9.7mm;Height:6.7mmcondenser microphone



 omnidirectional electret condenser microphone

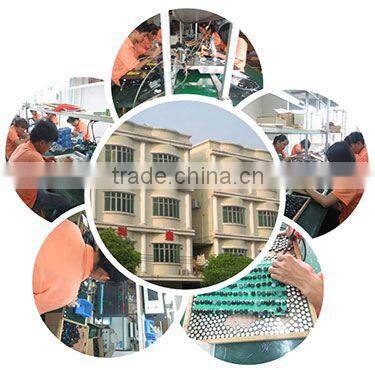

Dongguan cosson electronic plasic CO.,LTD(COSSON ELECTRONIC TECHNOLOGY (HK) CO., Ltd). specialize in producing electro-acoustic components such as buzzer(Piezo electric, electromagnetic, mechanical), piezoelectric ceramic element, SMD magnetic transducers, condenser microphones, ultrasonic sensor,Atomization piece, speakers and other audio components. And our company not only have more than 200 different specifications of the electro-acoustic devices products at present, but also continue to develop new products and design according to customer’s special demands under the hot challenge of current market.
Our products are widely used in household appliances equipment, watches, toys, alarm systems, reversing radar, ultrasonic cleaning, ultrasonic atomization, marine fish exploration, the range of ultrasound equipment etc.





High quality, competitive price, timely delivery and positive service are our basic principle for producing our business, most of our products have been exported to abroad and gained high reputation from them.
Quality is the corporation’s life. Professional production and strict executive of ISO9000 quality system ensure the quality of products. Furthermore, most of our products have ROHS reports.
We strictly carry out the aim of “Quality First, Customers First, Credit Standing First”. We will try our best to satisfy the customer’s requirements. We sincerely welcome both home and abroad clients to contact us for business inquiry at any time!

 omnidirectional electret condenser microphone

 omnidirectional electret condenser microphone





1Q:More details about ring sizes?
A:We can produce different sizes including US, Europe, UK, Asia Size etc. by international standard.
We design for you.

2Q: Any discount possible if I place an order?
A:Yes.we have different price ranges (discounts) based on different order quantities.Please contact
our sales girl for detailed price information.



3Q:Is the MOQ fixed?
A:For mass production orders,the MOQ cannot be lowered according to production requirements.For
stock items,order quantity can be negotible.

4Q:How long is the delivery time?
A:Different products and quantities have different procedures and different timing.We may promise
that we can try our best to finish all of your orders within the shortest time.For more information,
please contact us directly.

5Q:Are customized products accepted?
A:Your idea, your choice, we design, we make, Cosson electronics to be your factory.

6Q:More information about payment terms?
A:We can accept T/T and Western Union for money transfer and cash.
