Small Electret Condenser Microphone

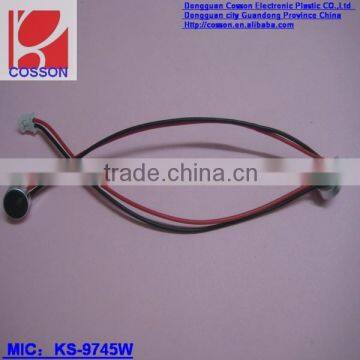

Small Electret Condenser Microphone photo-1
Negotiable MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
COSSON
Model Number:
KS-4015P1
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name COSSON
Model Number KS-4015P1
Type Microphone

small Electret Condenser Microphone(Size:4.0X1.5mm)
1) Directivity:omni-directional;
2) Frequency:20Hz~20KHz;
3) S/N :min.60dB;

4) Sensitivity(0dB=1V/Pa):-28dB~46dB;

5) Sensitivity reduction:within -3dB at 1.5V;

6) Max. operation voltage:10V;

7) Standard operation voltage:3V;

8) Impedance:max.2.2KΩ;



SPECIFICATION



Test condition: RL=2.2KΩ  VS=3V         TEMP=25°C±2°C     Related humidity=65±5%

No.

Item

Symbol

Unit

Specification

Condition

1

Directivity









Omnidirectional





2

Sensitivity

S

dB

-28-46DB

f=1KHz,P= 1Pa

0dB=1V/μbar



3

Standard operating voltage

Vs

1.5-3



4

Output impedance

Zout

≤2.2

f=1KHz, 1Pa

5

Max operating voltage





V .

10





6

Sensitivity reduction

-Vs

dB

-3

f=1KHz, 1Pa

vs=3VDC to 1.0VDC1.5V

T

Frequency

f

Hz

20 ~ 20,000





8

Max. current consumption

IDSS

mA

≤0.5



9

Signal to noise ration

S/N

dBA

≥60

f=1KHz, P in=1Pa

10

Operation temp.





°C

-10 ~+70





11

Storage temp.





°C

-20 ~+60





12

Material





AL



13

Terminal









Terminal

See appearance drawing

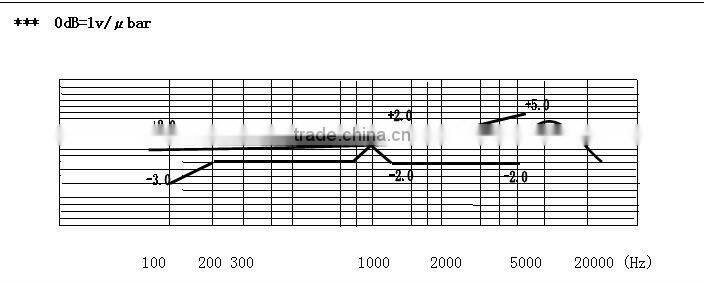

 small Electret Condenser Microphone

 small Electret Condenser Microphone

DONGGUAN COSSON ELECTRONIC PLASIC CO.,LTD is a manufacturer of electro-acoustic components with well-equipped testing facilities and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in household appliances equipment, watches, toys, alarm systems, reversing radar, ultrasonic cleaning, ultrasonic atomization, marine fish exploration,  the range of ultrasound equipment etc.  and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
