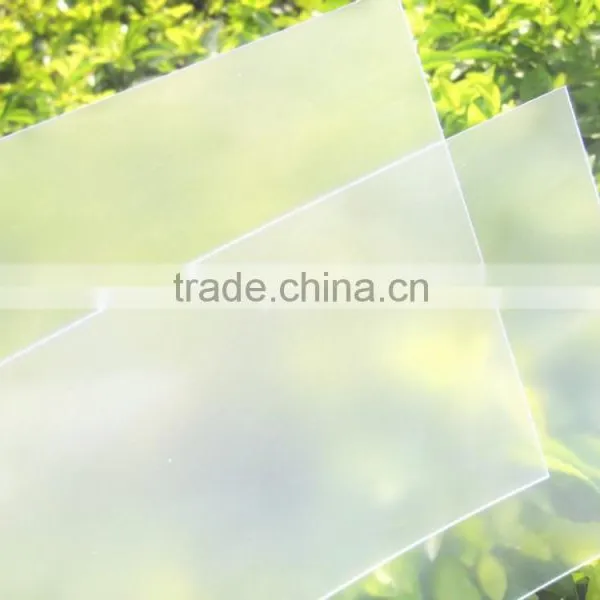

Yuyao JIASIDA polycarbonation diffuser sheet
Specifications
1.10 years warranty
2.50 micro UV protection both side
3.thickness by customers
4.Great impact strength
5.Beautiful color
Description Of PC Diffuse Plane Polycarbonate Solid Sheet:
Polycarbonate Diffusion Sheet:
1)100%imported BAYER GE material
2)thickness:1.5mm-6mm
3)Highest levels of transmission efficiencies
4)max width:2100mm
5)Certification:ISO,ROHS,SGS
Polycarbonate light diffusion sheet
Name: polycarbonate light diffusion cover
Colors: clear, opal,etc
Standard thickness : 1.5mm - 4.0mm
Standard size : 1220mm X 1220mm ; 1200mm X 1200mm
finished size available : 300mm X 300mm ; 300mm X 600mm ; 300mm X 1200mm ;
600mm X 600mm ; 600mm X 1200mm
JIASIDA polycarbonate diffusion sheet offers the widest selection of high efficiency light diffuser
components with a patented product family that reaches new metrics for efficiency and light control.
Our industry leading performance is derived from several innovations in materials
and process technology to produce precision volumetric and surface micro-optics in a wide range of
form factors and materials. Our components set new benchmarks for performance in key metrics
such as transmission efficiency for a given level of diffusion or hiding power, beating holographic,
surface relief and bulk diffuser techniques
| Thickness (mm) |
Standard Width (mm) | Standard Length (mm) | Specific Gravity | Standard Colors | Transmittance (%) | Dispersion Degree (%) |
| 1.5-12 | 1200-2100 | No limited | 1.2 | Diffusion opal | 30-85 | 30-60 |
Technical features: ( polycarbonate light diffusion panel )
1) Impact strength: 850J/m ,the impact strength of solid PC sheets is 250 times
that of glass, 20-30 times of PMMA sheet
2) Light transmission: 80%-90% for different thickness of clear color
3) UV resistance:50μm thickness UV layer, the sheet can filter 99% ultraviolet radiation in sunlight
4) Specific gravity: 1.2 g/cm
5) Coefficient of thermal expansion: 0.065 mm/moC
6) Service temperature: -40oC to 120oC
7) Heat conductivity: 2.3-3.9 W/m2 oC
8) Tensile strength: >60N/mm2
9) Flexural strength: 100N/mm2
10) Modulus of elasticity: 2,400mPa
11) Tensile street at break: >65mPa
12) Elongation at break: >100%
13) Specific heat: 1.16J/kgk
14) Heat deflection temperature: 140oC
15) Soundproof index:4mm thickness--27dB,5mm--28dB,6mm--29dB

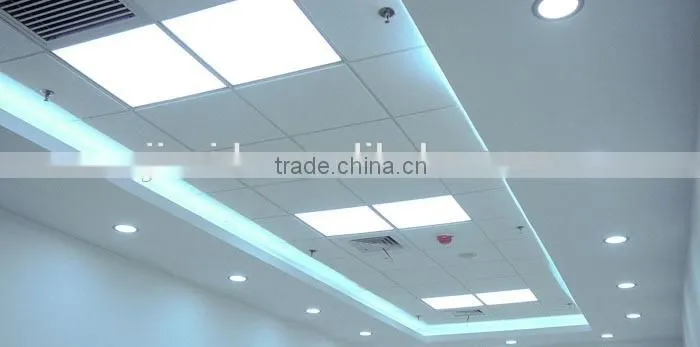

Application:( polycarbonate light diffusion panel )
♦ Retail Displays
♦ Airport Signage
♦ Point of Purchase Displays
♦ Bus Shelter Advertising
♦ Way Finding Signage
♦ Interior Lighting
♦ Display Shelves
♦ Trade Show Exhibits
JISIDA Factory:
Yuyao Jiasida Sunsheet Co., Ltd. was established in 2002, and is an enterprise,
manufacturing and marketing polycarbonate sheets.
Our polycarbonate sheets are known as unbreakable glass, made of project plastic material of
excellent comprehensive functions,which have some features of excellent concussion-resistance,
heat-insulation, sound-insulation, light-collection, ultra-violet rays resistance,and fire-resistance.
Polycarbonate sheets are widely applied in public and residential buildings with
graceful appearance and durability, and some sorts of ideal sun-shade materials in today's world.
Our company has introduced some production equipment from Germany. Meanwhile, we have also
employed some talented people in this field with managing and technical abilities. Our company has
some brands such as Jiasida, Kailuofu, Shuangjia and Chaopu. The specifications of our products
are to meet the requirements of all customers.
Our products are applied for sun-light collection sun shades, road sound insulation barriers,
gymnasium sun shades, guideposts, lamp box advertisements, telephone kiosks, airway waiting halls,
limousine waiting kiosks, sheds of landscape garden recreation places, agriculture plantation vocation,
]cultivation vocation sun shades, and residential balconies. Our products are well-sold and
enjoy good reputations in the world market.
produce line:
JIASIDA certification
we supply polycarbonate hollow sheet, solid sheet and finished product.
more we supply is the best suitable solution for you.
