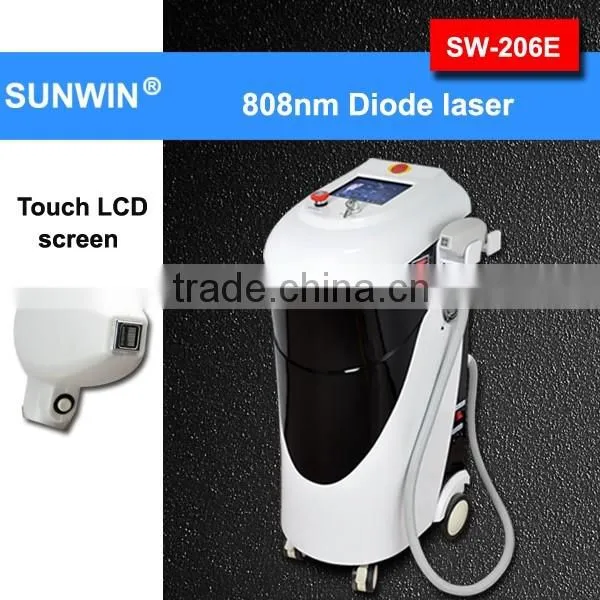

Sunwin permanent hair removal/hair reduction 808 laser (SW-206E)
808nm diode laser
SW-206E 808nm diode laser is the OEM solutions for fast hair removal with 808nm
high power laser diodes.
The system is designed with TEC and sapphire cooling unit for skin contact. The
laser beam is collimated with a patented beam shaping technology for a high efficiency
for hair removal solutions.This diode laser hair removal can be used for white to light
brown skin with dark color hair. The pulse energy is up to 120J/cm2 or even higher
up to 150J/cm2 upon request.
It is a permanent diode laser hair removal system.
Advantage:
1. Sapphire contact cooling device, the skin temperature cooled to -5 °C ~ 0 °C, avoid
skin thermal injury;
2. Micro-channel cooling semiconductor array technology to ensure high-frequency laser
emission at 20HZ even under very stable;
3. The best laser hair removal wavelength, 808nm laser and water it absorbs less hemoglobin,
melanin absorption peak is high, making treatment more secure;
4. Long adjustable pulse width to ensure uniform energy output, mild heating, in order to
avoid burns the skin and easy to get rid of unwanted hair;
5. Imported semiconductor laser, a light stable, long life;
6. To choose from a variety of light frequencies, saving the treatment time by 50 percent;
7.10X16mm big spot size, treat large area of skin once, achieve fast hair removal results.
Technical Specification:
Parameter |
Value |
Note |
Wavelength |
808nm+/-10nm |
940nm optional |
Pulse Width |
25ms~950ms |
|
Repetition Rate |
1Hz~20Hz |
|
Energy Fluence |
0~120J/cm2 |
Up to 150J/cm2 optional |
Beam Type |
Collimated |
Un-collimated optional |
Skin Cooling |
TEC + Sapphire |
<5℃ |
Laser Window |
10x16mm |
|
Laser Cooling Liquid |
Purified Water |
Tap water allowed |
Cooling Water Volume |
3.0~3.5L |
|
Handle Piece Flow Rate |
3.5~4.0L/min |
|
LCD Screen |
8’ Touch LCD |
6’~10.4’ optional |
Pedal Switch |
Support |
|
Environment Temperature |
5~30℃ |
|
Environment Moisture |
<80% |
|
Input VAC |
220VAC / 50-60Hz |
110VAC optional |
Dimension |
55*60*120cm |
Optional |
Weight |
80KG |
Optional |
Product detail:
Operation:

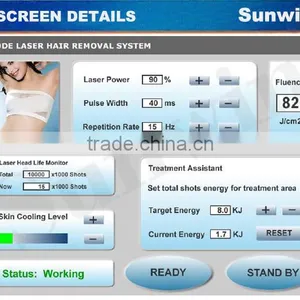

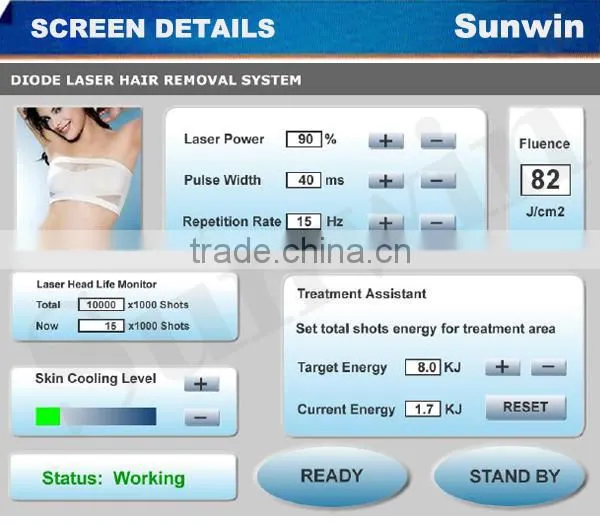

When you enter the main operation interface in the LCD screen,There are totally 6 parameters to be
set, including: Laser Power, Pulse Width, Repetition Rate, Skin Cooling Level, Target Energy and
Current Energy.
1)The Laser Power shows the peak power of the laser. High laser power means higher pulse energy
fluence. For light skin, such as white people and light color asian people, laser power can be adjusted
higher for a better performance. Laser Power can be variable from 5%~100%. The step width is 5%.
2) The Pulse Width shows the length of each laser pulse. A longer pulse width leads to higher pulse
energy fluence. Pulse Width can be variable from 25ms~950ms. The step width is 5ms at <100ms,
10ms at 100-300ms, 50ms at 300~950ms.
3)The Repetition Rate shows the pulses per second of the laser. A higher repetition rate leads to
higher pulse energy fluence. The Repetition Rate can be variable from 1Hz~20Hz with a step
width of 1Hz.
4)The Fluenceat the top-right of the LCD screen shows the laser energy density on the skin. This energy
changes according to the 3 parameters of Laser Power, Pulse Width and
Repetition Rate.
5)The Skin Cooling Level shows cooling efficiency of the Sapphire Window and Aluminum
Tip of the handle piece. The green block is longer, the cooling is better. It depends on the
feeling of the patents. The cooling will be switched off if the green block is all removed.
6)The Target Energy is a counter limit for each treatment. You can set this limit by press ‘+’
and ‘-‘. If the Current Energy> Target Energy, the laser will be stopped, till the Treatment
Assistantis ‘RESET’. This is a tool for the treatment to remember how many Joules have been
treated on the patient. If the laser stops and can not be start, please RESET the Current Energy
to ‘0’.
7)The middle-left of the LCD is the Laser Head Life Monitor, which shows how many shots
have been done for this handle piece. This is calculated as 40J per shot, no matter how many
pulses. Please remember this is a standard for warranty.
Effect Result:
SIMILAR ITEMS YOU MAY LIKE:
Certificate:
Our Team& Workroom:
Payment&Packge&Shipipng:
FAQ
1.MOQ
The MOQ is one set.
2.Payment
TT (Bank transfer), Western Union,Paypal,Cash...
3.Warranty
3 years, lifelong technical service
4.After-Sale service
We supply product use training include the manual,DVD and online trainning .When a fault occurs , engineers and experts to provide guidance for the maintenance.
