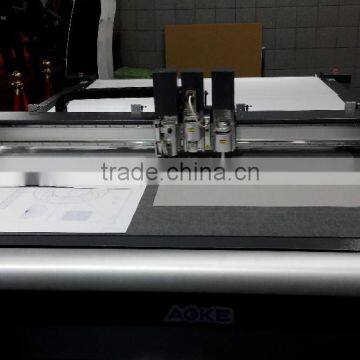

Corrugated Paper Sample Cutting Machine

Name: Corrugated Paper Sample Cutting Machine
Brand: AOKE
SKU: 130223117
Availability: InStock

Shanghai Xinao Technology Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Apparel, Beverage, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type:

Cartons

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Apparel, Beverage, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Commodity, Food, Machinery & Hardware, Medical, Textiles

Packaging Type Cartons

Packaging Material Wood

Automatic Grade Automatic

Driven Type Electric

Voltage 220v

Power 1500W

Place of Origin Shanghai, China

Brand Name AOKE

Model Number DCZ70

Weight 1000KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

corrugated paper sample cutting machine

boxing machine manufacturer

Brief Introduction:

Two interchangeable tools, whole sets head design, convenient to change cutting tools.

Four spindles high speed controller, modularizing installing, convenient for maintenance

Cutting depth could be adjusted as customers need

Easy to set parameter, different materials could be processed just after the cutting thickness and cutting speed are set well.

Specifications

Model	DCZ702516	DCZ701713	DCZ701310
effective cutting area	2500*1600	1700*1300	1300*1000
configuration	Oscillating blade,drag knife,pen,creasing tool
Max speed	1350mm/s
Max cutting thickness	15mm
smallest cutting diameter	6mm
Precision	≤0.1mm
Voltage	220V±10% 50HZ
Option	Video registration system,V cut tool,foam cutting tool

No.	name	application	Note
1	16 degree knife	Used to cut materials between 10mm to 15mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc.
2	20 degree knife	Used to cut materials between 7mm to 10mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc.
3	26 degree knife	Used to cut materials between 5mm to 7mm thick. Cutting materials: corrugated board, paper board, Kraft paper, gray board, offset board, honeycomb board, KT board and compound materials, etc.
4	39 Degree Drag knife	Used to cut materials within 3mm thick. Cutting materials:paperboard, Kraft paper, gray board,offset board, self-adhesive paper and compound materials, E corrugated etc.
5	Special knife	Used to cut materials within 2mm thick cutting materials:paperboard, Kraft paper, gray board,offset board and self-adhesive paper,etc.
6	Foam knife	Used to cut foam and other soft materials less than 60mm thick.
7	V cut knife	Used for making V groove on the Honeycomb board and grey board
8	Grey board V cut knife	Used to making V groove on the grey board to make the gift box.
9	Double edge knife	Mainly for the thick and hard materials such as grey board, PP etc.
*10	30 degree knife	Mainly for the hard material such as carbon gasket, gasket, ruber, grey board, PP etc.	Option

Creasing wheel

No.	name	application	Note
1	3mm creasing wheel	creasing thickness: between 3mm and 5mm corrugated board.
2	5mm creasing wheel	creasing thickness: between 5mm and 7mm corrugated board.
3	7mm creasing wheel	creasing thickness: between 7mm and 10mm corrugated board.
4	2mm creasing wheel	creasing thickness: within 2mm,such as corrugated board, paperboard, Kraft paper, gray board,offset board, composite materials etc.
*5	PVC creasing wheel	Used for PVC, plastic box, PVC corrugated etc.	Option
*6	Double line creasing wheel	Creasing thickness between 10 mm to 15mm 3A corrugated paper.	Option
