What is Specifications of our module ?



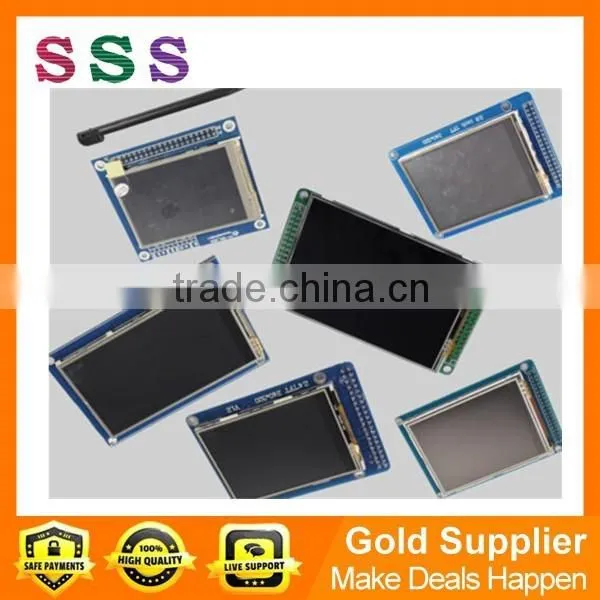

3.2" TFT LCD Module Display + Touch Panel + PCB adapter



High Quality Complete LCD w/ Touch screen Complete Module.
LCD screen + touch screen, with LCD & touch screen Controller.
8051 / AVR / PIC low power controller can also drive this LCD easily.
High portability! Increase development efficiency & lower development cost.



Specification:



Screen: 65K Colors
Driver IC: SSD1289
(Note: The old Version <Come with HX8347 Controller> will be out of manufacture)



Size:57.54 (W) x 79.2 (H) x 4.40(T) mm
View area:48.60(W) x 64.80(H) mm
Display content:240RGB x 320 Dots
Resolution:240 x 3 x 320 Dots
Pixel dot size:67.5 (L) x 202.5 (W) um
Pixel order:STRIPE TYPE
Structure type:COG+FPC+BL+TP
Backlight type:WHITE LED









1.8" Serial 128X160 TFT SPI LCD Module Display + PCB Adapter with SD Socket



JP1:3.3 V / 5 V power supply switch
Use 3.3 V power supply is needed to make JP1 short circuit
Use 5 v power supply must break, or LCD will be broken immediately







5" TFT LCD Module Display + PCB Adapter + Touch Panel Screen




Features :
1.This is a transmissive type color active matrix liquid crystal display (LCD) which uses
2.amorphous thin film transistor (TFT) as switching devices. This product is composed of a TFT LCD panel, driver ICs, FPC, and a backlight unit.
3.Function: 5 inch LCM
4.Color: 16 million color
5.Resolution: 800 x 480
6.Equipped with 4-wire resistive touch screen
7.Ultra wide Angle
8.Highlighted 12 LED lamp backlighting
9.40 PIN standard interface, plug and play, no welding.
10.With C8051 controller and SSD1963 program.
11.Approved: CE / FCC







2.4" TFT LCD Module Display + PCB adapter + Touch Panel Screen



1.LCD screen + touch screen, with LCD & touch screen Controller Module.



2.ILI9325 240RGBx 320 a -Si 262K color TFT controller, ADS7843 compatible touch panel controller



3.16-bit data interface, Support 16 bit RGB565 format , can connect any 16 bit data bus



4.3.3v voltage regulator and 3.3V I/O voltage level tolerance



5.Standard SD card cage



6.2x20 Pin 2.54mm double row pin header interface



7.can be driverd by 8051 / AVR / PIC/DSP / FPGA and other low power controllers.



8.Module Size (L x W x H): 76 x 54 x 14mm









2.8" TFT LCD Module Display + PCB adapter + Touch Panel



Screen size: 2.8TFT
Screen display area: 5.9*4.6CM
Resolution: 320x240
PCB size: 8*5. CM
LCD driver chips: ILI9328
Interface type: Compatible with the 12864 LCD interface
Voltage type: 5v or 3v voltage input voltage，input is selectable. Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V , when the input voltage of 3.3 V, you need to use the zero resistance make J2 short , is equivalent to not through the voltage regulator IC for module and power supply directly.
Note: the factory TFT module, are the 5 v power supply. By default.
Carrying on board SD holder, its work to SPI mode.







7" TFT LCD Module Display + PCB adapter + Touch Panel



SSD1963 touch panel controller
voltage:2.8-3.3V
pcb adapter for lcd
one sd card socket
2*20 Pin 2.54mm double row pin header interface for connecting MCU.
can be driverd by 8051 / AVR / PIC and other low power controllers.
Resolution:800x 480 Dots







4.3" TFT LCD Module Display + PCB adapter + Touch Panel



SSD1963 touch panel controller
voltage:2.8-3.3V
pcb adapter for lcd
one sd card socket
2*20 Pin 2.54mm double row pin header interface for connecting MCU.
can be driverd by 8051 / AVR / PIC and other low power controllers.
Resolution: 480*272 Dots



2.1" TFT LCD Module Display + Touch Panel TFT



Control chip: S6D0128
Resolution: 176x220
Physical size: 40.40 (W) x55.30(L) x3.2 mm (T)
Interface: 8/16.
Temperature range of use: - 20 ~ 70 ℃
DATA DOWLOAD







3.0" 3" TFT LCD Module Display for Mega + PCB adapter + Touch Panel



Control chip:R610509V
Resolution: 240X400
Physical size: 64.6 x93mm
Temperature range of use: - 20 ~ 70 ℃



High Quality Complete LCD w/ Touch screen Complete Module. LCD screen + touch screen, with LCD & touch screen Controller. 8051 / AVR / PIC low power controller can also drive this LCD easily. High portability! Increase development efficiency & lower development cost.



Wiring instructions :
The MCU working voltage is 3.3V
Wire connection:RS-P3^5; WR-PC0; RD-PC2; CS-PC3; REST-PC4;
data line: DB0-DB7connected to PB0-PB7;
DB8-DB15 connected to PA0-PA7



Illustration:
The TFT screen power supply is 2.8-3.3V,Backlight power supply is 3.3V
Because TFT can only work under 3.3 V voltage, so when the input voltage VIN is 5V, need through the 3.3 V voltage regulator IC step down to 3.3V ,
(AVR MCU'S IO is able to output power current,if you want to use AVR, you must remember to support the MCU with working voltage of 3.3V)




Note : The 3.0"TFF PCB you received may be printed 3.2",but it is still 3.0",because the PCB boards of 3.0" and 3.2"TFT LCD are designed the same by the manufacturer.







3.5" TFT LCD Module Display a + PCB adapter + Touch Panel



1. Screen size: 3.5 inches, the IPS panel.
2. The touch screen: tempered glass touch screen.
3. Resolution: 480 * 320
4. The controller: ILI9481.
5. Drive way: 16 bit parallel port.
6. The module size: 56mmx83mm.
6. The onboard a touchscreen and backlight control circuit.







2.6" TFT LCD Display Modul + Touch Panel + PCB adapter







The basic line to show:



sbit CS=P2^5; //chip select



sbit RES=P2^7; //reset



sbit RS=P2^4; //select data/command



sbit RW=P2^3;



Attention :RD pin have not used in the program,this is use to control write data and command, please use a I/O port to pull high leve



L utions of the touch screen:



PEN_Q --> P37;



DOUT --> P36;



BUSY --> P35;



DIN --> P34;



CS --> P33;



DCLK --> P32;



SD card :



CS --> P31;



MOSI --> P30;



SCK --> P21;



MISO --> P20;



Due to the slower 51 single-chip microcomputer,so the display speed is aslo a little slow,please slow down when write on the screen,please try to use crystal oscillator of 22.1184MHZ



I llustration :



( AVR MCU ' S IO is able to output strong current , if you want to use AVR, you must remember to support the MCU with working voltage of 3.3V , but there is a Voltage Converter Chips on the TFT,so here the TFT need supported with 5V )











2.2" 2.2in SPI TFT LCD Module Display + PCB adapter



Description
- Size: 2.2 inch
- Resolution:240 * 320



Instructions
Program default IO connections:
sbit LCD_CS = P0 ^ 0; Chip Select
sbit LCD_RS = P0 ^ 2; data / command switch
sbit LCD_SDA = P1 ^ 5; Data
sbit LCD_SCK = P1 ^ 7; Clock
sbit LCD_REST = P0 ^ 1; Reset



TFT Power: Screen Power is 2.8-3.3V; remember not to use 5V
(Modules with PCB's have inherited 3V regulator IC, you can enter 5V)
backlight power supply (LED pin): 3.2V maximum backlight power
(At 3.3V supply can be connected in series for 10 ohm current limiting resistor in series with 100 ohms or 5V
Resistance).
Data port level: theoretically can not let the data port level exceeds 3.3V, if you must
IO connection with 5V microcontroller data bus, as tft internal voltage clamp, with
Can be used, but is not always standard. You can do an experiment to test a sample batch
Made product, in order to improve product stability, better use of low-voltage monolithic
Machine or add a level converter IC.







1.44" 1.44in SPI TFT LCD Module Display + PCB adapter



Description
- Size: 1.44 inch
- Resolution:128 * 128



Instructions
Program default IO connections:
sbit LCD_CS = P0 ^ 0; Chip Select
sbit LCD_RS = P0 ^ 2; data / command switch
sbit LCD_SDA = P1 ^ 5; Data
sbit LCD_SCK = P1 ^ 7; Clock
sbit LCD_REST = P0 ^ 1; Reset



TFT Power: Screen Power is 2.8-3.3V; remember not to use 5V
(Modules with PCB's have inherited 3V regulator IC, you can enter 5V)
backlight power supply (LED pin): 3.2V maximum backlight power
(At 3.3V supply can be connected in series for 10 ohm current limiting resistor in series with 100 ohms or 5V
Resistance).
Data port level: theoretically can not let the data port level exceeds 3.3V, if you must
IO connection with 5V microcontroller data bus, as tft internal voltage clamp, with
Can be used, but is not always standard. You can do an experiment to test a sample batch
Made product, in order to improve product stability, better use of low-voltage monolithic
Machine or add a level converter IC.







1.8" 1.8in SPI TFT LCD Module Display Mega + PCB adapter



Description
- Size: 1.8 inch
- Resolution:128 * 160



Instructions
Program default IO connections:
sbit LCD_CS = P0 ^ 0; Chip Select
sbit LCD_RS = P0 ^ 2; data / command switch
sbit LCD_SDA = P1 ^ 5; Data
sbit LCD_SCK = P1 ^ 7; Clock
sbit LCD_REST = P0 ^ 1; Reset



TFT Power: Screen Power is 2.8-3.3V; remember not to use 5V
(Modules with PCB's have inherited 3V regulator IC, you can enter 5V)
backlight power supply (LED pin): 3.2V maximum backlight power
(At 3.3V supply can be connected in series for 10 ohm current limiting resistor in series with 100 ohms or 5V
Resistance).
Data port level: theoretically can not let the data port level exceeds 3.3V, if you must
IO connection with 5V microcontroller data bus, as tft internal voltage clamp, with
Can be used, but is not always standard. You can do an experiment to test a sample batch
Made product, in order to improve product stability, better use of low-voltage monolithic
Machine or add a level converter IC.







ICSC004A 2.4" TFT LCD Display Module + Touch Screen + PCB adapter SD Card Socket



Ⅰ,Feature
1).The modules use ILI9325 control chips 2.4 inch TFT , It can display greatly that most char symbol .handle convenience.
2)Mdules use parallel port to connect.it sustain 8 bit and 16 bit data pattern.
It also support 3.3 Volt and 5 Volt power. Support backlight. The digital interface all is 3.3Volt to be drivered. The modules adopt XPT2046 touch chip,and it will be more precise.



Ⅱ,applied range
It can be used to all kinds of MCU to display .
Interface Simple , Control easy!



Ⅲ,relative parameters
Interface:
LED-A Backlight
DBx data bit x
VCC 5V or 3.3V power
GND Ground
CS chip select
REST reset
RS mode switch
WR write enabled
