Specifications
1,Original New LCD 16x22,16*2 Dots
3,Made in China
4,Fast Shipping
5,CE&RoHS

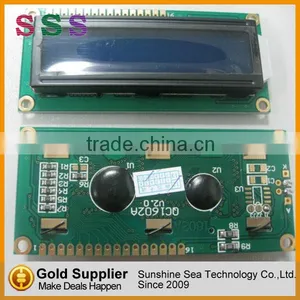

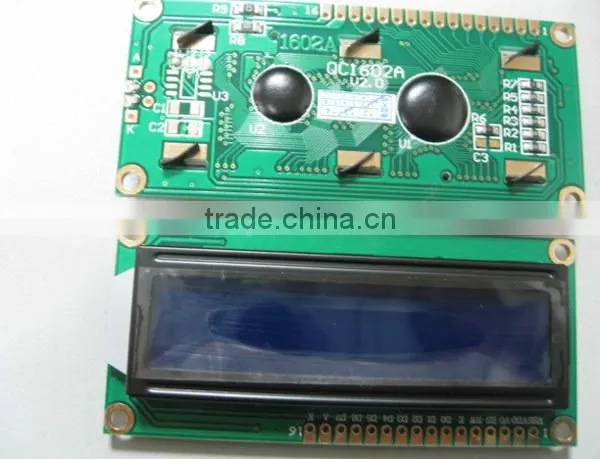

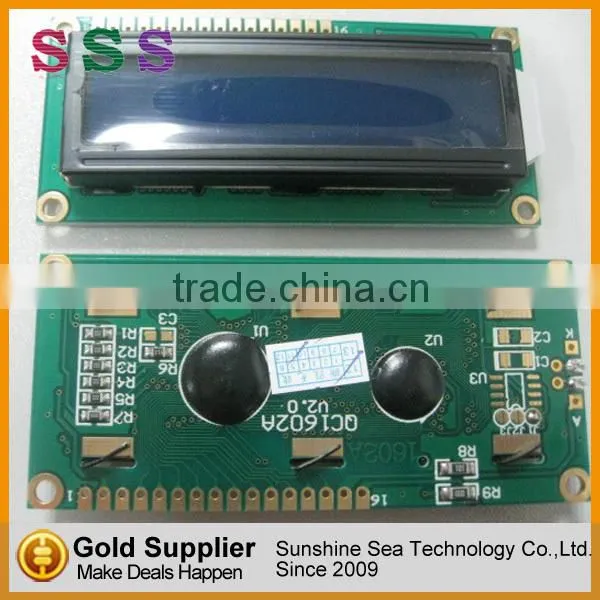

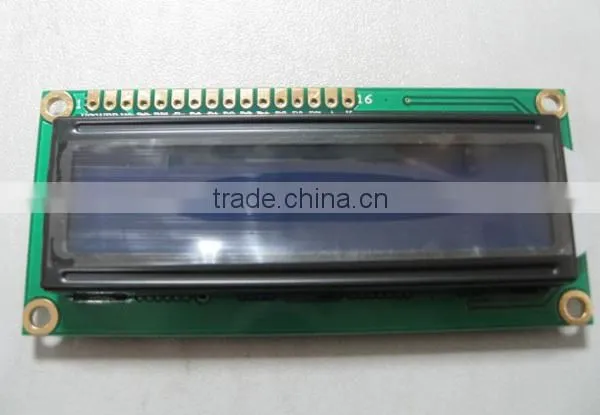

Built-in industry standard HD44780 equivalent LCD controller display 1602 module lcd 16x2
What is Specifications of our lcd 16x2 ?
LCD display module with blue blacklight
Wide viewing angle and high contrast
Built-in industry standard HD44780 equivalent LCD controller
Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices
LCM type: Characters
Can display 2-lines X 16-characters
Operate with 5V DC
Module dimension: 80mm x 36mm x 12mm
Viewing area size: 64.5mm x 16mm
1602 with standard 16 pin connector including:
Pin 1: VSS is in power
Pin 2: VDD 3.3V positive power supply connection
Pin 3: V0 LCD contrast adjustment for the client then the contrast is the weakest power ground power the highest contrast the contrast is too high will have a "ghosting" when used with a 10K potentiometer to adjust contrast
Pin 4: RS for the register_selection the_selection of data register high low _select the instruction register.
Pin 5: R / W to read_and write signal lines when high read low write. When the RS_and RW can be written together for the low level command or display the address when RS is high low RW can be read busy signal when RS is low for the high RW can write data.
Pin 6: E side to side to make when E Duanyou high jump into a low the LCD module execute the command.
Pin 7 to 14: D0 ~ D7 for the 8-bit bidirectional data line.
Pin 15 feet: Backlight positive supply
Pin 16 feet: Backlight negative supply
What is Advantages of our lcd 16x2 ?
- Competitive factory price.
- Professional purchase team to serve you.
- All our productions are checked by QC before shipping.
What is Refund & Replacement of our lcd 16x2 ?
- We provide 30 days warranty for brand new goods only.
- If the item you purchase from us are not same as we promised, that is they don't work to manufacturers specifications, model mistake, simply return them to us for replacement or refund.
- If the items is defective, pls notify us within 3 working days on receiving it.
- Our sales representative will be here always serve for you.
