Help CenterPet Lamination Film for Business Card; All Size Lamination Pouch Film
Related Products
-
20micro Good Offer Pet Thermal Lamination Film; a4 Lamination Pouch Film; Pet Metalized FilmUS$ 3.05 - 3.15MOQ: 1 Ton -
17micro Pengsheng Eva Coated Pet Lamination Film; All Size Lamination Pouch FilmUS$ 3.05 - 3.15MOQ: 1 Ton
-
15micro Pet Protective Film in Thermal in Thermal Lamination Level; Pet Silver Film for Lamination and PrintingUS$ 3.05 - 3.15MOQ: 1 Ton
-
16micro Pet Protective Film in Thermal in Thermal Lamination Level; Pet Silver Film for Lamination and PrintingUS$ 3.05 - 3.15MOQ: 1 Ton
-
17micro Pet Protective Film in Thermal in Thermal Lamination Level; Pet Silver Film for Lamination and PrintingUS$ 3.05 - 3.15MOQ: 1 Ton
Specifications
18micro eva coated pet lamination film1.15mic-30mic;eva+pet;glossy&matte
2.heat sealed;corona treated
3.T:10um pet 8um eva
pet lamination film for business card; all size lamination pouch film

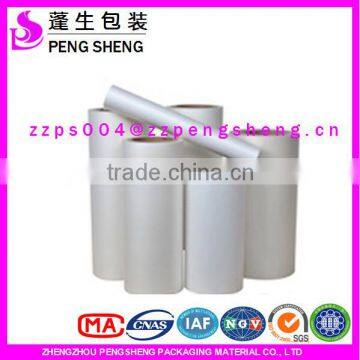

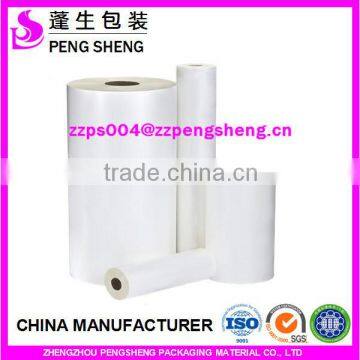

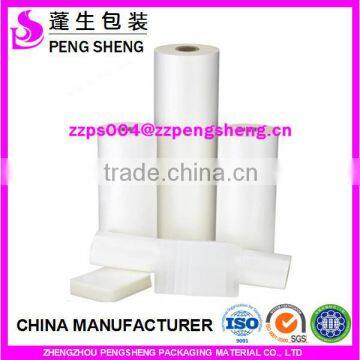

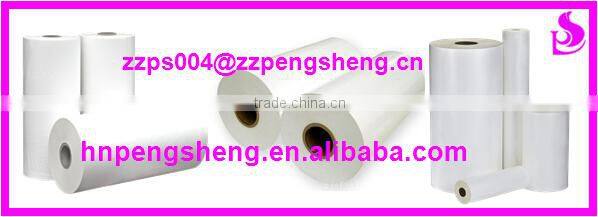

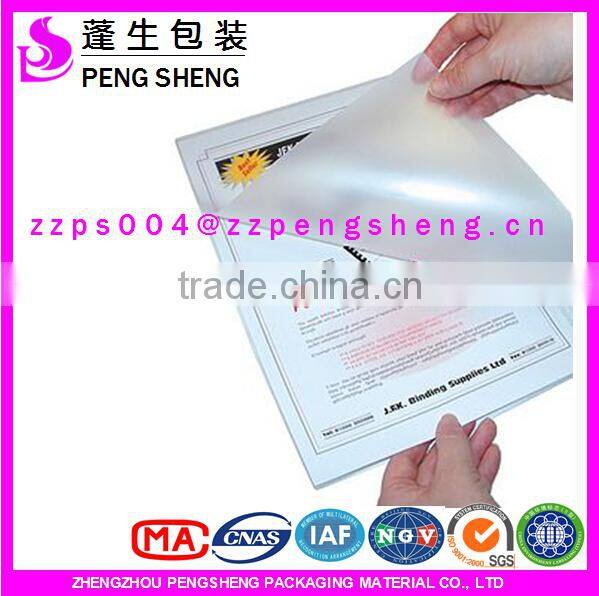

Product photo - PET lamination film for business card
Specification
Laminating film is the composite film with substrate and the thermal adhesive layer coated together to laminate with the desired material (such as print).
Laminating film thickness measured in MIL or MICRON ,affects cost, rigidity, optical clarity and UV inhibition.
Typically laminates are used on both front or back of image for protection, strength and to add rigidity.
The user should also bear in mind that images have a tendency to curl towards the thicker side ,
if laminates are not balanced in thickness.
| Item | PET laminating film | |||||
|
Thickness (mic) |
Base | 8/10/1/15/18 | 40-200 | |||
| EVA | 8-12 | 20-100 | ||||
| Total | 16-30 | 40-300 | ||||
| Finish type | Gloss & Matte | Gloss & Matte | ||||
| Width(mm) | Customized 100-1900 | A0,A1,A2 A3,A4,A5 | Customized | |||
| Length(m) | Customized 200-7000 | |||||
| Corona Side | A | B | AB(Both sides) | |||
| Paper Core | 25.4mm(1'')/76mm(3'')/155mm(6'') | |||||
Features
1) Environmental friendly: non-hazardous to health and safe to use as no toxic gases or volatile content is emitted. Safe in laminating process as no solvent based adhesive is used.
2) High function: compared with other solvent lamination, our film is better in clarity and bonding. It’s preventing lamination from being pressed, bubbled and shredding off easily. Matt thermal lamination film is good for spot UV and hot stamping.
3) Easy handling: it is easy to operate once the required temperature is met and no special technique is required.
4) Efficient and energy-saving: Production is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
5) Adaptable to different kinds of machines: This is recommended to be used in dry laminator. Small adjustments need to be made to the machine if the film is used in wet laminator.
6) Strong ability of absorbing power: unlike solvent adhesive, our film is suitable for lamination even with powdery paper

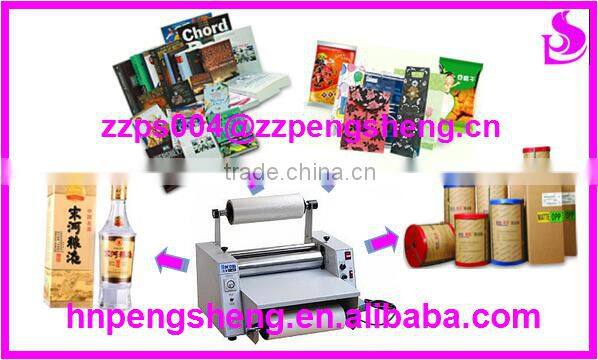

Applications
Covers
Books, magazines, periodicals, brochure, etc.
Packaging
Crates or boxes for liquor, food and beverage, medicine, cosmetics and other daily consumer products and bags etc.
Trade-shows
Advertisement products, Photos, documents, billboards, certificate,etc.
1. Adjust roller pressure and temperature according to different types of paper and ink.
2. When using the film for the first time or changing the usual size, a small trial volume before starting massive lamination is proposed.
3. Normal process temperature is 90C-105C (203F - 221F), roller pressure and temperature vary from different types of paper, ink and machines.
4. Make sure the ink is dry before laminating. It will delaminate when the paper contains too much moisture or powder.
5. Make sure to put the material in place with low temperature and dry.
6. The following situation will affect the final quality of the film during lamination.
a. Using metal ink
b. Ink containing too much wax, dried oil, adhesive, silicon additive and so on.
c. Much too thick ink
d. Ink completely not dried yet.
e. Much too humid paper sheet.
f. Too much powder on the surface
Process Parameter
1. Equipment for laminating film: dry and wet film lamination machines
2. Compound Temperature:
normal: 85-100℃ special: 100-110℃
3. Compound Pressure: 8-18MPa
4. Compound Speed: 8-50m/min
Weight /Measurement
| Model No | 1205 | 1207 | 1208 | 1209 | 1210 | 1211 | 1212 | 1213 | Unit |
| WT/SQ | |||||||||
| Gloss | 64.5 | 57.5 | 54.6 | 51.9 | 49.5 | 47.3 | 45.3 | 44.6 | m2/kg |
| Matte | 0.0155 | 0.0173 | 0.0183 | 0.0192 | 0.0202 | 0.0211 | 0.0221 | 0.0224 | Kg/m2 |
| Model No | 1505 | 150 | 1508 | 1509 | 1510 | 1511 | 1512 | 1513 | Unit |
| WT/SQ | |||||||||
| Gloss | 54.9 | 52.5 | 47.6 | 45.5 | 43.7 | 41.9 | 40.4 | 38.9 | m2/kg |
| Matte | 0.0182 | 0.019 | 0.021 | 0.022 | 0.0229 | 0.0239 | 0.0248 | 0.0257 | Kg/m2 |

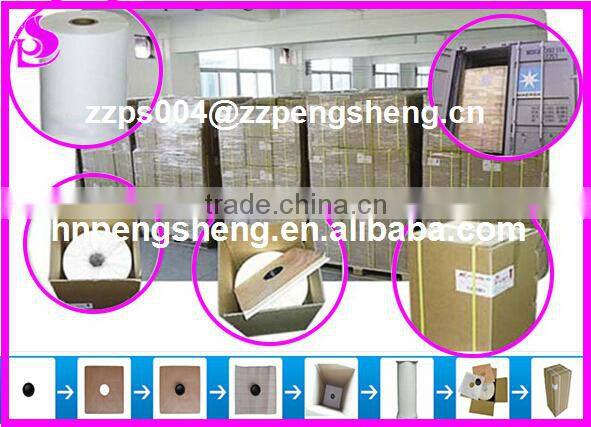

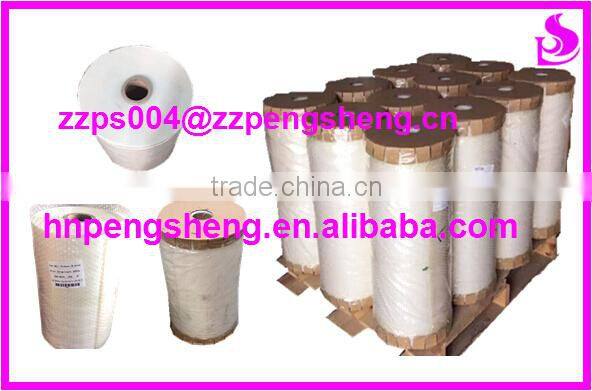

Packaging - PET lamination film
Export Worthy for long distance shipment
*One Roll per carton
*Tens of rolls in a pallet
*10 to 12 pallets loaded into 1*20ft container (appro. 13MTs)
*Or 20 to 22 pallets loaded into a 40ft container (appro. 25MTs)

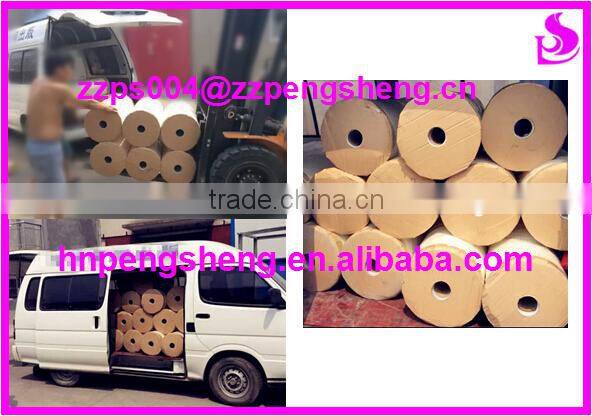

Shipping
| Model of Transport | Advantage | Weakness | Suggestion |
|
Express (Door to Door) |
Fast(3-6days) Door-to-Door Wide Area Coverage |
Restricted Volume & Weight | Small cargo |
| Sea transport (Port to Port) |
Cheapest Volume unlimited |
Long time(15-30days), influenced by climate and port |
bulk cargo loose time |
| Air transport (Airport to Airport) |
Fast(4-5days) Simple packaging |
most expensive restricted volume |
Valuable cargo Urgent demand |

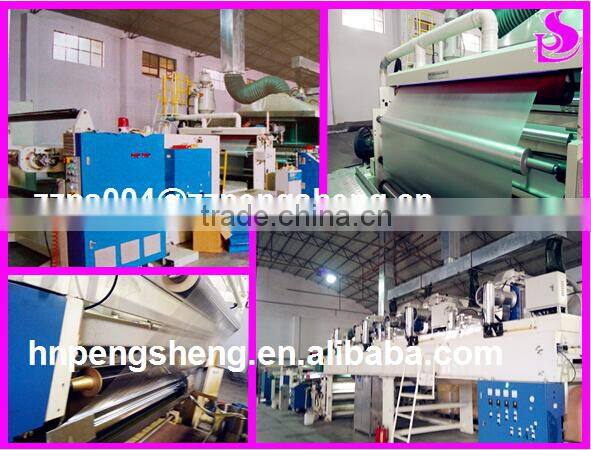

Factory Photos- PET lamination film
1.Q:Why laminating?
A: Traditional lamination has always been associated with mainly to preserve providing a
crystal clear layer of protection and protect the graphics,document,etc from UV fading,
moisture and abrasion. Lamination also protects the image from normal wear caused by
dirt,pollutants, chemicals and nearly all solvents.
Lamination also makes the graphics,documents,photographs ,etc more colorfast,
prolongs outdoor life, brightens colors and adds contrast, especially on electrostatic
output.
In addition lamination allows for the ability to print a reverse reading image on paper , then
transfer that image to film using a thermal laminator. In all laminating provides choices of
use and finishes, regardless of output method.
2.Q:Are you a manufacturer or trading company?
A: Manufacturer,welcome to our factory in Zhengzhou,Henan province of China.

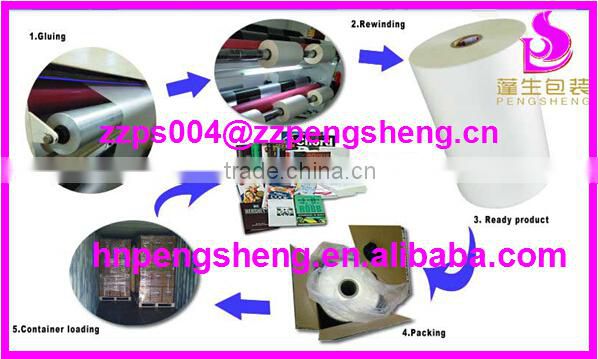

3.Q:How about the production process of the PET lamination film?
A:Please kindly check the photo as below:
4.Q:How about the lead time and payment terms?
A:Please kindly find the answers as below:
Lead time
MP stage: 30 working days after deposit
Samples: 7days
Payment Term
T/T, L/C,Western Union
Shipment port
Qingdao,Shanghai,Shenzhen,etc.
MOQ: 2mt
5.Q: How could I get samples?
A: You can get our free samples for test,and with collected courier cost in 3 ways as following:
1.RPI (remote pick-up) service upon UPS,DHL,FEDEX,TNT,etc
2.Note your collection account No.of UPS,DHL,FEDEX,TNT,etc
3.Pre-pay and deliver via our cooperative express company to get a low discount.
6.Q: How about the capacity?
A:2 coating lines
20 days delivery of a 40 feet container
350MTs (kilograms) per month
Thickness from 15micron (10BOPP+5EVA) to 32micron (18BOPP+14EVA)
Roll width from 180mm to 1680mm
Roll length from 2000m to 6000m
Reel inner diameter at 25.4mm (1 inch) or 76mm (3 inch)
Reel Outer Diameter: 240mm to 380mm (upon reel length and width)
Laminating films are available in gloss,matt,anti-static, UV(Ultra Violet) protection, Hologram,
cold(self seal-using pressure sensitive adhesive),sticky back,etc with different colors and
textured and colored patterns. Some films(Cold,Mounting) have adhesive(PSA) on the outside
which allows the graphic to be face or back mounted at the point of use offering enhanced
UV durability.
Here are some hot sale thermal lamination films as following:
a. Bopp/Pet thermal lamination film b. Bopp/Pet metalized thermal laminating film
ft touch thermal lamination film d.(transparent)holographic thermal lamination film

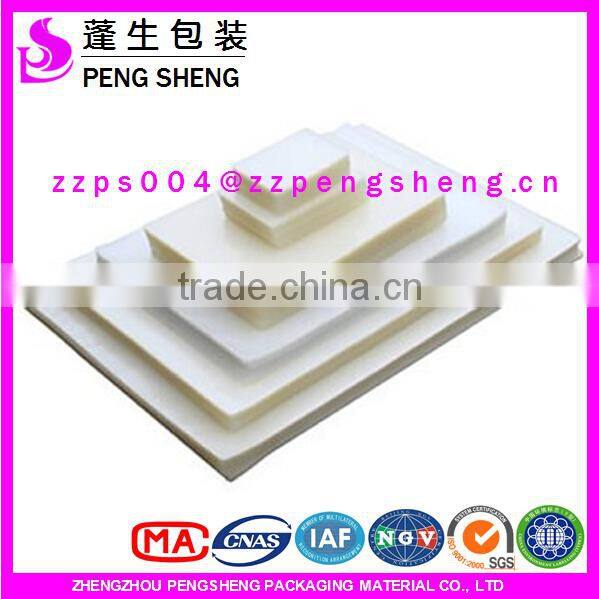

e. Pet thermal lamination pouch film
