Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Fabric Cutting Machine > Flat Knitting Machine

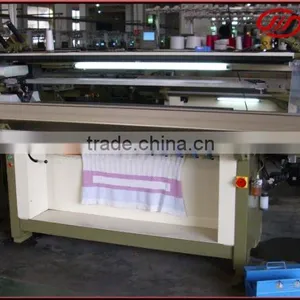

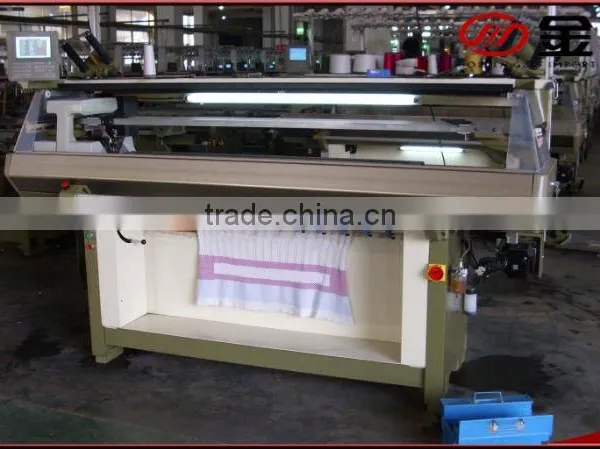

Flat Knitting Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Model Number:

522-F

Machine Type:

Braiding Machine

Contact Supplier Request Quote Chat Now

Shaoxing Golden Gulf Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai Port China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Model Number 522-F

Machine Type Braiding Machine

Product Chenille

Material Capabilities Yarn

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Gauge	5g,6g,7g,8g,9g,10g,12g,14g,3.5.7 multi gauge
Knitting width	48,52(inches)
Knitting speed	Controlled by servo motor with 32 sections speed optional,max 1.2m/s.Serve motor
	will use the precise backward control and link up the high speed operation ability
	of digital signal processor(DSP),which control IGBT to produce the accurate
	output electric current.
Knitting system	Single carriage with single system;single carriage with double systems;single
Knitting system	carriage with triple system.
Knitting function	Knit,miss,tuck,transfer,pointel,intarsia,jacquard,hide,or apparent
Knitting function	shaping and other regular or irregular patterns.
Racking	Controlled by servo motor racking within 2 inches and with fine adjusting function.
Detect alarm system	The safty alarm detect device,achieve to up down and left-right swing function,
	which surmount the normal flat knitting machine with detect simply left-right
	swing only and great increase the detect protect functions.
Encode	Advanced encoder adopted.
Transfer cam	The tansfer cam is compose designed,single or double or three cam system all
	can transfer an other cam system for knitting which will achieve to high
	production efficency knit.
Stitch density	Controlled by stepping motor,32 section stitch selectable adjustable scope
	supported by subdivision technology 0-650,the stitch of the knitwear can
	be accurately controlled.
Sinker system	Controlled by stepping motor,adjustable to different knitwear, have various
Sinker system	results of shaping and patterns.
Take down roller	Programmed instruction controlled by stepping motor,32 levelsselection
Take down roller	adjustable area is:0-100.
Yarn carrier	2*8 yarn carriers on each side of 4guide rails, shiftable on any needle position.
Protection	The machine will automatically alarm if yarn-breaking,knots,floating,yarn rewind,
	end of knitting,fail of racking,needle breakage and error programming occour,also
	set up the safty autolock protect device.
Controller	1,Screen:Adopt LCD touch screen and figure interfaces,input device:USB storage 1G,
	A great amount of design files can be stored at the same time and they can be
	fetched out for use at any time as per production requirement.
	2,Monitoring menu:each kind of operating parameter can be shown and it can be
	adjust at any time when the machine is running,making convenerences for
	operations as much as possible.
	3,Free design system is visual and easy to understand and software upgrade free
	of charge.
	4,Multi language version:there are Chinese,English etc.language version,the other
	language version set up shall accordingto customers requirement.
Power	Single-phase 220V and 3-phase 380V, adopt advanced CMO technology,having
Power	memorizing function at power shock stop.
