metalized film for laminating & PET matalized thermal lamination film &metalized film for printing &packaging
M ade in china chinese supply
Metalized thermal film is a special laminating film,used for printing,ornament and staionery industry process for company logos and advertising etc.It can be laminated with dry laminator.
Specification
1)Thickness:22u,24u,27u,30u,38u,
2)Width:200mm--1800mm
3)Lengh:200--9000m
4)paper core(inner dia):76mm(3'')
5)Corona treament side:both side
Usage

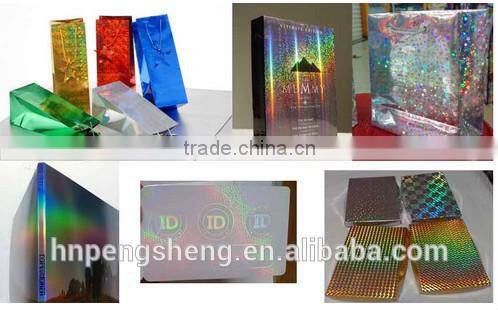

This product has the same effect as the aluminum paper when it laminates on papers. It is used to laminate on the daily consumable packing box, such as the box of grocery, medicine ,wine, etc.
temperature:90~120°C
Advantage
1) Environmental friendly: non-hazardous to health and safe to use as no toxic gases or volatile content is emitted. Safe in laminating process as no solvent based adhesive is used.
2) High function: compared with other solvent lamination, our film is better in clarity and bonding. It’s preventing lamination from being pressed, bubbled and shredding off easily. Matt thermal lamination film is good for spot UV and hot stamping.
3) Easy handling: it is easy to operate once the required temperature is met and no special technique is required.
4) Efficient and energy-saving: Production is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
metallized thermal lamination film
Specification | |
Type |
metallized thermal lamination film |
Size |
custom as your requirement |
Thickness |
tell me your requirement and we can sugest for you |
Use |
food |
Material |
Food grade material |
Color |
9 colors as your requirement |
Certificate |
the third party certificate TUV |
Packing |
3000m/roll metallized thermal lamination film with paper core, in neutral carton box with PE liner. |
Origine |
zhenzghouCity, henanProvince, China. |
Loading port |
Qingdao/shanghai port. |
Shipment |
LCL or FCL by sea, by aircraft, by ocean-air combined, by air courier DHL or Fedex. |
Production period |
15-20 days after receiving deposit and the printing is confirmed. The production period will be longer if the order quantity is larger. |
Payment term |
100% plate cost + 30% goods value T/T in advance, the rest T/T againest copies of shipping documents |
Trade term |
EXW, FOB, CNF, CIF, DDU |
Method of checking the coating success or not by using the iodine. The detail steps as following:
1) At the starting, middle process, or end of the coating process, one can schedule downtime to check the coating film at the end of the tunnel exit, using the swap with iodine to check in horizontal and vertical direction at least 3 lines. If the color shown is uniformly, no bubble, no spots, no missing coating. This shows the coating layer is in good quality.
2) After the iodine dried, one can use single side tape to stick on the coating layer, and take off the tape quickly, if the coating layer has no fall indicates that the fastness of the coating is qualified. One can try 2-3 times in different places.
3) After coated, please make sure curing the film at least 24 hours under the temperature of 45~50°C, in order to make sure the film can get enough water resistance and fastness.
Note: The curing time is related to the base film specification. If the roll diameter is over 500mm, it should prolong the curing time, and adjust it according to the circumstance after the test.
4)Lamination: The adhesive should use two-component fat-soluble polyurethane compound. The adhesive amount suggest control at 3g/m2 and make sure curing the film at least 24 hours under the temperature of 45~50°C(this also depends on the adhesive process requirments)
5) Printing, it can only use PET ink.
