Auto cruise surveillance camera 1920X960P 4x zoom camera with battery powered

Camera

Model No.

 KI-IPC960S04-6

Description

1.4 inch MINI speed dome camera

2.2.0 Mega Pixel (1920X960P)

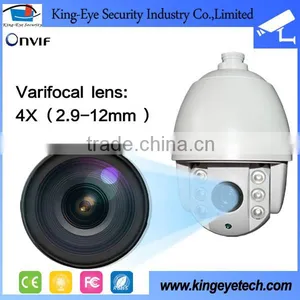

3.Vari focal lens: 4X (2.9-12mm )

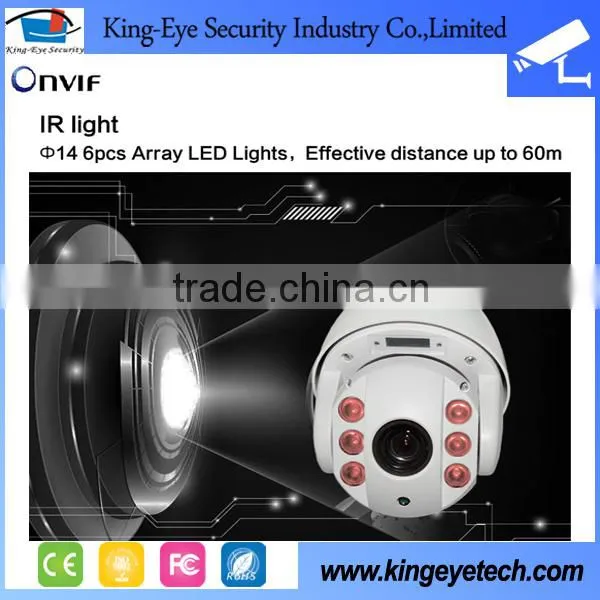

4.14 6pcs Array LED Lights,Effective distance up to 60m

5.Rotation Range:Horizontal 0°~355° unlimited rotation; Vertical 0°~90°

6.Rotation Speed:Horizontal 0.1°~40°/S,Vertical 0.1°-20°/S

7.Supports 355 degree automatic scanning

8.Support two points between cruise

9.Support preset point

10.Rotational speed can be adjusted

11.Day/Night Mode Auto-Switch

12.IP66 Waterproof Metal Casing

13.DC 12V/2A Power Supply

 Image Sensor

 1/3″CMOS

 Resolution

 1920×960

 Pixel

 2.0 MP

Video Format

25 fps@1280*960; 25 fps@1280*720;25fps@640*480;25fps@288*192

 Min Illumination

 0Lux(IR ON)

 AWB

 Support

 Gain Control

 Support

3D DNR

 Support

 Compression

 H.264/JPEG

 Frame Rate

 25fps

 Bit Rate

 307Kbps~8Mbps

 Focus Control

 Auto/Manual

 Focus Length

Optical Zoom 4X

Function

 WB

 Auto

 3D DNR

 Support

 OSD

 Support

 Network TimeSyn

 Support

 Log Control

  view,print and backup logs

 QR Code

 Support generate device qr code
 for scanning to add

 Restart

 Scheduled restart

 ROI

 Support

 Defog

 Support

 Privacy Mask

 Support 4 rectangle areas

 Motion Detection

 Support

 Video Adjust

 Supports contrast, brightness,
 saturation, sharpness adjustment

 Scene

 Support Indoor,Outdoor,Default,
 Soft scenes

 Day & Night

 IR cut filter with auto switch,
 Support Color to Black

 Electronic screen

 Support Exposure time setting,
 solve view electronic screen problem

 Image setting

 Mirror,Rotate

 IP Self-Adaption

 Support

 Alarm

 E-mail,Client

 Remote Operation

 System,Stream,User,Network Management,PTZ function

 Power Off Memory

 Support

 Safety

 safety hinge,20cm

PTZ

 Rotation Angle

 Horizon:0°~355°;Vertical:0°~90°

 Horizontal speed

 0°~ 40°/S

 Vertical speed

 0°~ 20°/S

 Manual speed

High,Middle,Low

 Preset

 128

 Auto Cruise

 8 line

 Keep Watch

 Support

 Limit scan

 Support

Infrared

 Infrared Lamp

 6 Lattice Lamps

 IR distance

 40m~60m

 Wavelength

 850nm

Network

 Ethernet

 1 RJ45  Antenna 10M/100M Adaptive Ethernet Interface

 Stream

 Tri-stream

 Protocol

 HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE

 ONVIF

 Support

 Transmission

 Internal Cloud see Protocol

 Browser

 IE8+,Chrome18+,Firefox5.0+,Safari,5.02+ browsers

 Connection

 32CH

 User Permission

 Up to 13 users,Three level authority:
 Administrator,User,Visitor

General

 Power Supply

 DC 12V 2A

 Temperature

 -20℃-+60℃

 Working Humidity

 <95%

 Waterproof

 IP66

 power

 Day:<10W     Night:<15W

 Material

 Aluminum

 Size(W×D×H)(mm)

 205*205*190mm

 Weight(kg)

1.8kg

 Installation

 Rack/Ceil Mounting
