HD IP Zoom Camera Module Style and Perfect image performance ptz Camera Module

Camera Parameter

Model No.

KI-IPC1080H18-9

KI-IPC1080H22-9

KI-IPC1080H36-9

Optical Zoom

18X, auto focus

22X, auto focus

36X, auto focus

CPU

TI   368

Image Sensor

1/2.5" Progressive Scan CMOS

Effective Pixel

2.0 Mega Pixel(1920X1080)

Signal system

PAL/NTSC

Horizontal Resolution

 ≥1000 TV lines

Video Format

25 fps/1920*1080;;25fps/640*480;25fps/288*192

Min. illumination

0.5 Lux/F1.6(color);0.09 Lux/1.6(black & white);IR mode: OLux

Focus Length

4.5 ~85mm

Visual Angle

55.4º ~2.9º

Day & Night mode

  Auto IR-CUT

PTZ Parameter

Rotation Speed

Horizontal 0.1°~250°/S;Vertical 0.1°-130°/S

Preset Speed

Horizontal 250°/S; Vertical 130°/S

Rotation Range

Horizontal 0°~360° unlimited rotation; Vertical 0°~90° auto 180° reversal

A-B two points scan

Random setting

A-B two points scan speed

Fast speed/Middle speed/Low speed, speed adjustable

Cruise No.

8 groups(8 presets each group)

Presets

128

Alarm Input

  1ch

Alarm Output

  1ch

Power Memory

  Support

Guard Position

  Support

IR light

IR lights No.

D=22, 9pcs Array LED Lights,Effective distance up to 100m

Auto Control IR light

  Auto IR-cut as per camera’s focus

Video

Audio

Alarm

Video Compression Format

  H .264.; MPEG4

Video Stream

  Main Stream:1080P,Sub-stream:D1,CIF

Image Size

  1920*1080

    Audio Baud Rate

  64K bps

Voice Intercom

  Support

Alarm

  1ch input,1ch output(optional)

Network Code

User Management

  Max. Support 10 users

Network Protocol

  TCP/IP,HTTP,DDNS,PPOE,NIP,FTP,RTSP,RTP

Access Protocol

  Onvif Standard

Network interface

  1ch 10/100 Base T Ethernet,RJ45 interface

Remote Function

  Support remote and remote upgrade

Web Service

  Built-in Web server Support IE

Network Bandwidth

  64 kbps-12Wbps

Specification

Product Size

7inch

Shell

  Aluminum Alloy

Bracket

  Aluminum Alloy

power supply

DC12V5A (American /europe/Britain)

Power

40W(without heater)/70W(with heater)

Working Temperature

-25°C~70°C(without heater)/-50°C~70°C(with heater)

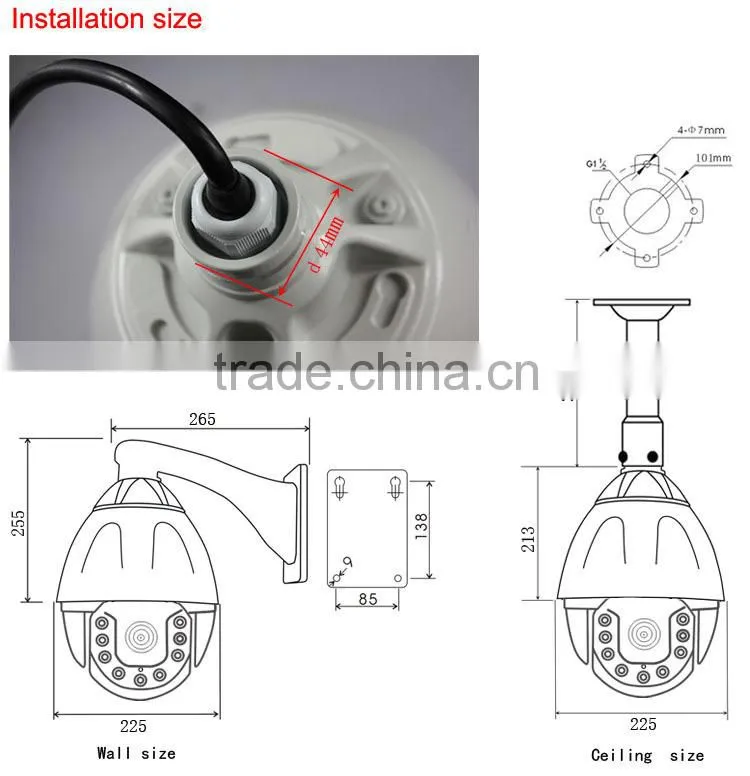

Install Method

Wall and Ceiling ( standard is wall )

Packing

Size

295mm×295mm×410mm

Weight

6.0Kg

Size (Two package to one carton)

610mm×315mm×430mm

Weight (Two package to one carton)

15.0Kg
