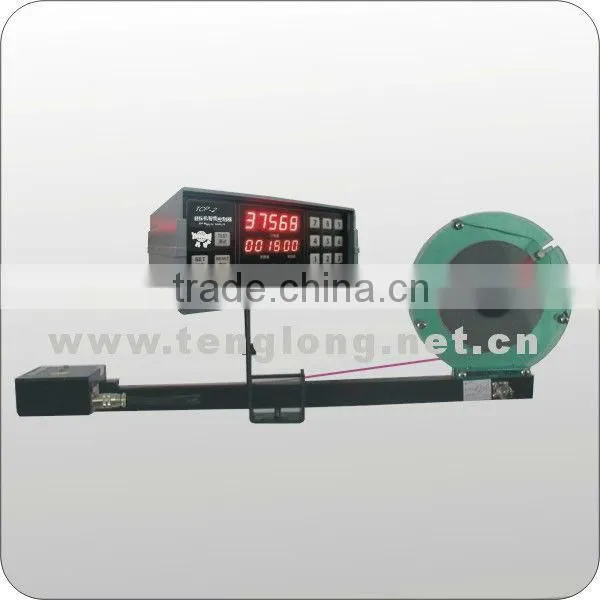

TCP-2 Paper Tab Inserter Auto Insert With Auto Counting & Lable Inserter for Paper Cutting Machine and Paper Making Machine

Specifications

TCP-2 tab inserted marker adopts swithing power to regulate voltage
2 no adherent output
3 double row LED tube display

TCP-2 tab inserted marker is base on the TCP-1 , add some new function : Panel data operation , Pause count , Text deduction , this machine  apply to printing machine, Die-cutting machine, Transverse cutting machine, Papermaking machines



Main parameters:

1 rated power pressure :AC 110~220V 50/60HZ

2  working range of pressure :85~110% of rated voltage

3 working temperature:-10~+45°c

4 MAX counting frequency : 5 papers/second

5 power consumption :AC 240V 50HZ  ≤10W

6 width of paper :12 mm

7 this marker adopts swithing power to regulate voltage ,no adenerent point output ,the quantity of paper can be set randomly ,the length of paper can be adjusted freely

8 this product is applied to offset printing press,die cutting machinery ,total auto-paste and transverse cutting machine
