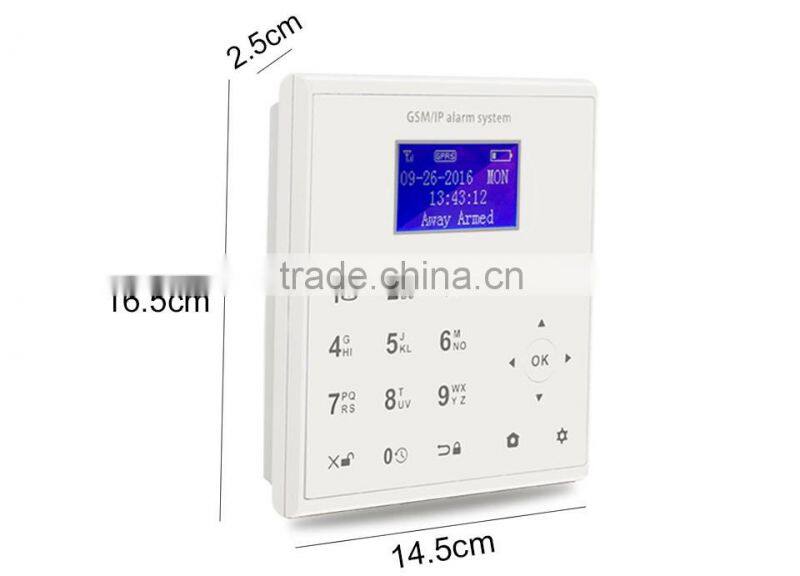

Intelligent House Systems,supports 1 Group of Admin ID 433mhz Alarm Panel With Keypad

Product Description:

1.Adopt low power consumption of WIFI/GSM module, which is perfectly compatible with Cloud server and push server of system.

2.Internet plus IP alarm system with word menu on the LCD display.

3.Be compatible to WIFI/GPRS/GSM/SMS network. U8 will be priority to work under WIFI network, switch to GPRS/GSM then if WIFI is failure.

4.39 wireless/wire zones for various of accessories, for example, wireless door sensor, wireless keypad, wireless strobe siren, wireless socket, wireless relay etc.

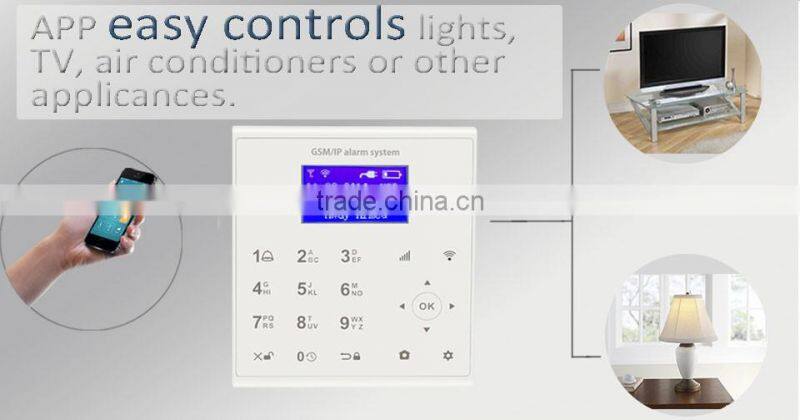

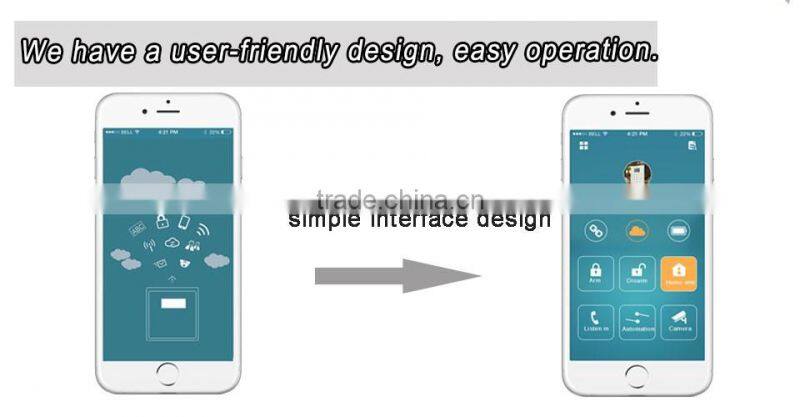

5.Android + IOS APP application easily control .

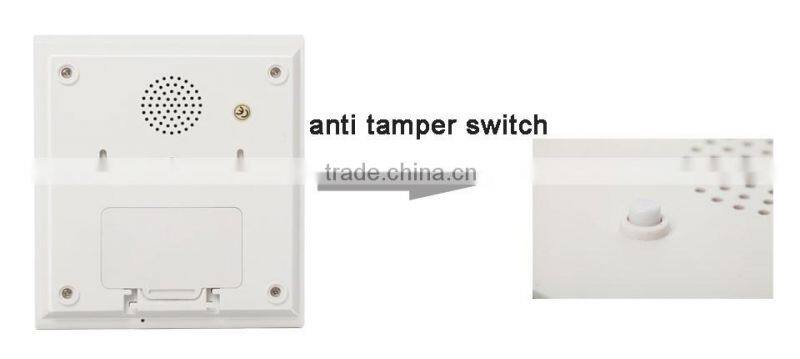

6.Notification push to application of smart phone within 1 second for burglarproof alarm, anti tamper alarm, low voltage alarm etc .

7.Alarm+IP camera integrated in one app. User can check remotely what happened real time via IP camera after get the alarm push/call/SMS quickly by click MONITOR button on the app.

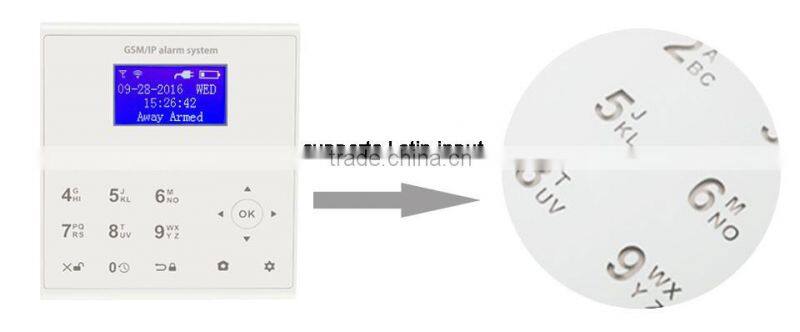

8.Supports Latin ABC input on the keypad for zone name .

9.Program zone attribution remotely on app directly, for example, siren on/off, zone name, bypass or not, delay setting etc anytime anywhere(only for admin ID).

10.Supports 1 group of admin ID and 10 groups of User ID with different authority.

11.Advanced one-key Smartlink for WIFI network .

Specification:

1. Power supply: input AC=100 ~ 240V, output DC =5V
2. Static current: <50mA (when not in charging , excluding wired detectors)
3. Alarm current: <120mA (excluding wired siren)
4. GSM transmission power: 2W
5. WIFI frequency: 2.4G, built-in wireless internet protocol IEEE802.11b/g and TCP/IP protocol stack
6. WIFI receiving sensitivity: -86dbm; Emitting power: 18dbm

7. GSM frequency: 850/900/1800/1900
8.GPRS class 12, max 85.6kbps
9. Backup li-lion battery: 3.7V/1250MA/H;
     Standby: 8 hours (transmitting data to server);

     Charge: 5 hours full for 0.5C
10. Wireless receiving distance: > 100 meters
11. Wireless transmission distance: > 100 meters
12. Work condition: Temp -10 º C ~ 70 º C , RH 5% ~ 95%

How does it work?

U8 is totally based on GPRS/GSM/WIFI technology, after insert a valid SIM card, the system will prior to connect local WIFI network, and then start GPRS network if WIFI failure within 10 seconds.The entire system is ran by your phone (including normal GSM cellphone and smart phone with app). The app features with away arming/stay arming/Disarming, and phone number setting, Zone attribution...etc. Simply place your motion sensor interior your home, and door/window sensors for main entry points, and activate the system, when any one of sensor is triggered, it will set off alarm. The alarm system will not only push the alarm message to the application of smartphone, but also make voice phone call and SMS as per your needs. 100% make sure user will be notified in time.

Standard Kit Content:
Alarm host X1
Wireless door sensor KI-D001 X1
Wireless PIR sensor KI-G003 X1
Remote controls KI-M113 X2
AC power X1

Attention:
1) Please make sure your WIFI frequency 2.4G
2) Please be sure to program the system at the place with strong WIFI signal
3) Please be sure there is no other interference to effect setting of the system
4) It is difficult for the system to be compatible with all brands of mobile phone all over theworld, Main brands like iPhone, SUMSUNG, HUAWEI, XIAOMI, OPPO will be recommended by manufacturer.

We will offer you the best product and service as you like.

King-Eye Security Industry Co. Limited

Choose King-Eye,choose security!
