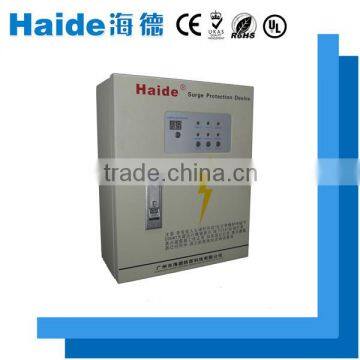

380V 160KA Low Voltage Surge Protector Power Price Trade Assurance

Name: 380V 160KA Low Voltage Surge Protector Power Price Trade Assurance
Brand: Haide
Availability: InStock

FOB Price

US$ 5 - 10 / Set

10 Sets(Min. Order)

Port guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Haide
Model Number	HD-D380B-XL160

Product Description

380V 160KA low voltage surge protector power price trade assurance

surge protector power price trade assurance

Electric surge protector of low-voltage distribution system, which is in the form of a box, is designed according to IEC standard. It has invalidation detection indication, lightning stroke numbering display, overflowing and overheating protection, and powerful discharge capacity of lightning current. It’s applicable to the protection of buildings’ general supply system against lightning, as well as Grade 1 and 2 lightning protection of the general supply building, machine room, plant and enterprise to make sure the safe operation of electronic equipment and other utilization equipment. This lightning arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later.

Model	HD-D380B-XL160	HD-D380B-XL100	HD-D380B-XL80	HD-D380B-XL60
Nominal working voltage Un	380V	380V	380V	380V
Maximum continuous working voltage Uc	385V	385V	385V	385V
Nominal discharge current In(8/20 us)	80KA	50KA	40KA	30KA
Maximum discharging current Imax(8/20 us)	160KA	100KA	80KA	60KA
Voltage protection level Up	3.5KV	2.5KV	2.3KV	2KV
Prepositive overflowing protection	125A	125A	100A	63A
Response time Ta	≤25ns
Operating temperature range Tup	-40℃ to +80 ℃
Working order indication	green light means normal working,red light is fault indication
Section of minimum installed conductor	10mm² multi-folded wire
Lightning stroke register	available
Protection grade	IP20
External dimension	300400130mm
Sheathing material	mellozing
Mode of connection	parallel connection

1.. ISO9001&CE certificate &Test Report

2..Any inquiries will be replied within 24 hours.

3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/

4..High quality, fashion designs, reasonable &competitive price, fast lead time.

5..OEM available.

6..After-Sale Service:

Provide technical advice and maintenance knowledge and installation guide.
Customers response time for one working time.
All the products provide five year commitment to service.
All the products are accompanied by China Pacific property insurance co;ltd.

7..Fast delivery

Sample order in stock, and 7-15 days for full production.

8..Terms of payment

You can pay for the order via: T/T, Western Union, PayPal &Money Gram.

9..Shipping

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.

10.Quality warranty

one year replacement, five years warranty.

surge protector power price trade assurance
