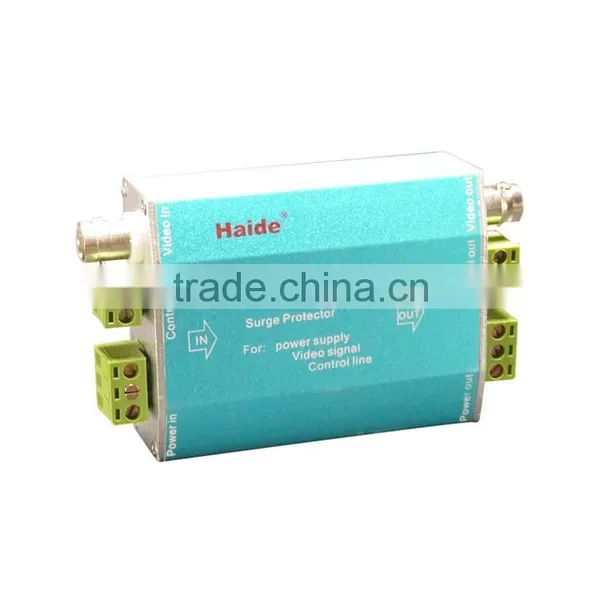

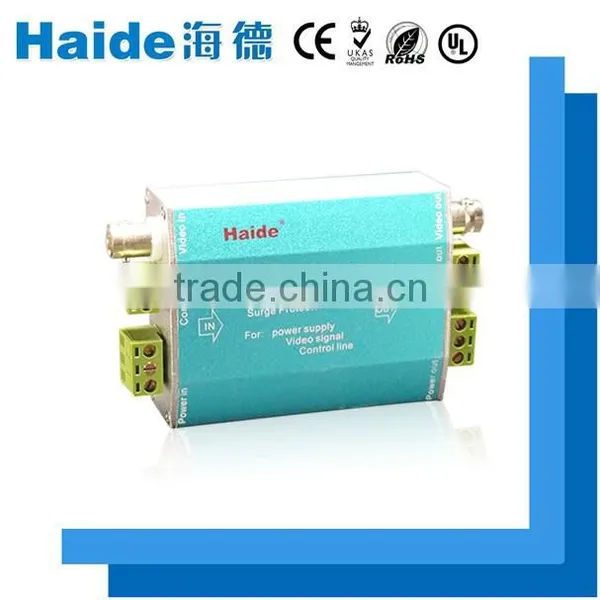

3 in 1 PVC ip cctv lightning arrester for trade assurance
This product is applicable to the lightning and electric surge protection of the video signal circuit, control wiring and power circuit of monitor camera. It can combine the above mentioned lightning protection function into one. Its housing adopts integrated aluminum-alloy structure with small volume and ultra low residual pressure output. Design of this product considers fully that the electrode capacitance and distributed capacitance would lessen data signaling with small insertion loss, which can satisfy the requirement of video signal transmission, and can response to the transient overvoltage quickly.
| Model | HD-CCTV-PVC/A/B/C | ||||||
| Protective link | video line | power circuit | control wiring | ||||
| Nominal working voltage Un | ±5v | 12v | 24v | 220v | 6.8v | 12v | 24v |
| Maximum continuous working voltage Uc | ±6.8v | 16v | 32v | 275v | 7.5v | 15v | 32v |
| Nominal discharge current In(8/20us) | 2.5KA/5KA/1.5KA(core/shielding) | 5KA | 2.5KA/5KA/1.5KA | ||||
| 5KA (shielding/ground) | |||||||
| Maximum discharge current Imax(8/20us) | 5KA/10KA/3KA(core/shielding) | 10KA | 5KA | 10KA | 3KA | ||
| 10KA(shielding/ground) | |||||||
| 1KA/us Voltage protection level up | 15V(core/shielding) | 16V | 25V | 42V | |||
| 90V(shielding/ground) | 16V | 25V | 42V | ||||
| Limiting voltage Up | 150V | 200V | 600V | ||||
| Rated load current IL | 1.5A/3A | 1A | |||||
| Drain current IA | ≤5uA | ||||||
| Response time Ta | ≤1ns | ≤25ns | 1ns | ||||
| Insertion loss | ≤0.2dB | ≤0.2dB | |||||
| Insertion resistance | ≤4Ω | ≤4Ω | |||||
| Band width FG | 40MHZ | 40MHZ | |||||
| Message transmission rate Vs | 2MHZ | ||||||
| Protection grade | IP30 | ||||||
| Operating tenperature range Tup | -40°c to +80°c | ||||||
| External dimension | 108x63.5x28mm | ||||||
| Sheathing material | Shielding metallic aluminium | ||||||
| Interface mode | BNC | Connecting terminal | Connecting terminal | ||||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:https://img13.fr-trading.com/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
