Multi function 220V surge protector power strip trade assurance

Name: Multi function 220V surge protector power strip trade assurance
Brand: Haide
Price: USD $10 - 16 / Set

FOB Price

USD $10 - $16 / Set

10 Sets(Min.Order)

Supply Ability 10000 Set / Sets per Month
Port guangzhou
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Guangdong, China

Brand Name:

Haide

Model Number:

HD-DCZ/TTN

Product Description

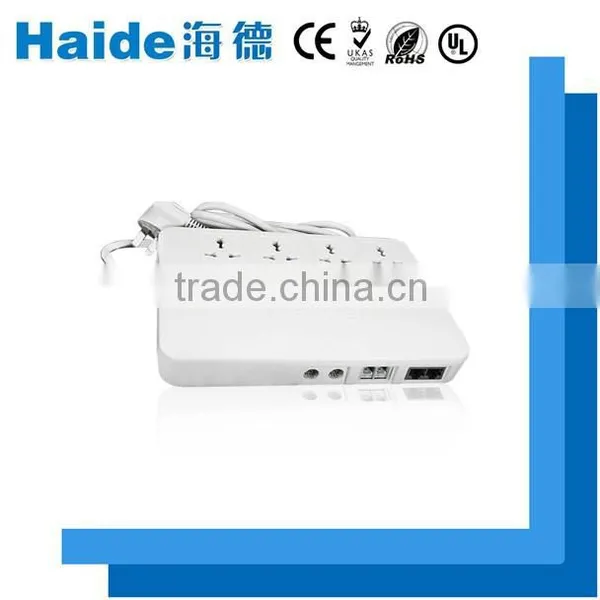

Multi function 220V surge protector power strip trade assurance

surge protector power strip trade assurance

This series of product is applicable to the single-phase power line lightning and surge protection for the fine,universal sockets suitable for a variety of shape design of the power plug, is especially suitable for household electrical equipment simple lightning protection,automatic protection device,fault automatically off the grid,thereby protection the electronic equipment is working properly,can match network , telephone or television function,and with the work status indication lamp.

	HD-DCZ/TTN
Model	power supply lightning protection	network lightning protection	telephone lightning protection	television lightning protection
Nominal working voltage Un	220V	5V	180V
Maximum continuous working voltage Uc	275V	6.8V	200V
Nominal discharge current In(8/20us)	5KA	2.5KA	2.5KA	2.5KA
Maximum discharging current Imax(8/20us)	10KA	5KA	5KA	5KA
1 KV/υs Voltage protection level Up		(X-X)≤33V	(X-X)≤220V	400V
1 KV/υs Voltage protection level Up		(X-X)≤33V	(X-X)≤220V
Voltage protection level Up	700V
Maximum intensity of backup fuse	10A
Insertion resistance		≤1Ω	≤4Ω
Insertion loss		≤0.2dB	≤0.2dB	≤0.2dB
Number of guard wire		1,2,3,6 wire	2,3 wire
Message transmission rate Vs		100Mbps
Bandwidth			2MHZ	860MHZ
Response time Ta	≤25ns	1ns	1ns	25ns
Operating temperature range Tup	-40°c to +80°c
Working order indication	Green light means normal working,red light is fault indication
Protection grade	IP20
External dimension	160X230X42mm
Sheathing material	flame retardant thermoplastic material
Mode of connection	universal jack	RJ45	RJ11	CATV/F

1.. ISO9001&CE certificate &Test Report

2..Any inquiries will be replied within 24 hours.

3..Professional manufacture. Welcome to our website:http://gzhaidefanglei.cn.china.cn/

4..High quality, fashion designs, reasonable &competitive price, fast lead time.

5..OEM available.

6..After-Sale Service:

Provide technical advice and maintenance knowledge and installation guide.
Customers response time for one working time.
All the products provide five year commitment to service.
All the products are accompanied by China Pacific property insurance co;ltd.

7..Fast delivery

Sample order in stock, and 7-15 days for full production.

8..Terms of payment

You can pay for the order via: T/T, Western Union, PayPal &Money Gram.

9..Shipping

We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.

10.Quality warranty

one year replacement, five years warranty.

surge protector power strip trade assurance
