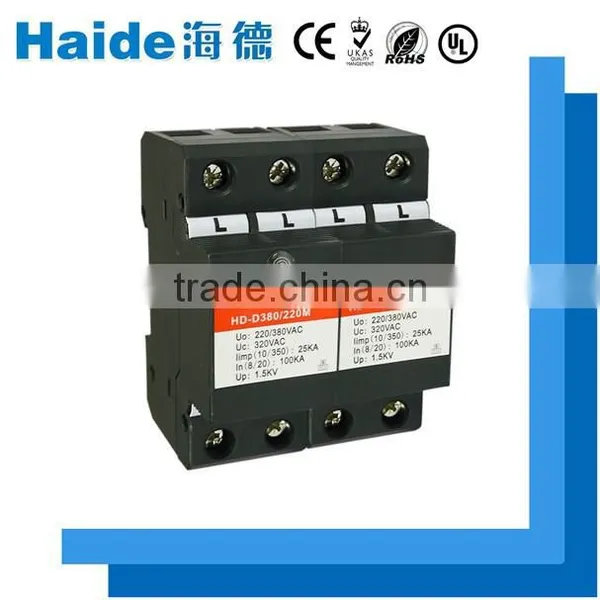

220V 25KA Single Power Surge Protector, Surge Arrester, Thunder Arrester With Price Trade Assurance
US$ 15 - 20
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Haide
Model Number:
HD-D220BCM100
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
220V 80KA Surge Voltage Lightning Protection Products for Trade AssuranceUS$ 100 - 150MOQ: 10 Sets -
220V Surge Protector/Lightning Protector/Surge Protection With Price Trade AssuranceUS$ 100 - 150MOQ: 10 Sets
-
Best Quality 2-in-1 Cctv Surge Protectors With Price Trade AssuranceUS$ 25 - 35MOQ: 10 Sets
-
380V 80KA 1.8KV Power Supply Surge Protector Device for Trade AssuranceUS$ 30 - 50MOQ: 10 Sets
-
200KA 25us 750mm Ese Lightning System With Price Trade AssuranceUS$ 50 - 60MOQ: 10 Sets
Place of Origin
Guangdong, China
Brand Name
Haide
Model Number
HD-D220BCM100
220V 25KA single power surge protector, surge arrester, thunder arrester with price trade assurance
thunder arrester with price trade assurance
Electric surge protector of composite low-voltage distribution system is designed according to IEC standard. It adopts the most advanced technology of preignition clearance and automatic matching of energy and has invalidation detection indication,standard modularization installation, and powerful discharge capacity of lighting current. It's applicable to the protection of buildings' general supply system against lighting.With 35mm standard guide-way, this lighting arrester is very convenient to be maintained. It connects with the circuit in parallel and has no limit to the power of equipment fixed later .
Model |
HD-D220BCM200 |
HD-D220BCM100 |
HD-D220BCM60 |
| Nominal working voltage Un | 220V | 220V | 220V |
| Maximum continuous working voltage Uc | 320VAC | 320VAC | 320VAC |
| Maximum discharging current limp(10/350us) | 50KA | 25KA | 15KA |
| Nominal discharge current In(8/20us) | 200KA | 100KA | 60KA |
| Voltage protection level Up | 2KV | 1.5KV | 1KV |
| Reponse time Ta | ≤25ns |
||
| Operating temperature range Tup | -40°c to +80°c |
||
| section of minimum installed conductor | 10mm² multi-folded wire |
||
| Protection grade | IP20 |
||
| External dimension | 144*90*64mm |
||
| Sheathing material | flame retardant thermoplastic material |
||
| Mode of connection | parallel connection |
||
| Protection mode | 4+0/3+1/1+1/2+0 |
||
| Freewheeling suppression If | 3KA |
||
1.. ISO9001&CE certificate &Test Report
2..Any inquiries will be replied within 24 hours.
3..Professional manufacture. Welcome to our website:https://img13.fr-trading.com/
4..High quality, fashion designs, reasonable &competitive price, fast lead time.
5..OEM available.
6..After-Sale Service:
- Provide technical advice and maintenance knowledge and installation guide.
- Customers response time for one working time.
- All the products provide five year commitment to service.
- All the products are accompanied by China Pacific property insurance co;ltd.
7..Fast delivery
Sample order in stock, and 7-15 days for full production.
8..Terms of payment
You can pay for the order via: T/T, Western Union, PayPal &Money Gram.
9..Shipping
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Port. You also can choose your own shipping forwarder.
10.Quality warranty
one year replacement, five years warranty.
thunder arrester with price trade assurance
