-80 Degree Chest Ultra Low Temperature Freezer ,small Size 90L Ult Freezer

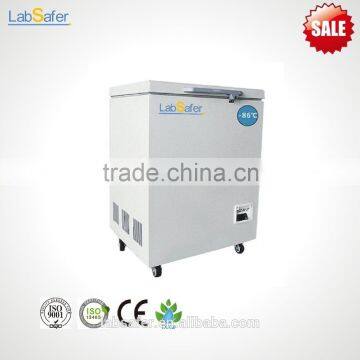

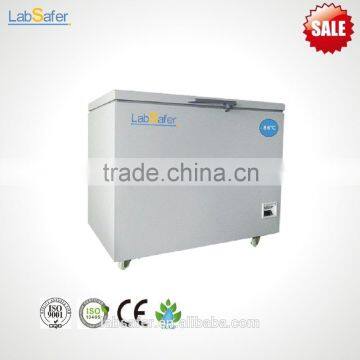

-80 Degree Chest Ultra Low Temperature Freezer ,small Size 90L Ult Freezer photo-1
-80 Degree Chest Ultra Low Temperature Freezer ,small Size 90L Ult Freezer photo-2
-80 Degree Chest Ultra Low Temperature Freezer ,small Size 90L Ult Freezer photo-3
US$ 1,000 - 3,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Labsafer
Model Number:
LSD86W90
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Labsafer
Model Number LSD86W90

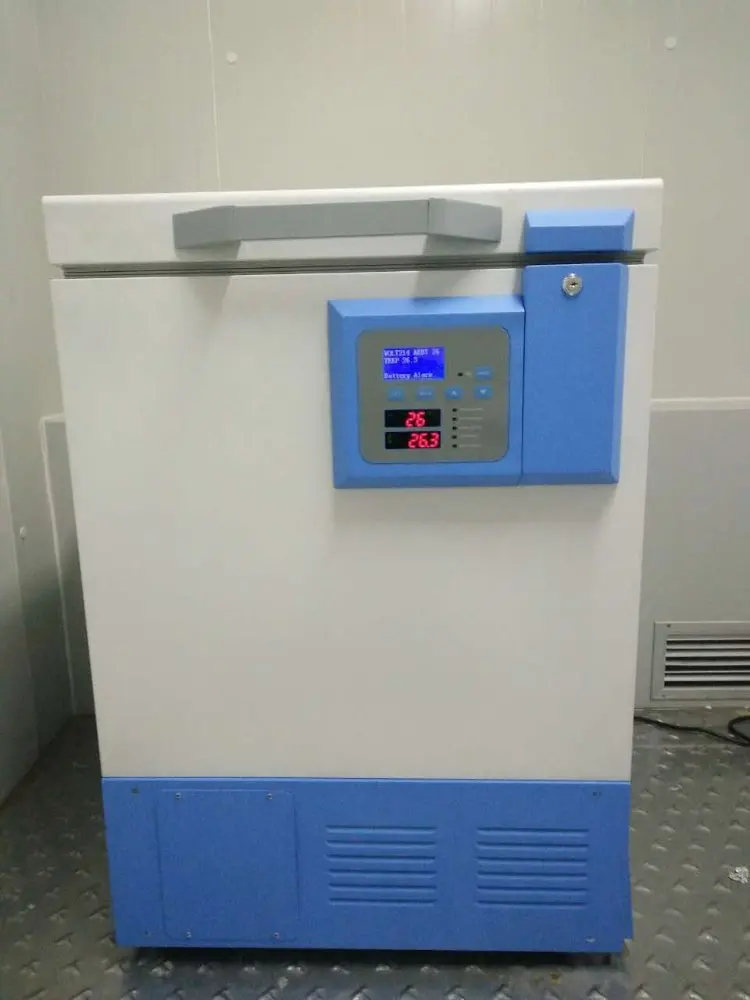

Detailed Images
Product Description

-86 chest ULT Freezer

This product is specially designed and manufactured for long time storage of various

biological products, including viruses, germs, erythrocytes, leucocytes and cutis.

Applications can be found in blood banks, hospitals, epidemic prevention services, and

research institutes, laboratories in electronic and chemical plants, biological engineering

institutes and marine fishery companies.


●Temperature Control

• Microprocessor control, digital display temperature

• Cabinet temperature is adjustable in a range of -40℃~-86℃

●Safety Control System

• Malfunction alarms

• Alarm Indications (Audible and visible): buzzer, flashing light

●Ergonomic Design

• Safety lock to prevent unauthorized access

• Easy to open and close door

• Broad voltage tolerance design, applicable for voltage range 192v~242v

• Equipped with lockable casters, easy to move



Model
LSD86L260
LSD86L450
LSD86L570
LSD86W90



Technical Data
Cabinet type
                               Upright
      Chest
Cooling Type
Direct Cooling
Refrigerant
CFC-Free
Temperature Range (°C)
-40~ -86

    Control
Temperature Control
                                                       Microprocessor
Display
                                                          LCD + Dual LED


  Material
Interior
Powder Coated Galvanized steel
Exterior
Powder Coated Galvanized steel
Shelf
S.S. Shelf
Door
Single solid foamed Door

Electrical Data
Voltage/Frequency
220V~240V/50Hz
220V~240V/50Hz
220V~240V/50Hz
220V~240V/50Hz
Power (W)
700
1000
1200
650







Dimensions
Gross Capacity (L)
260
450
575
90
Net/Gross Weight (kg)
230/270
287/310
300/325
135/160
Internal Dimension
(W/D/H )
440*440*1310 (mm)
580*575*1310 (mm
740*575*1310
(mm)
440*440*470 (mm)
External Dimension
(W/D/H )
700*700*1990 (mm)
840*840*1990 (mm)
1000*840*1990 (mm)
700*700*1020(mm)
Packing Dimension
(W/D/H )
845*845*2060 (mm)
985*985*2060 (mm)
1145*985*2060 (mm)
805*865*1185 (mm)














Functions
High/low Temperature Alarm
Y
Y
Y
Y
High Ambient
Temp Alarm
Y
Y
Y
Y
Remote Alarm Contact
Y
Y
Y
Y
Hot Condenser Alarm
Y
Y
Y
Y
Power Failure
Alarm
Y
Y
Y
Y
High/low Voltage Alarm
Y
Y
Y
Y
Sensor Error
Alarm
Y
Y
Y
Y
Low Battery
Alarm
Y
Y
Y
Y






Accessories
Door Lock
Y
Y
Y
Y
Caster
4
4
4
4
Foot
2
2
2
2
Shelf/Inner Doors
3/4
3/4
3/4
-/1
Remote Alarm Contact
Standard
Standard
Standard
Standard
Test Hole
Standard
Standard
Standard
Standard
Printer/ Chart recorder
Optional
Optional
Optional
Optional
Packing & Delivery

Standard seaworthy package or as your request

Delivery time:14 to 28 days after payment


Our Company

We manufacture cold storage solution equipments including -135 cryo freezer,-86 ult freezer,-60 deep freezer,-40 deep freezer,-25 deep freezer,pharmacy refrigerator,blood bank refrigerator,blast freezer,cold room and supply laboratory analysis solution including tissuelyser,pure water machine,low temperature thermostat,ultrasonic homogenizer,PCR instrument and so on.Most of our products have got ISO, CE certificates.

Factory Pictures
Our Customers

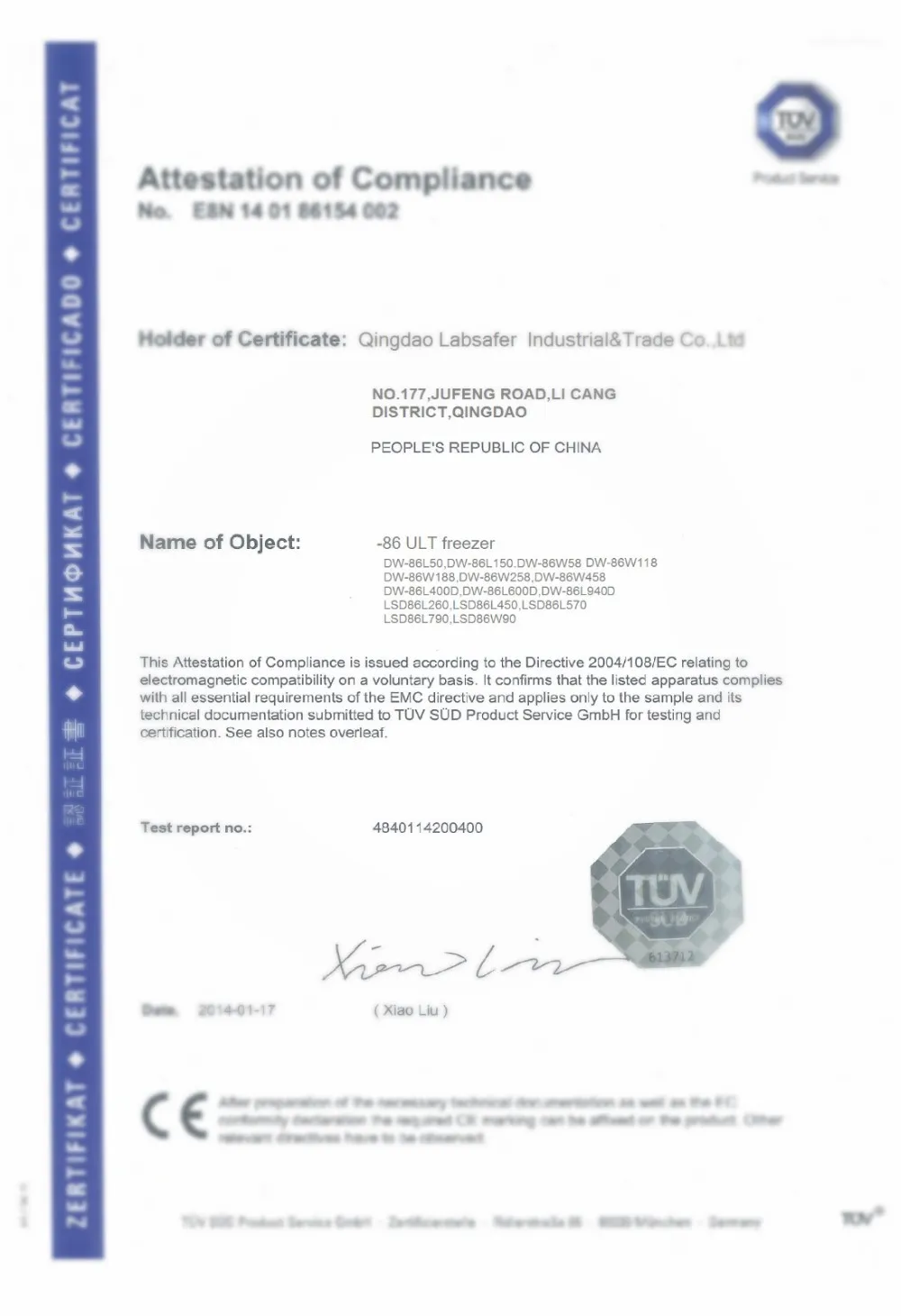

Certifications
