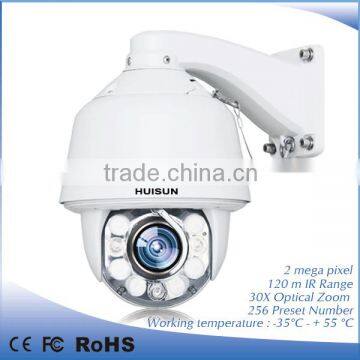

Help Center1080P Full HD Security 20x Optical Zoom ip Ptz Camera,hd Sdi Ptz Camera
Related Products
-
Full HD SDI 1080P 20X Zoom IR IP PTZ Security CCTV Camera With Auto Tracking FunctionUS$ 1 - 200MOQ: 1 Piece -
IR 120M 2.0 Megapixels CMOS Full HD SDI PTZ 1080P Outdoor ip CameraUS$ 1 - 200MOQ: 1 Piece
-
Weatherproof Security Cctv Camera hd Sdi PTZ Camera, 1080P Outdoor ip CameraUS$ 1 - 200MOQ: 1 Piece
-
1/3 CCD Sensor Economical Auto Tracking 1080P Full hd Sdi Ptz ip CameraUS$ 1 - 200MOQ: 1 Piece
-
1080p Full hd Sdi 2 Megapixel Cctv Camera Ptz IP Dome CameraUS$ 1 - 200MOQ: 1 Piece
Main Features:
1. First Patent of Out Cool Air Circulation to Sink the Heat Technology.(Patent No.ZL201220269676.7)
2. First Patent of Video Analysis Light-adjustment Technology.(Patent No.201110089768.7)
3. The Highly power array LEDs with IR range up to 120 meters.
4. Unique composite lens design, to enhance the effect of night vision.
5. Patent external wiper design, to make sure the HD image is clearer all day.(Optional configuration).
6. Built in power with wall mounted bracket design, making it more convenient for maintenance on site.
7. Auto tracking function for unman surveillance.
Technical parameters |
| |
Model | RDA216FNT-WN20IB-W1 | |
Image Sensor | 1/3" CCD | |
Definition | 1080P (2.0 megapixel) | |
Focus length | Optical 20x Zoom | |
communication protocol | PAL/NTSC | |
Day/night mode | Automatic/multicolour/monochroma | |
Focus mode | Automatic/manual | |
S/N | > 50dB | |
BLC | 0 ~ 20 | |
White banlance | Automatic/manual | |
Electronic shutter | Off / On (Max 42dB) | |
AGC | Auto / Shutter PRI / Iris PRI / Manual | |
Min illumination | Color: 0.08Lux(F1.6.30IRE) Black/White: 0.02Lux (F1.6.30IRE) | |
Video input | Connector | |
Infrared lamp | ||
IR distance | 120 meters | |
IR lamp | The OSRAM Arrany LEDs with IR | |
IR power | 18w | |
IR Lens | Combination lens | |
Dome | ||
Pan speed | Pan speed 0.01°/s~360°/s | |
Tilt speed | Tilt speed 0.01°/s~120°/s | |
Rotation | Pan :0~90° continuous rotation tilt:-10~90° auto flip | |
Preset | 256 preset (chinese tilt) | |
Auto scan | 8 groups, settable boundaries and scan speed | |
Auto cruise | 8 groups each with 32 presets with settable time interval | |
Pattern tour | 4 groups each with 500 instructions | |
Video analysis | support | |
Auto track | yes | |
Packaged structure with | no | |
Timing Action | RTC clock design for timing events during the whole week | |
Wiper | yes | |
Power box | optional | |
Heat dispersion | Out Cool Air Circulation to Sink the Heat Technology | |
Supply voltage | DC12V+10% | |
Levels of protection | IP66/Level2 lightness protection,4000V prvent thunderbolt surges design | |
Working temperature | -35℃-+55℃ | |
Working humidity | <90% No condensation | |
Consumption | Max 38W | |
Weight | 4.8kg | |
Accessory | Wall -mount bracket DC 12 Pow | |
