Specifications

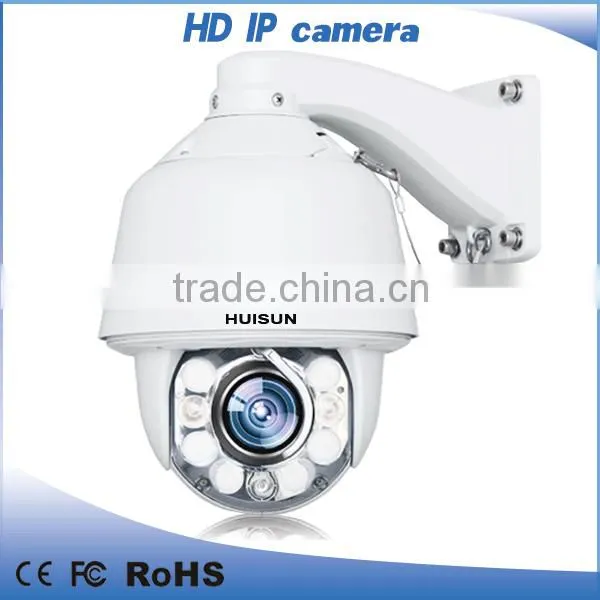

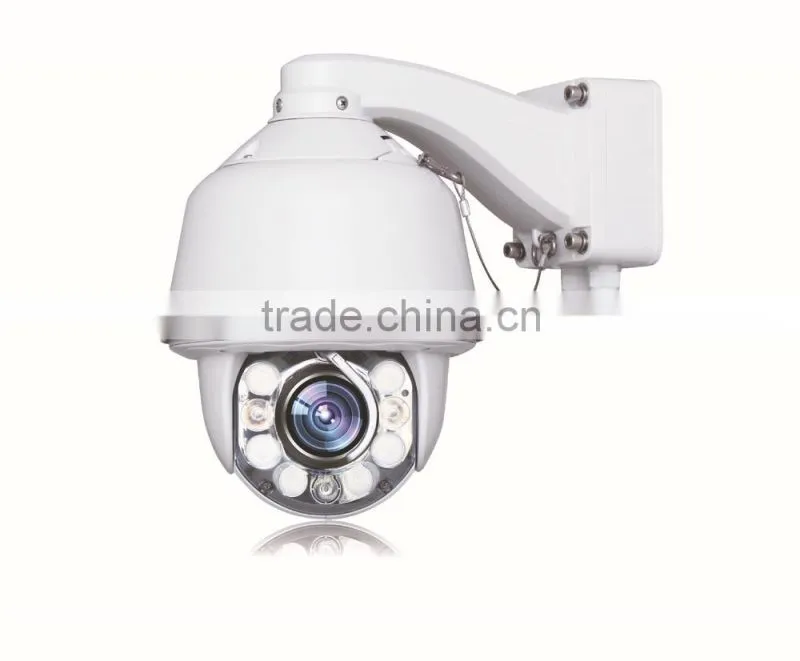

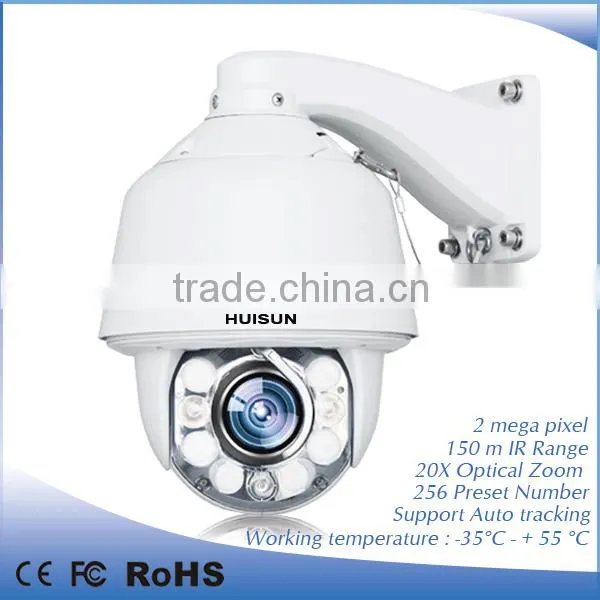

auto tracking p2p Onivif IP Camera 20 optical zoom1 with wiper,IP66 Protection level
2 video Dimming
3 auto tracking
auto tracking p2p Onivif IP Camera 20 optical zoom
Specification:
Product name | auto tracking p2p Onivif IP Camera 20 optical zoom | |
Model | RDA227FIP-G-WN20IA-W1 | |
Sensor | 1/3” Panasonic New Generation CMOS Sensor | |
Effective pixels | 2,476,296 Pixels | |
Focus length | Optical x20, Digital x32 Zoom | |
communication protocol | PAL/NTSC | |
Day/night mode | Automatic/multicolour/monochroma | |
Focus mode | Automatic/manual | |
S/N | > 50dB | |
BLC | 0 ~ 20 | |
White banlance | Automatic/manual | |
Electronic shutter | Off / On (Max 42dB) | |
AGC | Auto / Shutter PRI / Iris PRI / Manual | |
Min illumination | Analog : 700TVL | |
Video input | Connector | |
Infrared lamp | ||
IR distance | 150 meters | |
IR lamp | Eight OSRAM Arrany LEDs with IR | |
IR power | 16 w | |
IR Lens | Combination lens | |
Dome | ||
Pan speed | Pan speed 0.01°/s~360°/s,speed is settable, pan preset speed360°/s | |
Tilt speed | Tilt speed 0.01°/s~360°/s,speed is settable,pan preset speed360°/s | |
Rotation | Pan :0~360° continuous rotation tilt:-10~360° auto flip | |
Preset | 256 preset (chinese tilt) | |
Auto scan | 8 groups, settable boundaries and scan speed | |
Auto cruise | 8 groups each with 32 presets with settable time interval | |
Pattern tour | 4 groups each with 500 instructions | |
Video analysis | support | |
Auto track | yes | |
Packaged structure with | no | |
Timing Action | RTC clock design for timing events during the whole week | |
Wiper | yes | |
Power box | optional | |
Heat dispersion | Out Cool Air Circulation to Sink the Heat Technology | |
Supply voltage | 9V to 15V DC | |
Levels of protection | IP66/Level2 lightness protection,4000w prvent thunderbolt surges design | |
Working temperature | -20 ~ +60 (Humidity : 20%RH ~ 95%RH) | |
Working humidity | <90% No condensation | |
Consumption | Max 35W | |
Weight | 4.8 kg | |
Accessory | Wall -mount bracket DC 12 Power | |
Funcation of hot sale long range water-proof small indoor ip camera
1.First patent of built -in heat sinking technology. (patent no :ZL201220269676.7)
2.First patent of video analysis light- adjustment technology.
3.The high power arrany LEDs with IR range up to 150 meters.
4.Unique composite lens design, to enhance the effect of night vision.
5.OSD menu in Chinese and English system, build-in level 2 font.
6.Built-in 8 cruise tracks and 4 pattern tours.
7.Power supply box outdoor design,making it more convenient for maintenance on site(Optional configuration).
8.IP66/ level 2 lightning protection,4000V prevent thunderbolt surges design.
9.Built in power with wall mounted bracket design, making it more convenient for maintenance on site.
10.Auto tracking funcation for unman surveillance.
Appearance Design Detail :
How to install
Inner detail
Core feature
Shipping of auto tracking p2p Onivif IP Camera 20 optical zoom
1.We have strong cooperation with UPS, DHL, FEDEX, TNT, EMS , China Air Post.
2.You can also choose your own shipping forwarder.
We have rich OEM experience. If you are our customers, you will be offered:
1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
